CTL-Q
6949-02-003

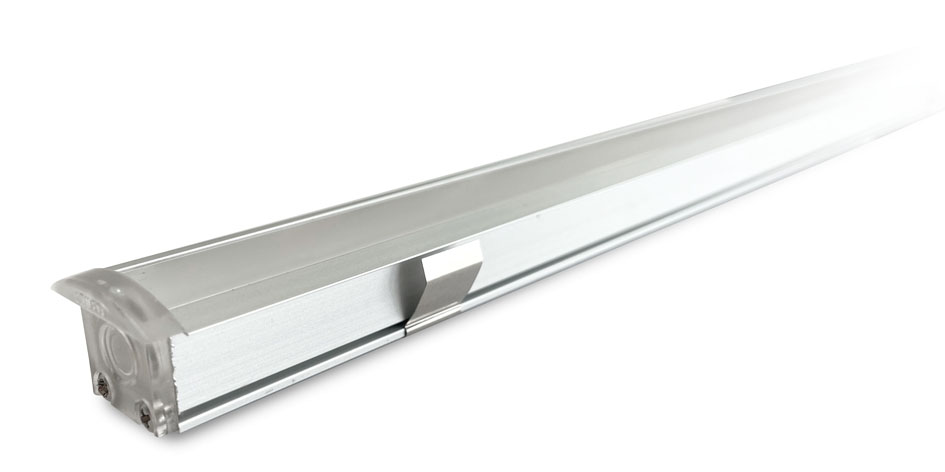

Berth light - Recessed led fixture on/off
Lighting features
| LED Characteristics |
SMD
|
| Number of LEDs |
42
|
| Light Source Lumen |
421 lm
|
| Item Lumen |
300 lm
|
| Light Source Efficiency |
135 lm/W @85°C
|
| Item Efficiency |
97 lm/W @85°C
|
| Color Temperature |
White 3000K
|

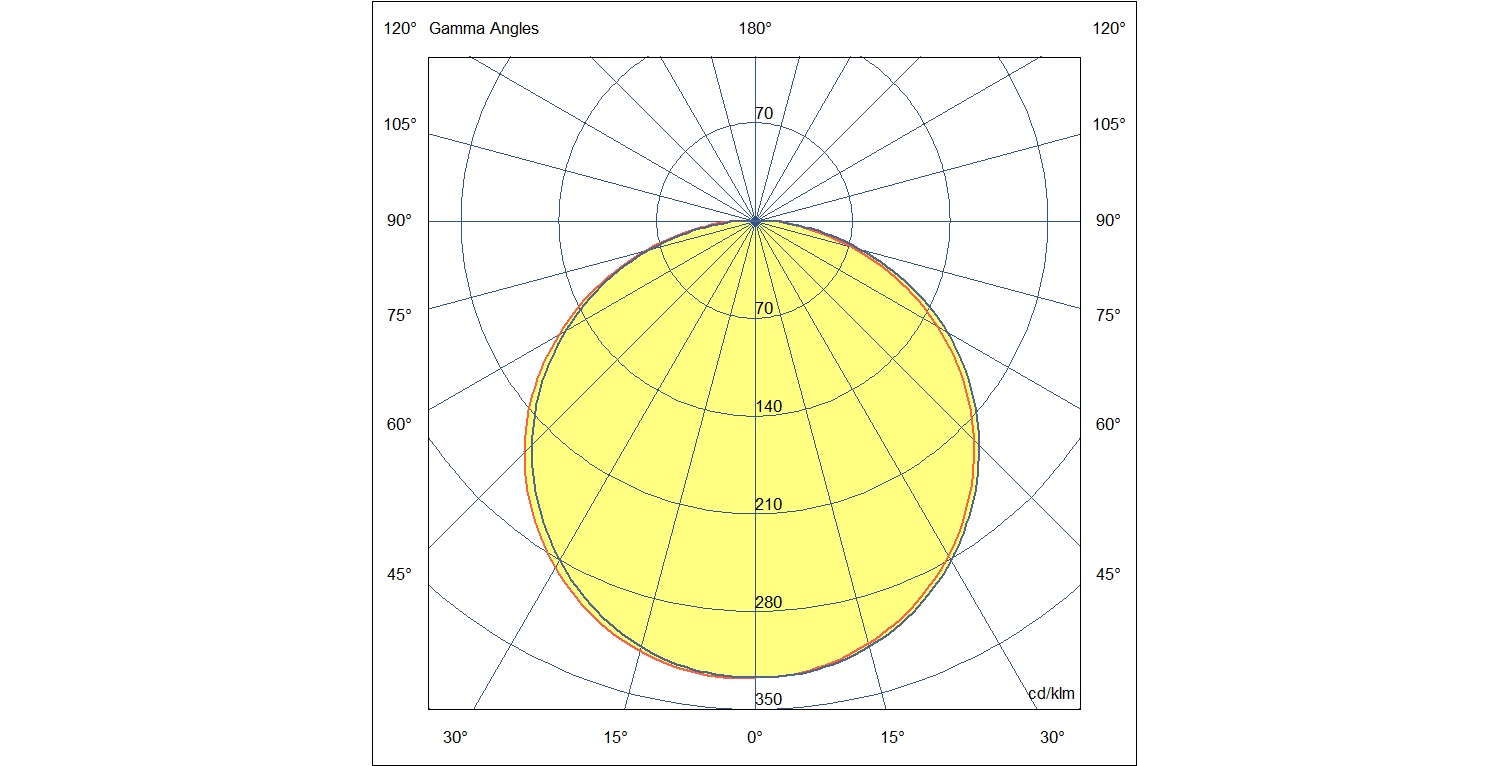

| Optics |
120°
|
| Typical CRI |
85
|
| Minimum CRI |
80
|
| SDCM |
3 STEP
|
| Photobiological Risk |
RG0
|
| Luminous Flux Maintenance |
L70 B50 60000
|
| Energy Efficiency Class |
|
Electrical features
| Input Voltage |
24V DC |
| Total Absorbed Power |
3W |
| Driver |
Not included |
Mechanical features
| Housing material |
Aluminum frame and polycarbonate
|
| IP |
IP40
|
| Diffuser / Protective shield |
Opal policarbonate
|
| Mounting |
Recessed
|
| Cable |
1m - H07RN-F 2x1
|
| Operating ambient temperature |
-25°C / +45°C
|
| Storage ambient temperature |
-25°C / +80°C
|

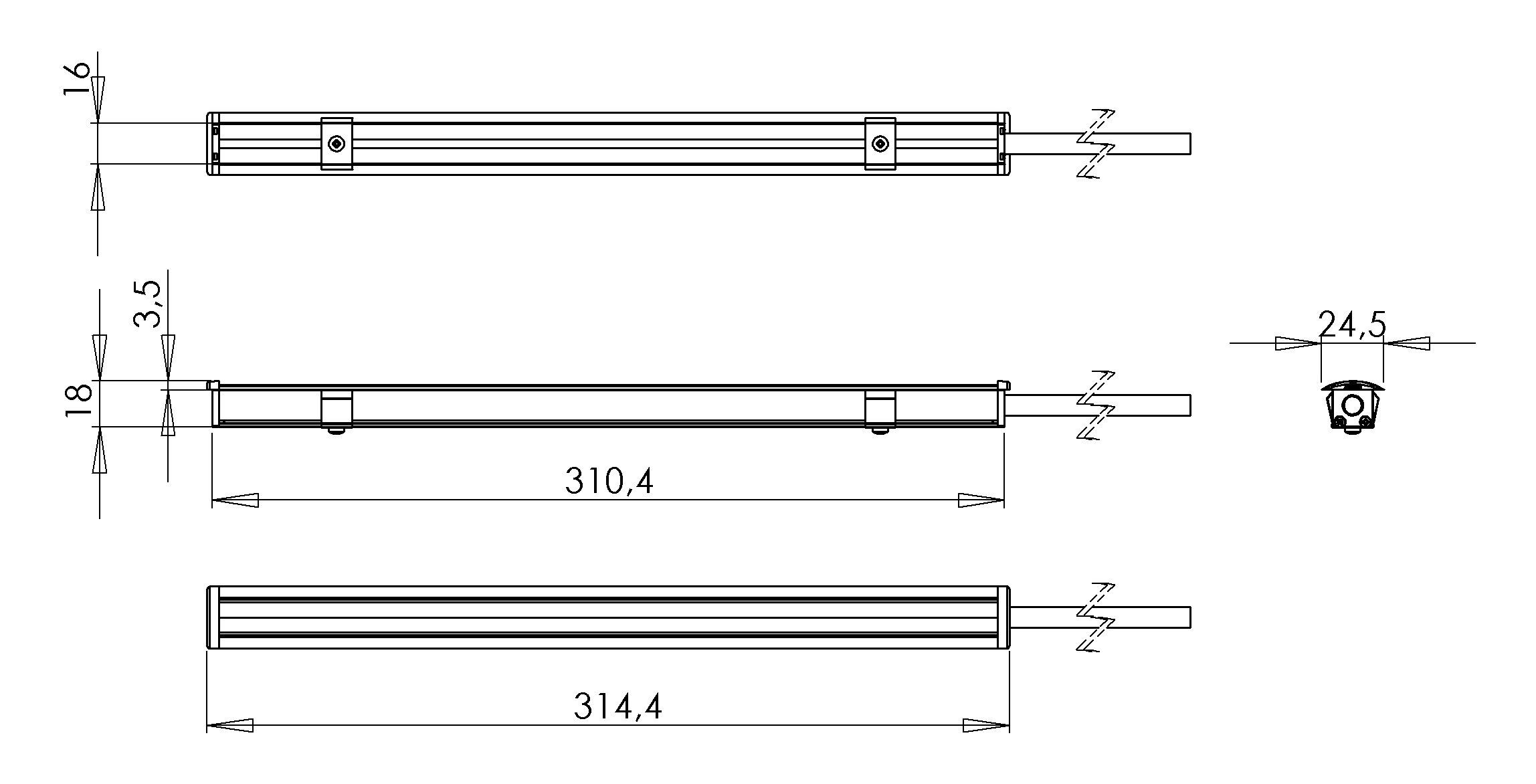

| Item Dimensions |
314,4x18x24,5mm - 0,2kg
|
Others
| Packaging Dimensions |
0.3kg
|
| International standard compliance |
EN 60598-1; EN60598-2-2; EN62471 + IEC TR 62778; EN 55015; EN 61547; EN IEC 63000
|
| Eancode |
8019282520450
|
| Made In |
Italy
|
| Insulation Class |
|
