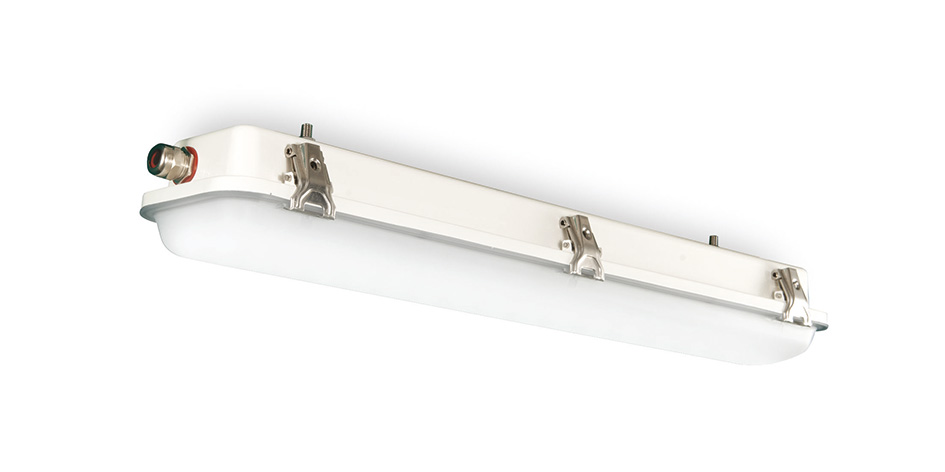

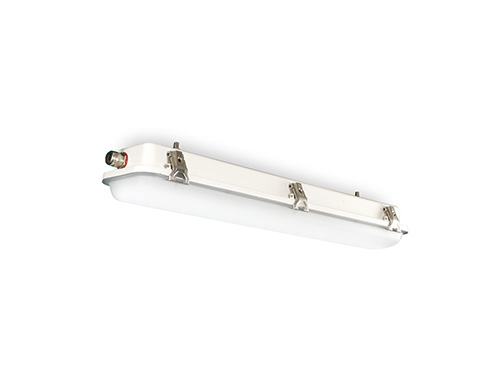

STARFIX 20-630 INOX
6955-54-108
20W 24VDC outdoor open deck LED fixture. Stainless steel AISI 316L housing – length 630 mm
Lighting features
| LED Characteristics | SMD |
| Number of LEDs | 140 |
| Light Source Lumen | 3065 lm |
| Item Lumen | 2624 lm |
| Light Source Efficiency | 163 lm/W @85°C |
| Item Efficiency | 125 lm/W @85°C |
| Color Temperature | White 4000K |

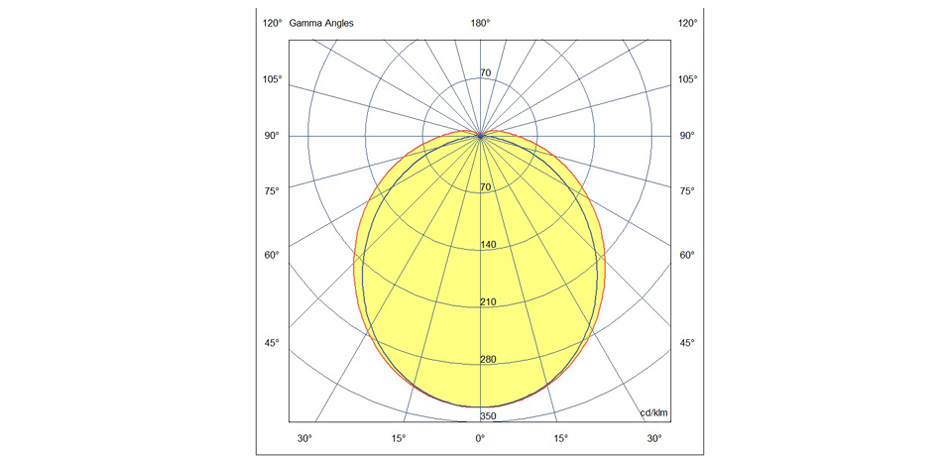

| Optics | 180° |
| Typical CRI | 92 |
| Minimum CRI | 90 |
| SDCM | 3 STEP |
| Photobiological Risk | RG0 |
| Energy Efficiency Class |
|
Electrical features
| Input Voltage | 18/32V DC |
| Total Absorbed Power | 20W |
| Control System | On/Off |
| Driver | Included |
| Power Supply Type | Costant Current |
| Driver Output | 500mA |
| Driver Input | 18-32VDC |
| Through-Wiring | Yes, in the lamp |
Mechanical features
| Housing material | Stainless steel AISI 316L |
| Surface treatment | Polyester Painting |
| Housing color | White RAL 9016 |
| IP | IP66 / IP67 |
| IK | 10 |
| Diffuser / Protective shield | Opal policarbonate flame rating V0 (UL94), UV resistent |
| Cable gland, cable Ø min-max | M20 nickel plated brass - Cable Ø 8-15mm |
| Clips | Yes, Stainless steel AISI 316SS |
| Mounting | M8 treaded pin with nut on preinstalled bushing, all stainles steel AISI 316L |
| Operating ambient temperature | -25°C / +55°C |
| Storage ambient temperature | -25°C / +70°C |

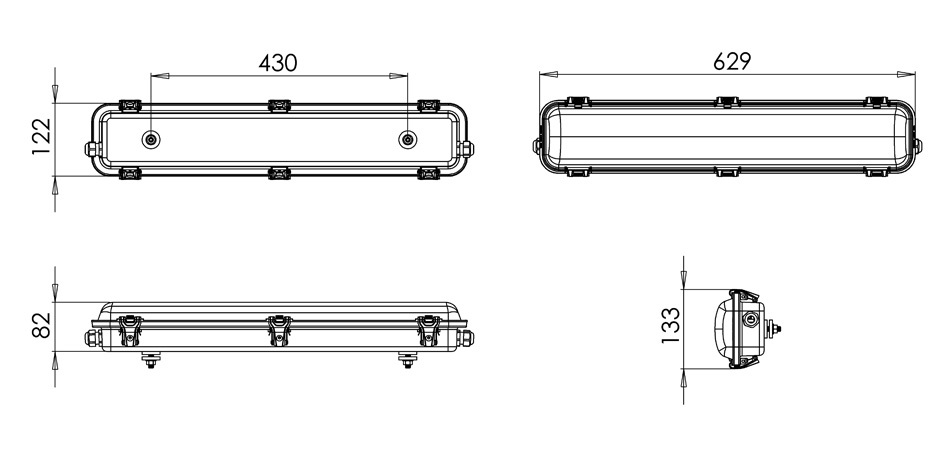

| Item Dimensions | 629x82x133mm - 2,4kg |
Others
| Luminous Flux Maintenance | L80 B10 >75.000 |
| Driver Lifespan | >35.000h |
| Packaging Dimensions | 2.7kg |
| International standard compliance | EN 60598-1; EN 60598-2-1; EN 62471 + TR 62778; EN 50581; EN 55015; EN 61547 |
| Eancode | 8019282561514 |
| Made In | Italy |
| Insulation Class |
|
