TAIMA
6519-21-354

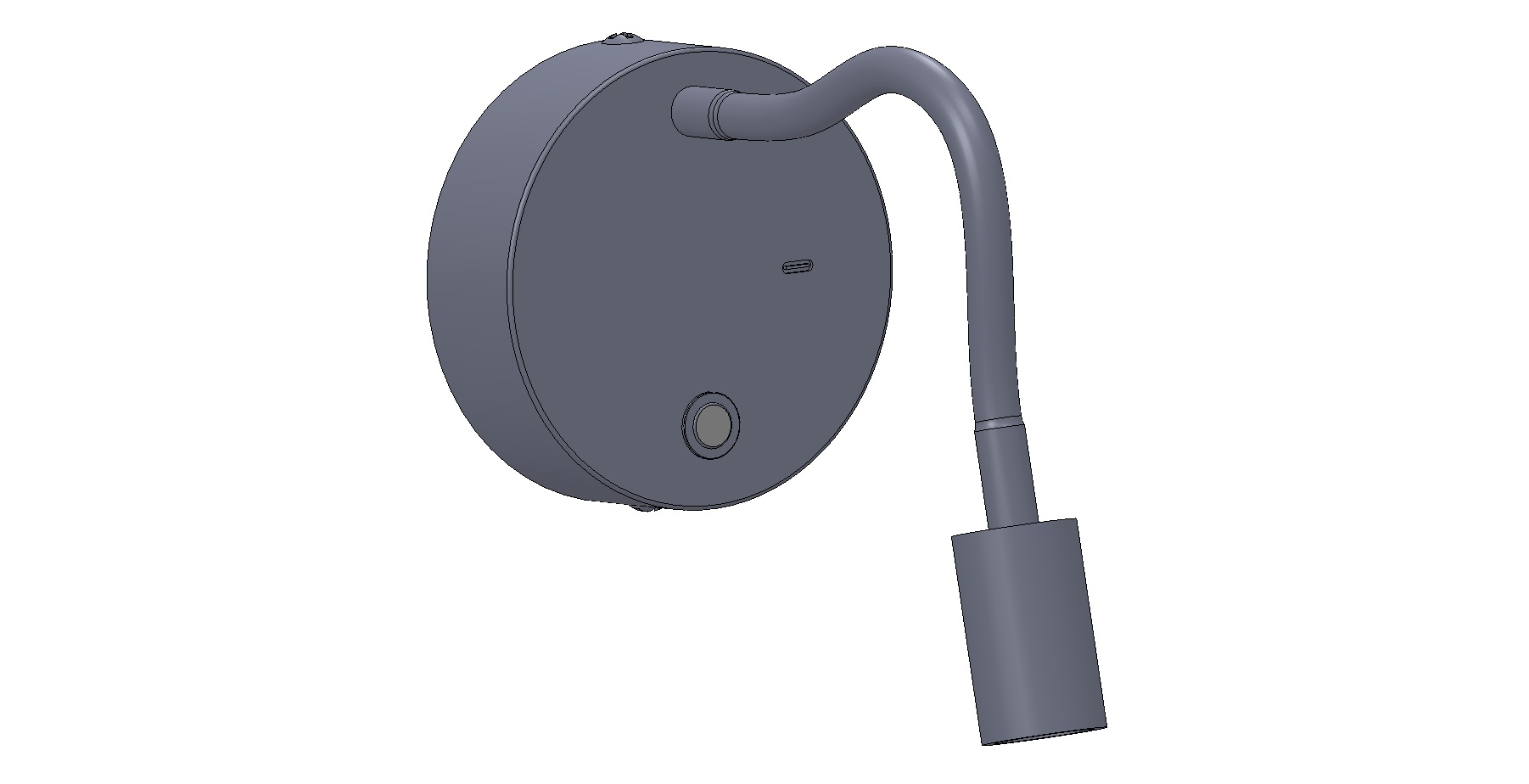

Dimmable LED lamp with on/off switch and USB-C 5VDC 2A
Lighting features
| LED Characteristics |
COB
|
| Number of LEDs |
1
|
| Light Source Lumen |
270 lm
|
| Item Lumen |
190 lm
|
| Light Source Efficiency |
90 lm/W @85°C
|
| Item Efficiency |
60 lm/W @85°C
|
| Color Temperature |
White 3000K
|
| Optics |
120°
|
| Minimum CRI |
>80
|
| SDCM |
5 STEP
|
| Energy Efficiency Class |
|
Electrical features
| Input Voltage |
100/240V AC 50/60Hz |
| Total Absorbed Power |
15W |
| Power Factor |
>0,9 |
| Control System |
Push dimmer |
| Driver |
Included |
| Power Supply Type |
Costant Voltage & Constant current |
| Driver Output |
120mA |
| Driver Input |
110-127V AC / 220-240V AC 50/60Hz |
| Through-Wiring |
No |
Mechanical features
| Housing material |
Metal frame
|
| Housing color |
White
|
| IP |
IP40
|
| Mounting |
With steel bracket
|
| Operating ambient temperature |
+0°C / +40°C
|

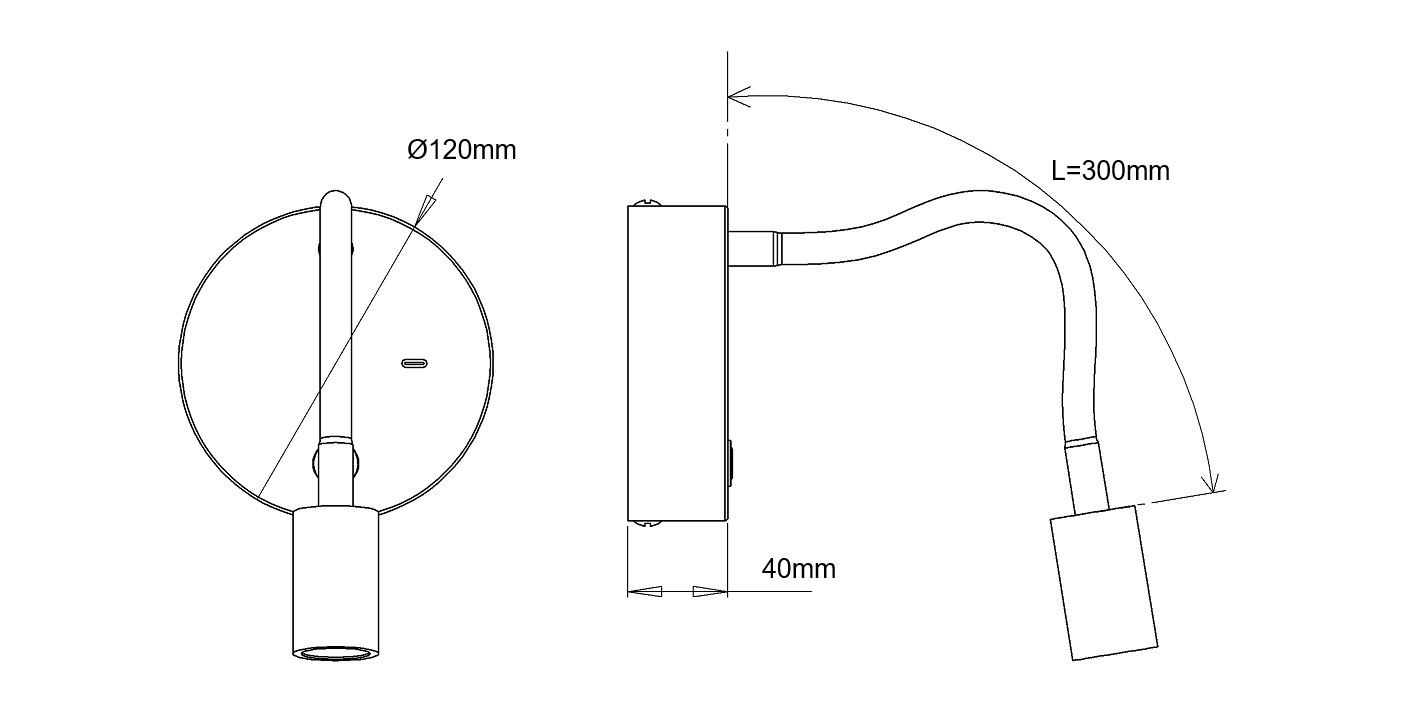

| Item Dimensions |
80x110x35mm - 0.47kg
|
Others
| International standard compliance |
EN60598-1; EN60598-2-1; EN 62471 + IEC TR62778; EN55015; EN 61547-1; EN61000-3-2; EN61000-3-3
|
| Eancode |
8019282544098
|
| Insulation Class |
|
