PSAR 12W NW
6823-84-257

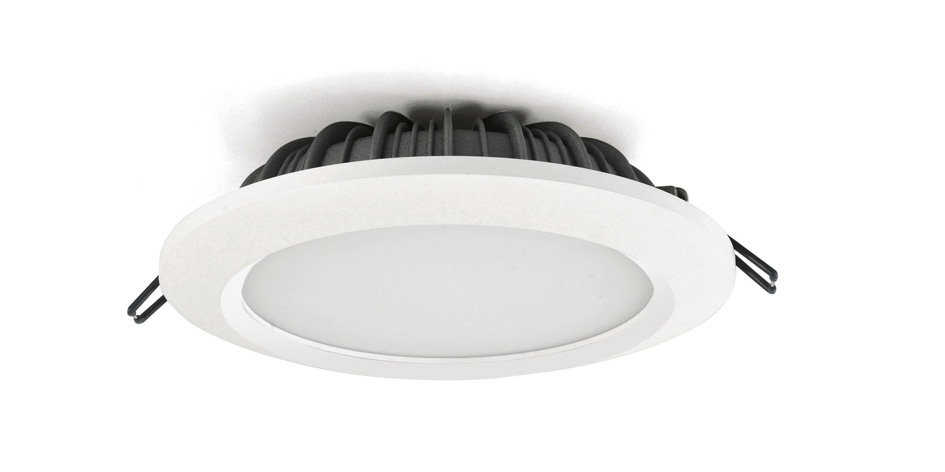

Recessed fixture for living rooms
Lighting features
| LED Characteristics | SMD |
| Number of LEDs | 30 |
| Light Source Lumen | 1750 lm |
| Item Lumen | 1250 lm |
| Light Source Efficiency | 152 lm/W @85°C |
| Item Efficiency | 97 lm/W @85°C |
| Color Temperature | White 4000K |
| Optics | Opal |
| Minimum CRI | 80 |
| SDCM | 3 STEP |
| Photobiological Risk | RG0 |
| Luminous Flux Maintenance | L70 B50 50000 |
| Energy Efficiency Class |
|
Electrical features
| Input Voltage | 220/240V 0-50/60Hz |
| Total Absorbed Power | 12W |
| Power Factor | > 0,9 |
| Control System | YES, Dimmable signal 0-10V |
| Driver Lifespan | 50000 |
| Driver | Included |
| Power Supply Type | Costant Current |
| Driver Output | 700mA |
| Driver Input | 220/240V 0-50/60Hz |
| Driver Protection | Mains surge 2Kv |
Mechanical features
| Housing material | Aluminum frame |
| Housing color | White RAL 9010 |
| IP | IP44 Front side |
| Diffuser / Protective shield | Opal acrylic |
| Mounting | Recessed |
| Hole dimension |
125
|
| Cable | Cm.35 - H05RN-F 2x1 |
| Operating ambient temperature | -20°C / +45°C |
| Storage ambient temperature | -20°C / +60°C |

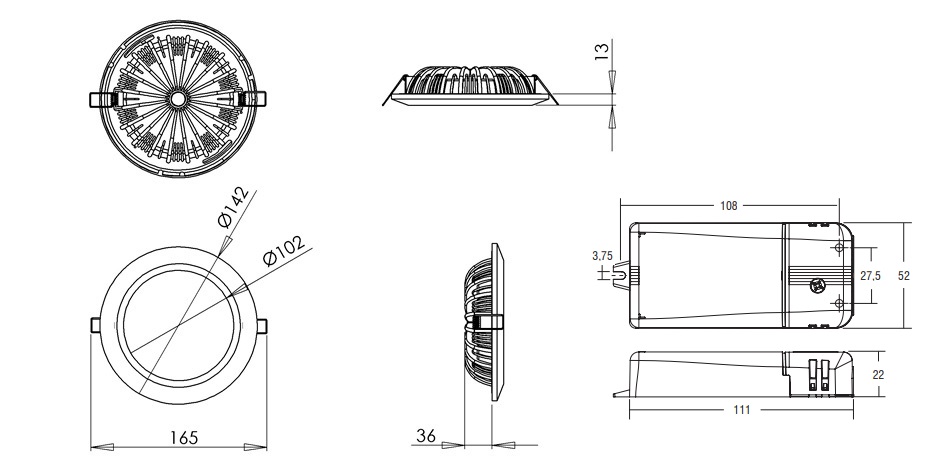

| Item Dimensions | 49mm Ø142mm - 0,7kg |
Others
| Packaging Dimensions | 150x100x150mm - 1kg |
| International standard compliance | EN 60598-1; EN 60598-2-2; EN 62471 + IEC TR 62778; EN 55015; EN 61547; EN 61000-3-2; EN 61000-3-3; EN IEC 63000; |
| Eancode | 8019282560203 |
| Insulation Class |
|
