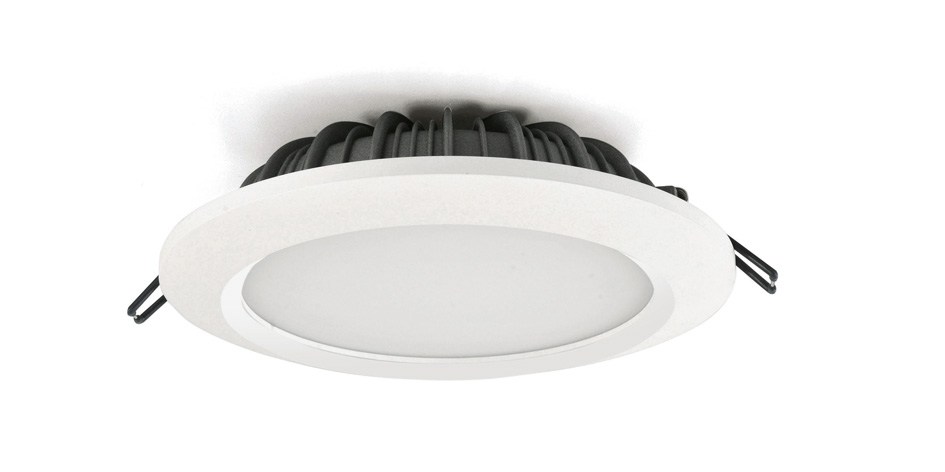

PSAR2 18W NW 24VDC
6823-04-253
Recessed fixture for living rooms - Direct input 24V DC
Lighting features
| LED Characteristics | SMD |
| Number of LEDs | 42 |
| Light Source Lumen | 2315 lm |
| Item Lumen | 1735 lm |
| Light Source Efficiency | 128 lm/W @85°C |
| Item Efficiency | 96 lm/W @85°C |
| Color Temperature | White 4000K |
| Optics | Opal |
| Minimum CRI | 80 |
| Photobiological Risk | RG0 |
| Energy Efficiency Class |
|
Electrical features
| Input Voltage | 24V DC |
| Total Absorbed Power | 18W |
| Control System | On/Off |
| Driver | Not included |
Mechanical features
| Housing material | Aluminum frame |
| Housing color | White RAL 9010 |
| IP | IP44 Front side |
| MIL-S 9001D Grade A- Class I – Type A | SI |
| Diffuser / Protective shield | Opal policarbonate |
| Hole dimension |
180
|
| Cable | cm.35 H05RN-F 2x1 with M/F connector |
| Operating ambient temperature | -20°C / +45°C |
| Storage ambient temperature | -20°C / +60°C |

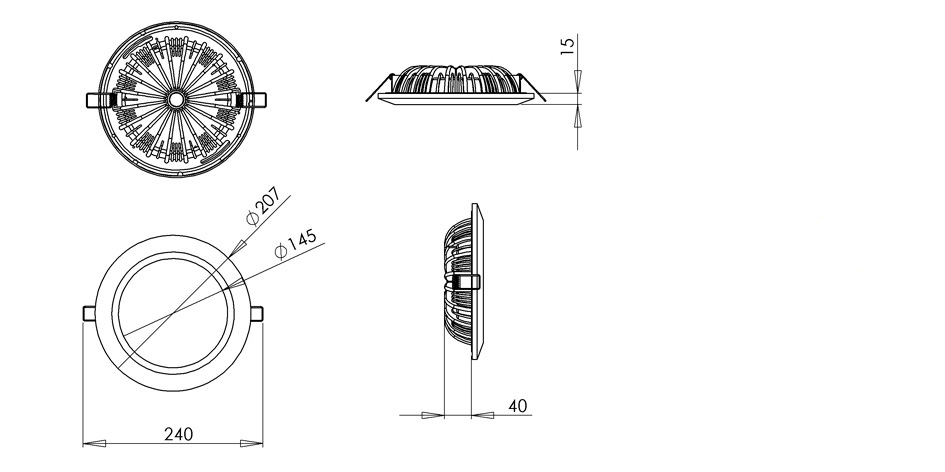

| Item Dimensions | 55mm Ø207mm - 0.8kg |
Others
| Luminous Flux Maintenance | L80 50000h |
| Packaging Dimensions | 340x220x70mm - 1kg |
| International standard compliance | EN 60598-1; EN60598-2-2; EN62471 + IEC TR 62778; EN55015; EN61000-3-2; EN61000-3-3; EN 50581; |
| Eancode | 8019282081258 |
| Insulation Class |
|
