STARFIX 82-1190
6955-54-005
82 W LED fixture – length 1190 mm
Lighting features
| Light Source 1 | ||
| LED Characteristics | SMD | |
| Number of LEDs | 448 | |
| Light Source Lumen | 12730 lm | |
| Item Lumen | 9519 lm | |
| Light Source Efficiency | 163 lm/W @85°C | |
| Item Efficiency | 116 lm/W @85°C | |
| Color Temperature | White 4000K | |
| Optics | 180° | |
| Typical CRI | 92 | |
| Minimum CRI | 90 | |
| SDCM | 3 STEP | |
| Photobiological Risk | RG0 | |
| Energy Efficiency Class |
|
Electrical features
| Electrical specifications 1 | ||
| Input Voltage | 220/240V 0-50/60Hz | |
| Total Absorbed Power | 82W | |
| Power Factor | >0,90 | |
| Control System | On/Off | |
| Driver | Included | |
| Power Supply Type | Costant Current | |
| Driver Output | 900mA | |
| Driver Input | 198-264 VAC 50/60Hz; 176-280 VDC | |
| Driver Protection | Mains surge 4kV; (L/N - PE) 4KV | |
| Through-Wiring | Yes, in the lamp |
Mechanical features
| Housing material | Metal frame |
| Surface treatment | Polyester Painting |
| Housing color | White RAL 9016 |
| IP | IP66 / IP67 |
| IK | 10 |
| Diffuser / Protective shield | Opal policarbonate flame rating V0 (UL94), UV resistent |
| Cable gland, cable Ø min-max | M20 nickel plated brass - Cable Ø 8-15mm |
| Clips | Yes, Stainless steel AISI 316SS |
| Mounting | M8 treaded pin with nut on preinstalled bushing, all stainles steel AISI 316L |
| Operating ambient temperature | -25°C / +55°C |
| Storage ambient temperature | -25°C / +70°C |

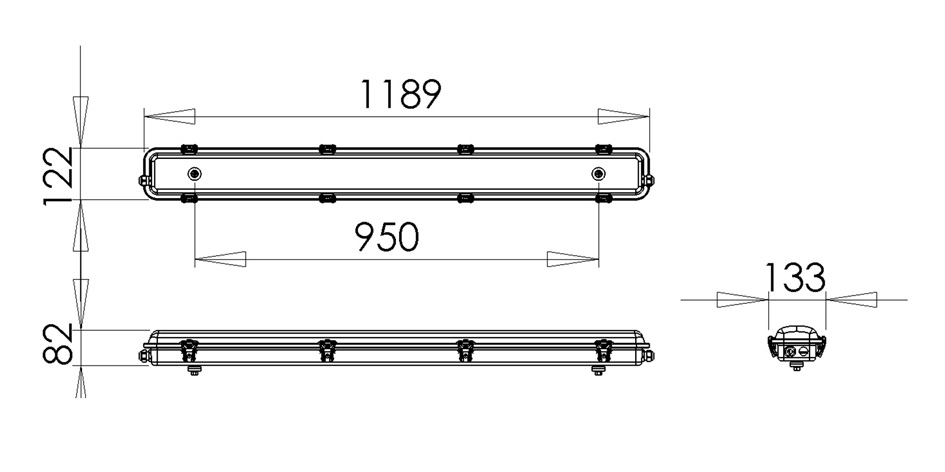

| Item Dimensions | 1189x82x133mm - 3.8kg |
Others
| Luminous Flux Maintenance | L70 B50 >60.000 |
| Packaging Dimensions | 155x1200x100mm - 4.4kg |
| International standard compliance | EN 60598-1; EN 60598-2-1; Lloyd's Register: 2020 + Notice 2021 (Pending); EN 62471 + TR62778; EN IEC 63000:2018 |
| Eancode | 8019282543282 |
| Made In | Italy |
| Insulation Class |
|
