TVE-R
6868-94-009

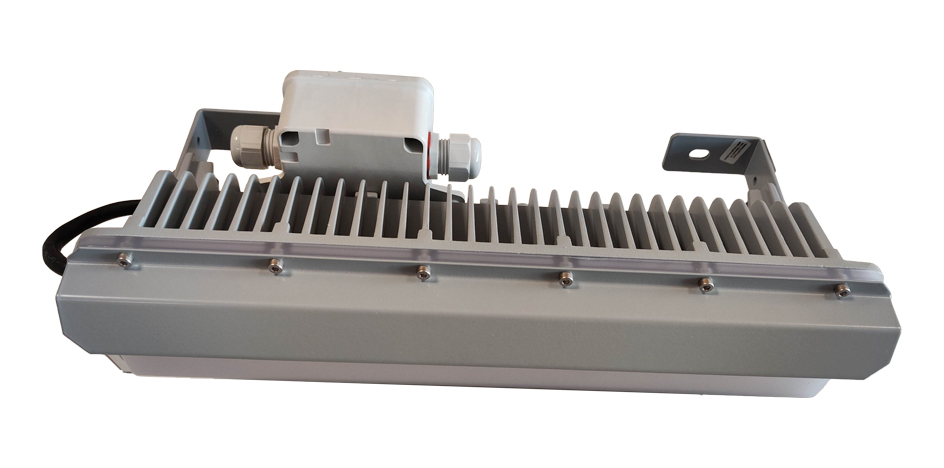

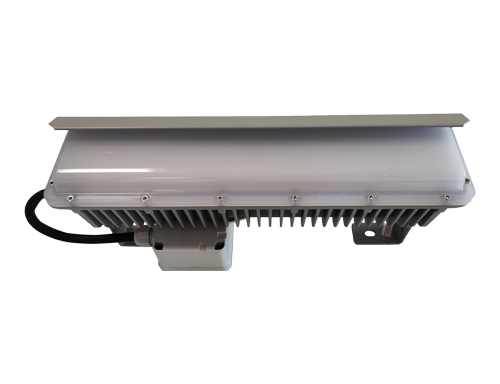

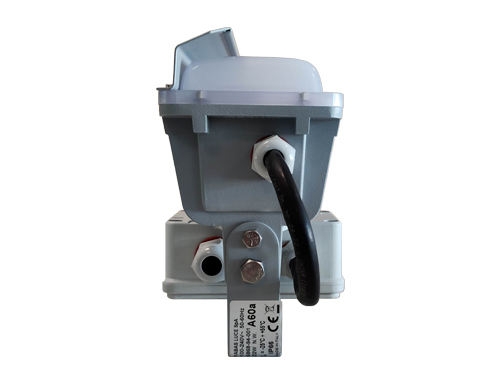

Multipurpose LED RED light fixture for inside and outside areas. Housing gray RAL 7040 with deflector.
Lighting features
| LED Characteristics | SMD |
| Number of LEDs | 60 |
| Light Source Lumen | 300 lm |
| Item Lumen | 188 lm |
| Light Source Efficiency | 62 lm/W @85°C |
| Item Efficiency | 27 lm/W @85°C |
| Color Temperature | Red Dominant Wavelength: >619nm <625nm |

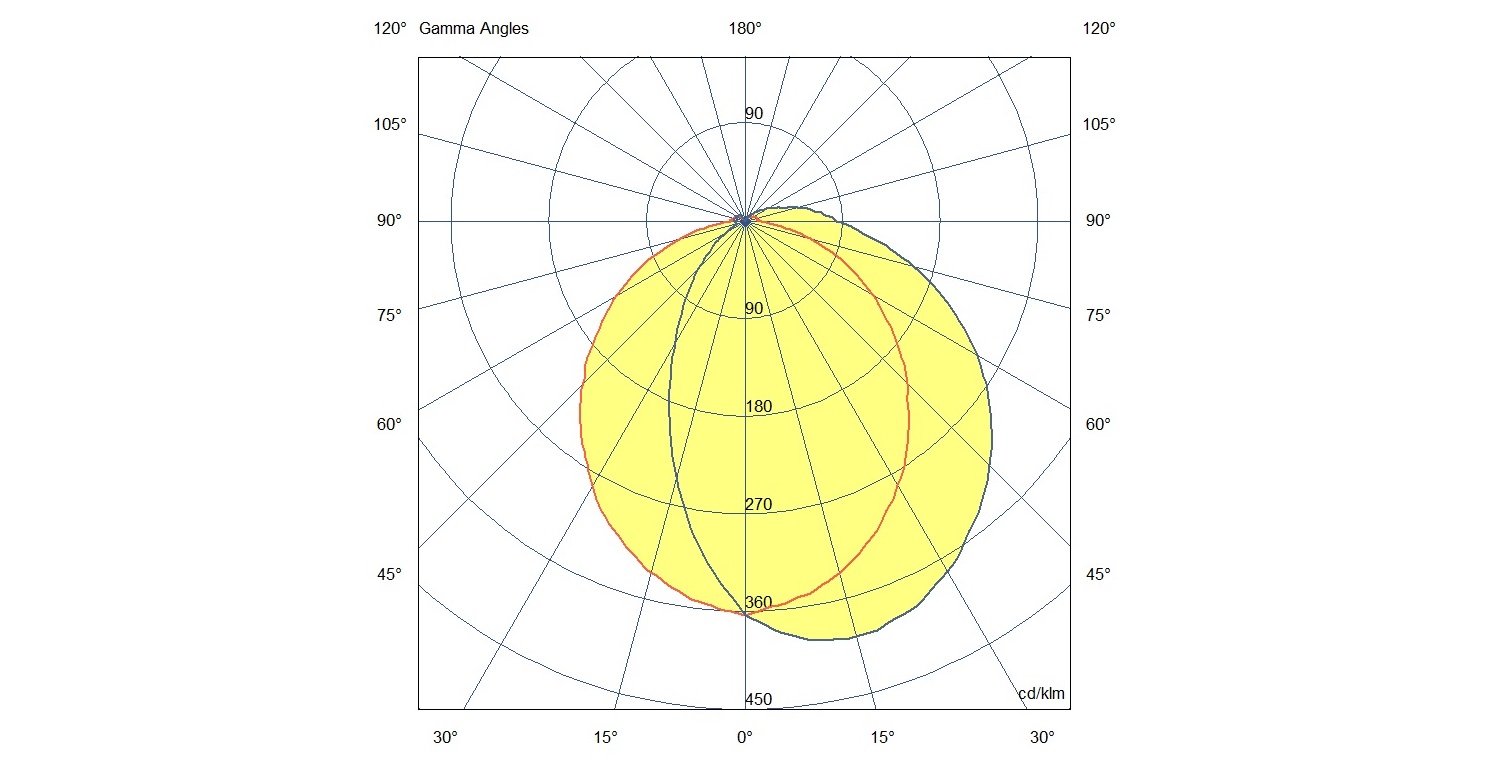

| Optics | 180° |
| Photobiological Risk | RG0 |
Electrical features
| Input Voltage | 200/240V AC 50/60Hz |
| Total Absorbed Power | 7W |
| Power Factor | >0,5 |
| Control System | On/Off |
| Driver | Included |
| Power Supply Type | Costant Current |
| Driver Output | 350mA |
| Driver Input | 180/264V~ 50/60Hz |
| Driver Protection | Mains surge 2Kv |
| Through-Wiring | Yes, in the junction box |
Mechanical features
| Housing material | Die-cast aluminum copper free EN AB 44100 |
| Surface treatment | Polyester Painting |
| Housing color | Grey RAL 7040 |
| IP | IP66 |
| IK | 10 |
| MIL-S 9001D Grade A- Class I – Type A | SI |
| Diffuser / Protective shield | Opal policarbonate flame rating V0 (UL94), UV resistent |
| Cable gland, cable Ø min-max | N°2 PG M20x1.5, Øext. cable: min 6mm - max 12mm |
| Mounting | With stainless steel brackets AISI 316L; fixing with M8 screws |
| Corrosion category | Salt Spray Resistance ASTM B117 >1500 hours |
| Operating ambient temperature | -25°C / +55°C |
| Storage ambient temperature | -25°C / +80°C |

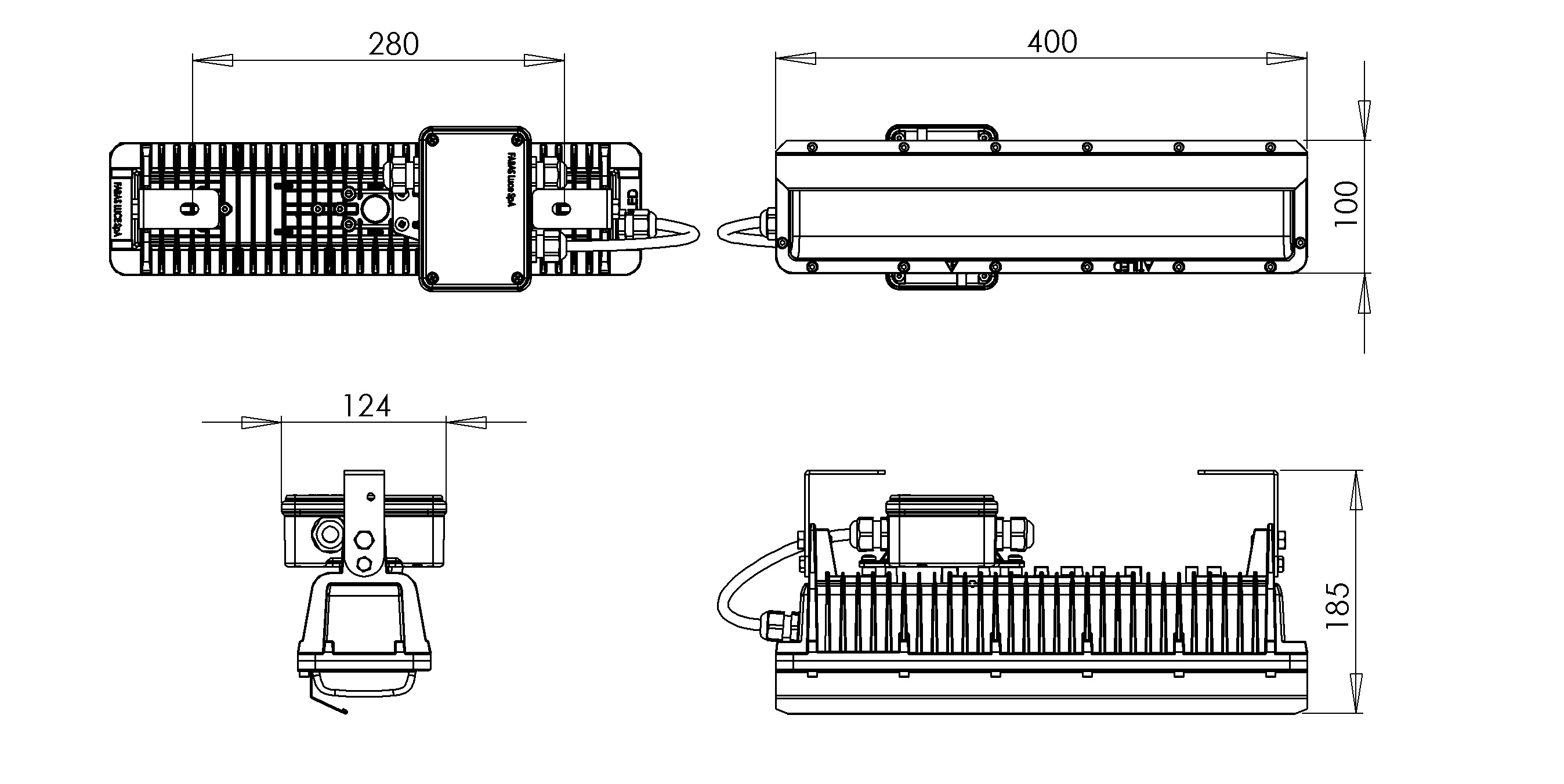

| Item Dimensions | 400x100x171mm - 2,7kg |
Others
| Driver Lifespan | 36000h |
| Packaging Dimensions | 490x130x190mm - 2.8kg |
| International standard compliance | EN60598-1; EN60598-2-1; IEC60092-306; IEC60533; EN62471 + TR62778; |
| Eancode | 8019282557029 |
| Made In | Italy |
| Insulation Class |
|
