GEST 24
6855-04-995
Lighting features
| LED Characteristics | SMD |
| Number of LEDs | 56 |
| Light Source Lumen | 2970 lm |
| Item Lumen | 1966 lm |
| Light Source Efficiency | 148 lm/W @85°C |
| Item Efficiency | 94 lm/W @85°C |
| Color Temperature | White 4000K |

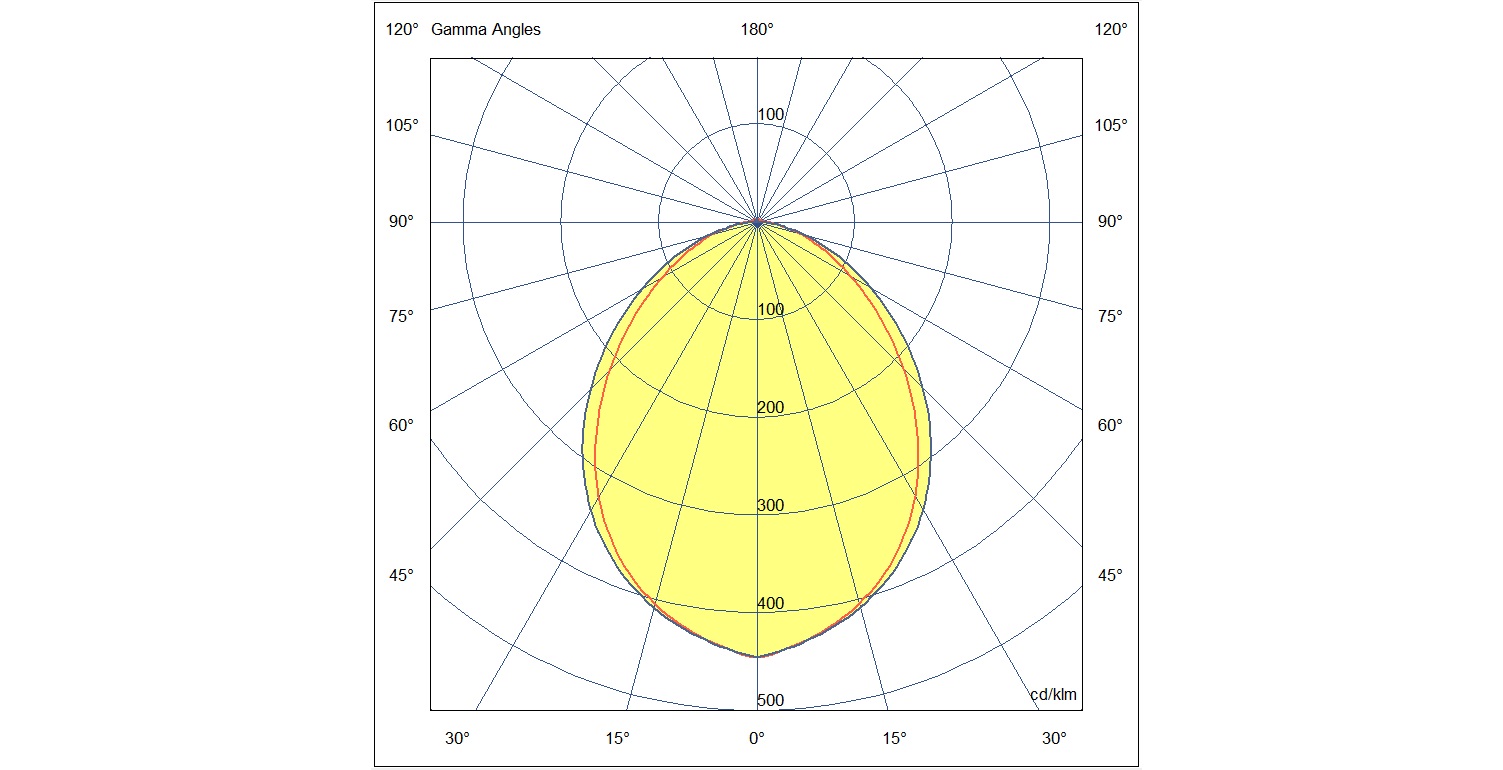

| Optics | 120° |
| Typical CRI | 85 |
| Minimum CRI | 80 |
| SDCM | 3 STEP |
| Photobiological Risk | RG0 |
| Luminous Flux Maintenance | L70 B50 80000 |
| Energy Efficiency Class |
|
Electrical features
| Input Voltage | 24V DC |
| Total Absorbed Power | 21W |
| Driver | Not included |
Mechanical features
| Housing material | Aluminum frame and polycarbonate with fixing bracket |
| Surface treatment | External epoxy powders |
| Housing color | Grey RAL 7040 |
| IP | IP66 / IP67 |
| Diffuser / Protective shield | Opal policarbonate |
| Mounting | With stainless steel brackets AISI 316L; fixing with M8 screws |
| Cable | 3m - H05RN-F 2x0.75 |
| Operating ambient temperature | -25°C / +55°C |
| Storage ambient temperature | -20°C / +60°C |

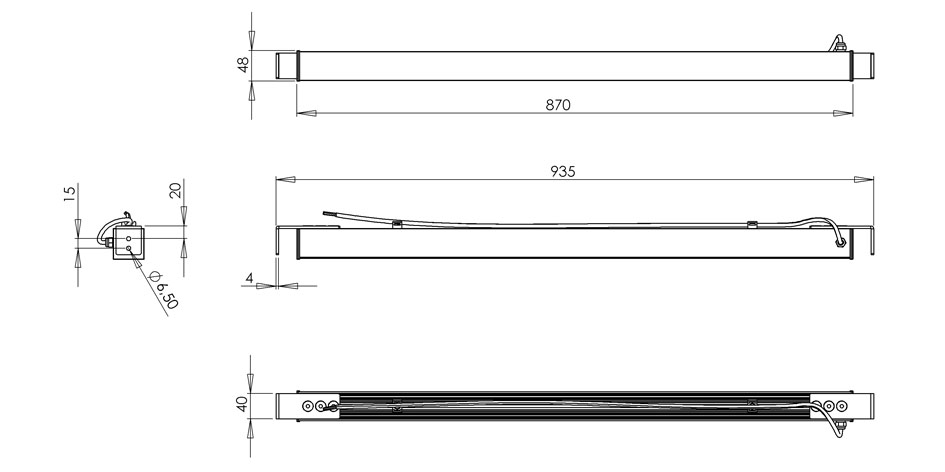

| Item Dimensions | 870x57x48mm - 2,3kg |
Others
| Packaging Dimensions | 1075x110x110mm - 3.5kg |
| International standard compliance | EN60598-1; EN60598-2-1; IEC60092-306; EN62471 + TR62778; MIL S 901D |
| Eancode | 8019282518211 |
| Made In | Italy |
| Insulation Class |
|
