TOR R
6941-96-324

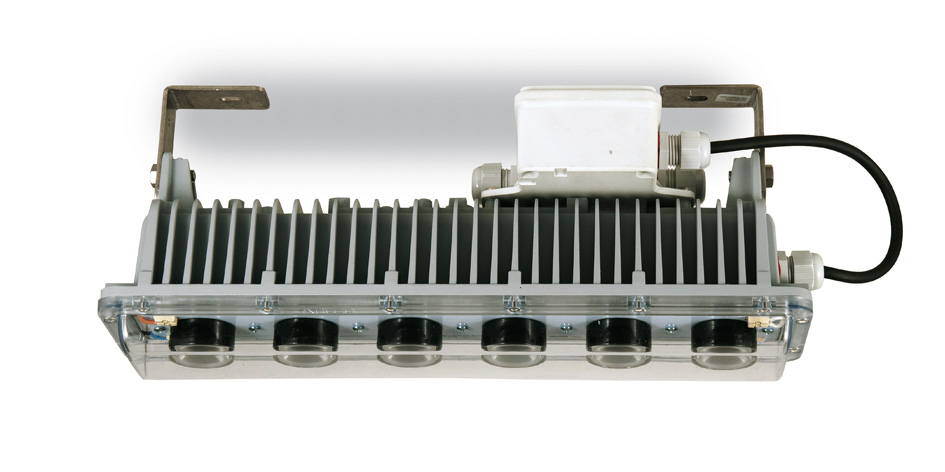

Powerful, precise and robust LED floodlight - Compact and low weight housing One lens for each LED assure intense and precise light beam
Lighting features
| LED Characteristics | Power LED |
| Number of LEDs | 20 |
| Color Temperature | Red Dominant Wavelength: >624nm <634nm |

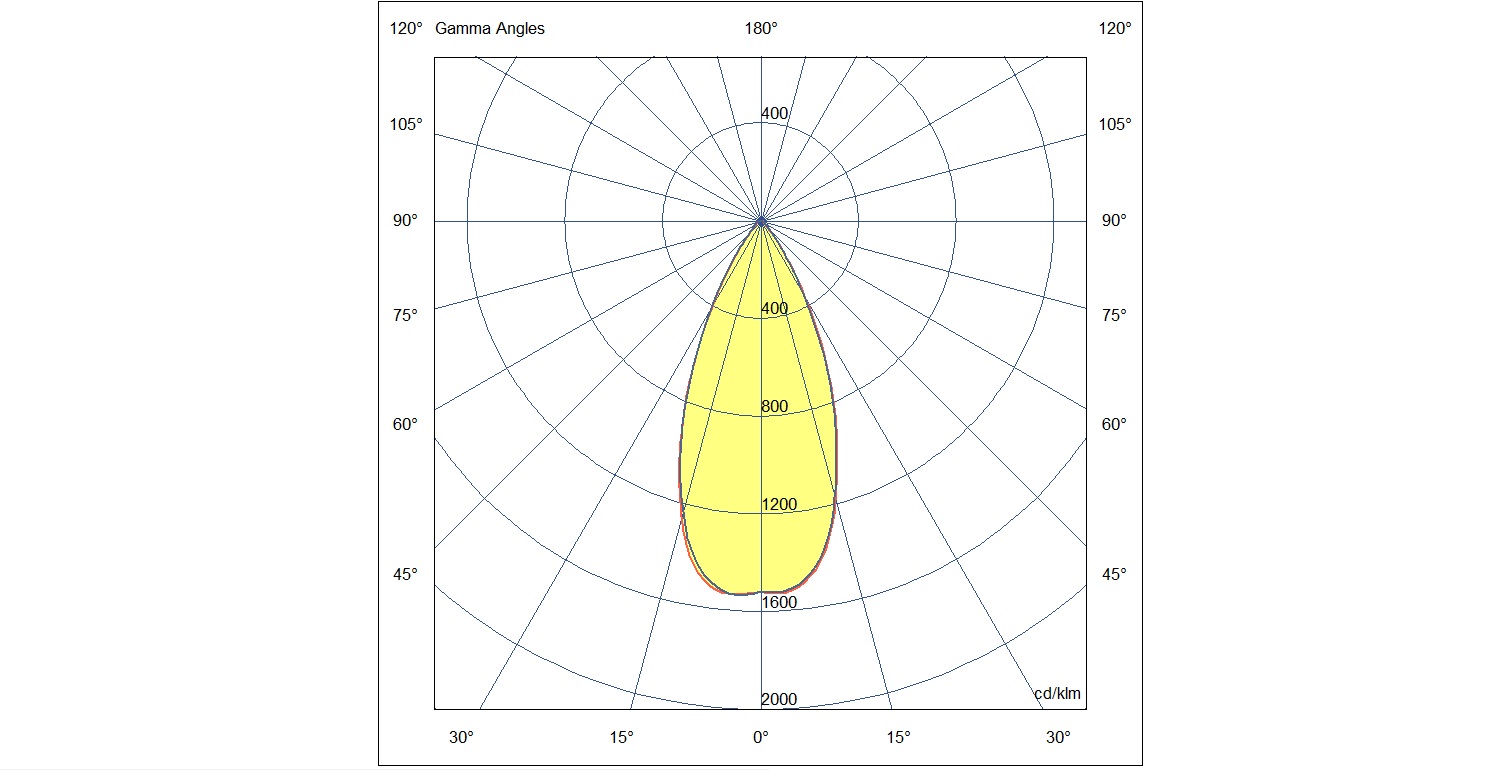

| Optics | 21° |
| Photobiological Risk | RG0 |
Electrical features
| Input Voltage | 100/240V AC 50/60Hz |
| Total Absorbed Power | 38W |
| Power Factor | > 0,9 |
| Control System | On/Off |
| Driver Lifespan | 93000h |
| Driver | Included |
| Power Supply Type | Costant Current |
| Driver Output | 700mA |
| Driver Input | 100/240V~ 50/60Hz |
| Driver Protection | Mains surge 4kV; (L/N - PE) 6KV |
| Through-Wiring | Yes, in the junction box |
Mechanical features
| Housing material | Die-cast aluminum structure |
| Housing color | Grey RAL 7040 |
| IP | IP66 |
| IK | 10 |
| Diffuser / Protective shield | Transparent self-extinguishing polycarbonate |
| Cable gland, cable Ø min-max | n°2 PG M20x1.5, Øext. cable: min 6mm - max 12mm |
| Mounting | With stainless steel brackets AISI 316L; fixing with M8 screws |
| Corrosion category | Salt Spray Resistance ASTM B117 >1500 hours |
| Operating ambient temperature | -40°C / +55°C |
| Storage ambient temperature | -40°C / +85°C |

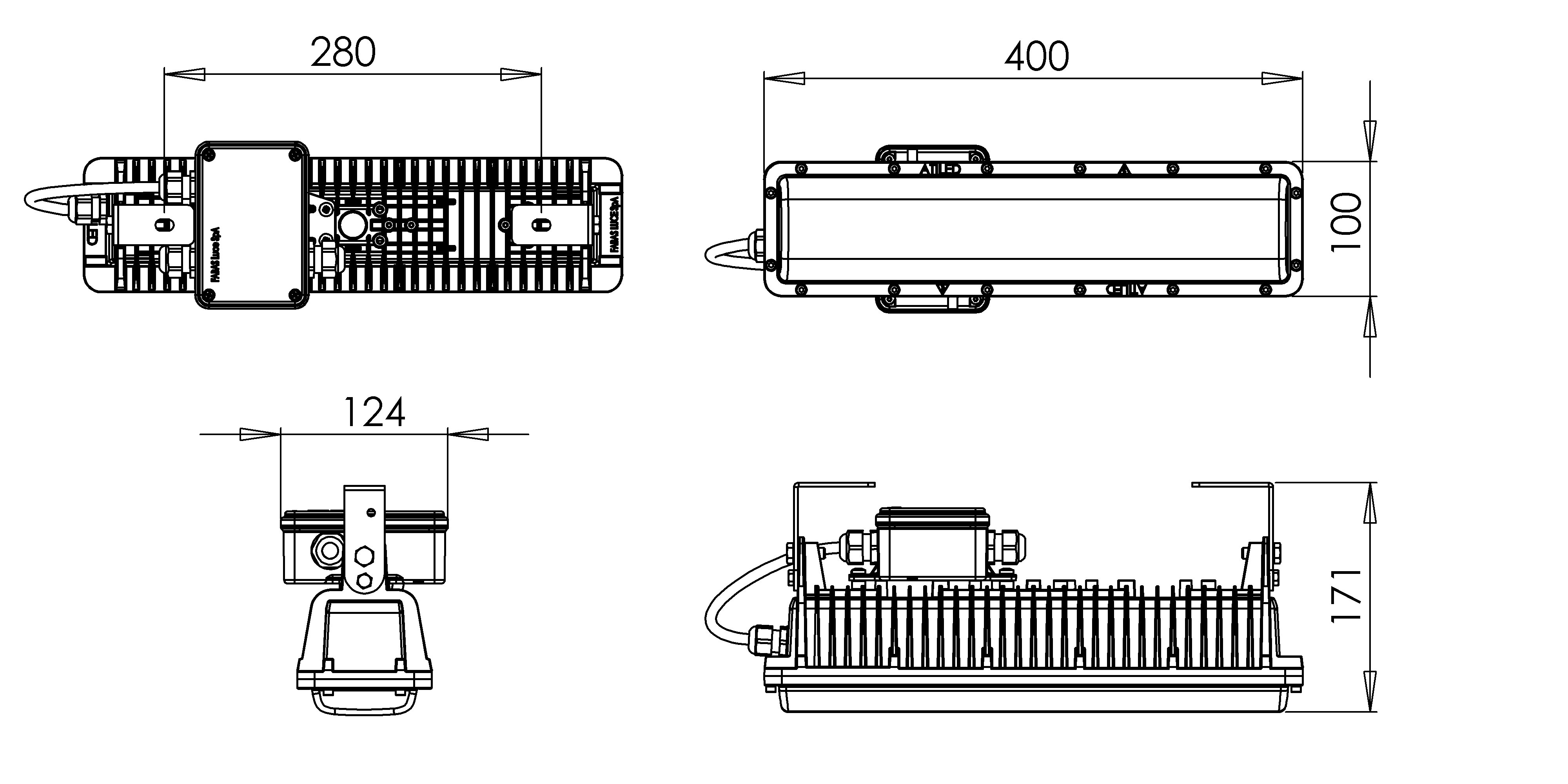

| Item Dimensions | 400x100x171mm - 2,6kg |
Others
| Packaging Dimensions | 490x130x190mm - 2.9kg |
| International standard compliance | EN 60598-1; EN 60598-2-5; EN62471 + IEC TR 62778; EN 50581; IEC 60533; IEC 60092-306 |
| Eancode | 8019282559108 |
| Made In | Italy |
| Insulation Class |
|
