GLO-B
6952-96-003

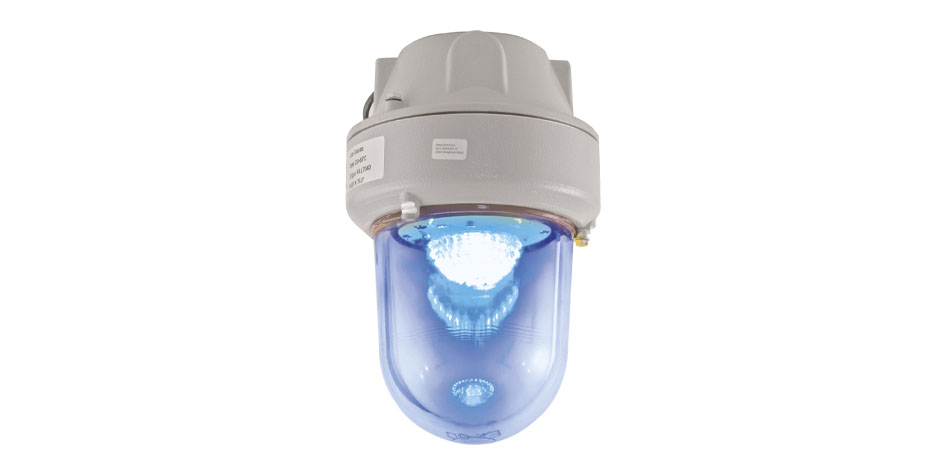

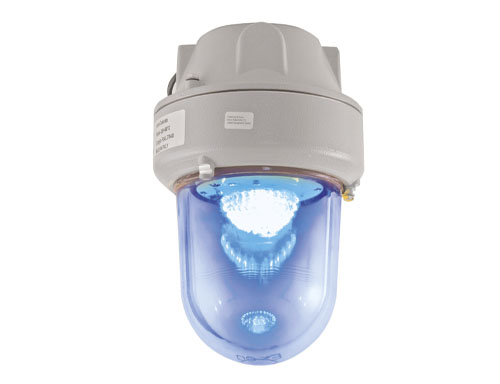

LED Globe – BLUE light – Cable glands not included, refer to accessories
EX LED Globe – BLUE light – ONLY with EX Cable glands not included, refer to accessories
Shock proof MIL S 901 D certified Grade A - Class I - Type A - only if mounted with our wall or ceiling brackets accessories.
Protection guard available, refer to our accessories.
Installation hazardous areas: Zone 1/2 (Gases) - Zone 21/22 (Dusts)
Classifications GROUP II - Category 2G/2D
II 2G Ex db IIC T4 Gb - II 2D Ex tb IIIC T135°C Db
Lighting features
| LED Characteristics |
Power LED
|
| Number of LEDs |
1
|
| Color Temperature |
Blue Dominant Wavelength: >440nm <460nm
|

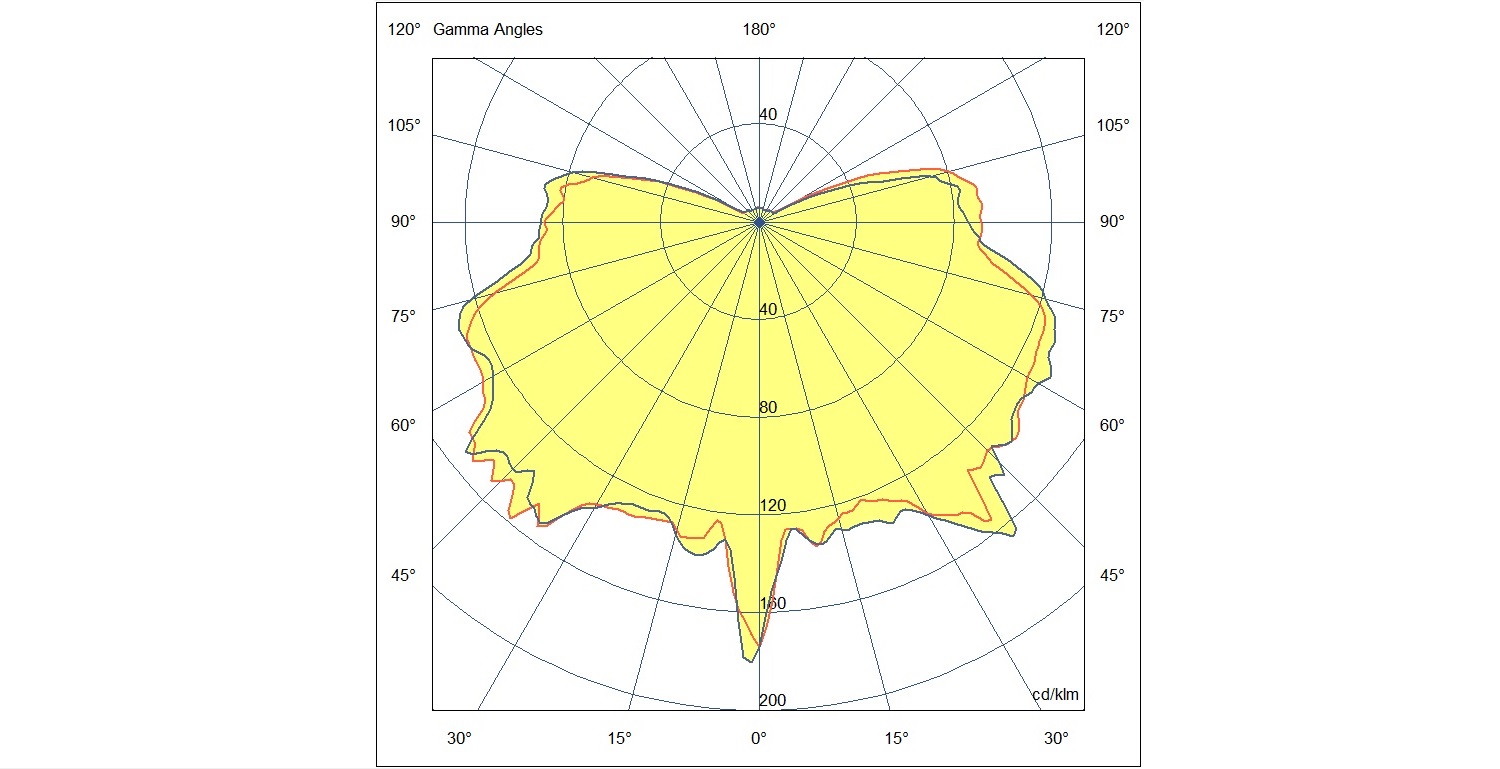

| Optics |
180°
|
| Photobiological Risk |
RG0
|
Electrical features
| Input Voltage |
100/240V AC 50/60Hz |
| Total Absorbed Power |
7W |
| Power Factor |
> 0,9 |
| Control System |
On/Off |
| Driver |
Included |
| Power Supply Type |
Costant Current |
| Driver Output |
500mA |
| Driver Input |
100/240V~ 50/60Hz |
| Driver Protection |
Mains surge 1kV |
| Through-Wiring |
Yes, in the lamp |
Mechanical features
| Housing material |
Marine grade copper free alluminium
|
| Surface treatment |
External epoxy powders
|
| Housing color |
Grey RAL 7040
|
| IP |
IP66
|
| MIL-S 9001D Grade A- Class I – Type A |
SI
|
| Diffuser / Protective shield |
Hight temperature resistant borosylicate glass
|
| Cable gland, cable Ø min-max |
1/2 NPT cable glands available on request
|
| Mounting |
With 2 screws M6x16
|
| Operating ambient temperature |
-25°C / +55°C
|
| Storage ambient temperature |
-20°C / +60°C
|

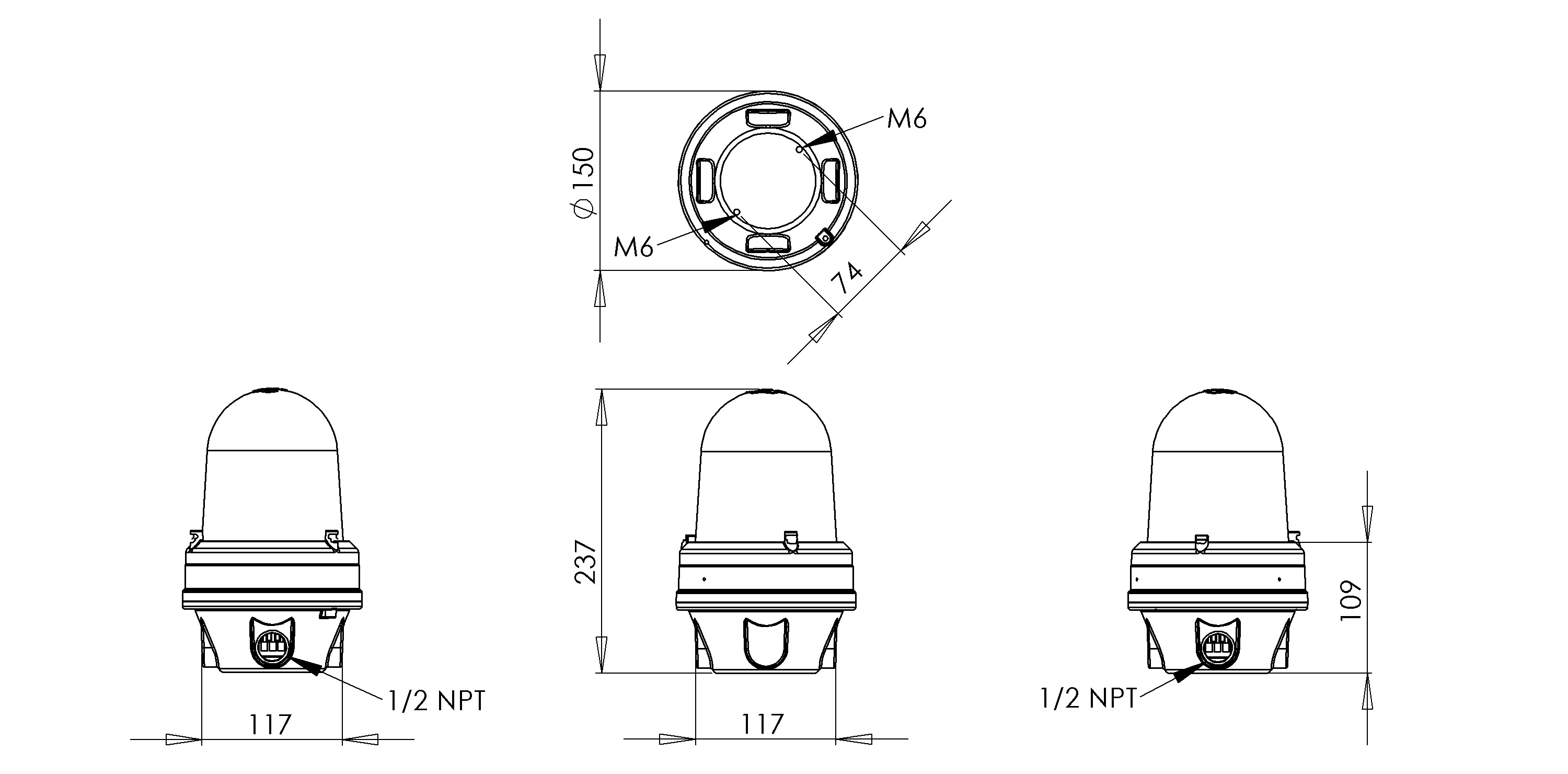

| Item Dimensions |
237mm Ø150mm - 3,5kg
|
Others
| Driver Lifespan |
90000
|
| Packaging Dimensions |
180x300x180mm - 4kg
|
| International standard compliance |
EN60598-1; EN60598-2-1; EN62471 + TR62778; IEC60092-306; IEC60533; EN60079-0; EN 60079-1; EN60079-28; EN 60079-31
|
| Eancode |
8019282550433
|
| Made In |
Italy
|
| Insulation Class |
|
