CTLP-USB
6949-02-006

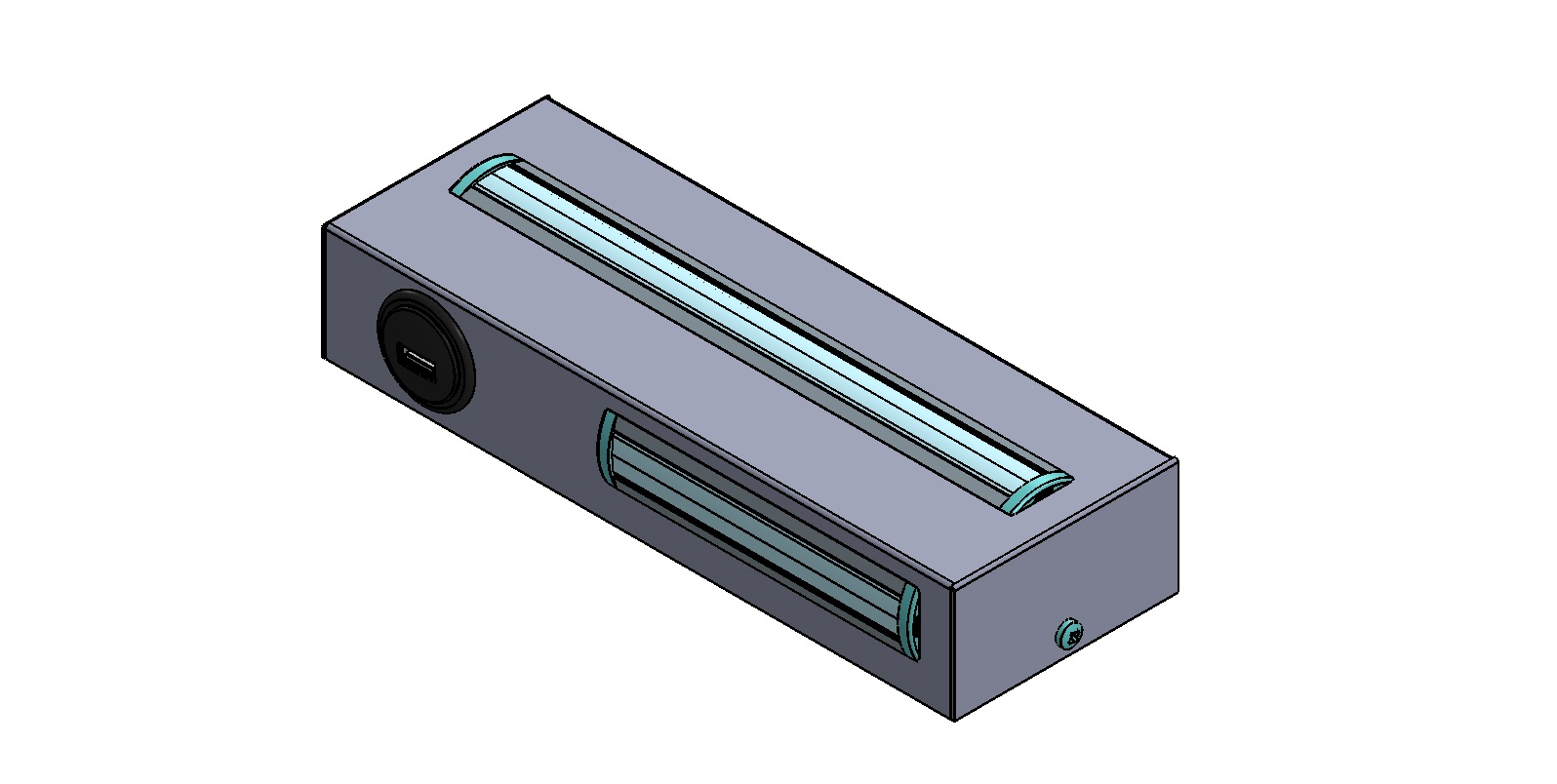

Bed LED light with USB socket USB-A 5V DC max 3A for recharge. Integrated touch control for on/off memory switch and dimming. Dual luminous flux frontal and downward
Lighting features
| LED Characteristics | SMD |
| Number of LEDs | 14 |
| Light Source Lumen | 686 lm |
| Item Lumen | 490 lm |
| Light Source Efficiency | 137 lm/W @85°C |
| Item Efficiency | 82 lm/W @85°C |
| Color Temperature | White 3000K |
| Optics | 120° |
| Typical CRI | 85 |
| Minimum CRI | 80 |
| SDCM | 3 STEP |
| Photobiological Risk | RG0 |
| Energy Efficiency Class |
|
Electrical features
| Input Voltage | 120/277V AC 50/60Hz |
| Total Absorbed Power | 6W |
| Power Factor | > 0,9 |
| Control System | Yes, touch dimmer |
| Driver | Included |
| Power Supply Type | Costant Voltage |
| Driver Output | 24VDC |
| Driver Input | 120/277V~ 50/60Hz |
| Driver Protection | Mains surge 2Kv |
| Through-Wiring | Yes, in the lamp |
Mechanical features
| Housing material | Metal frame |
| Surface treatment | Polyester Painting |
| Housing color | White RAL 9016 |
| IP | IP40 |
| Diffuser / Protective shield | Opal policarbonate |
| Operating ambient temperature | -25°C / +45°C |
| Storage ambient temperature | -25°C / +80°C |

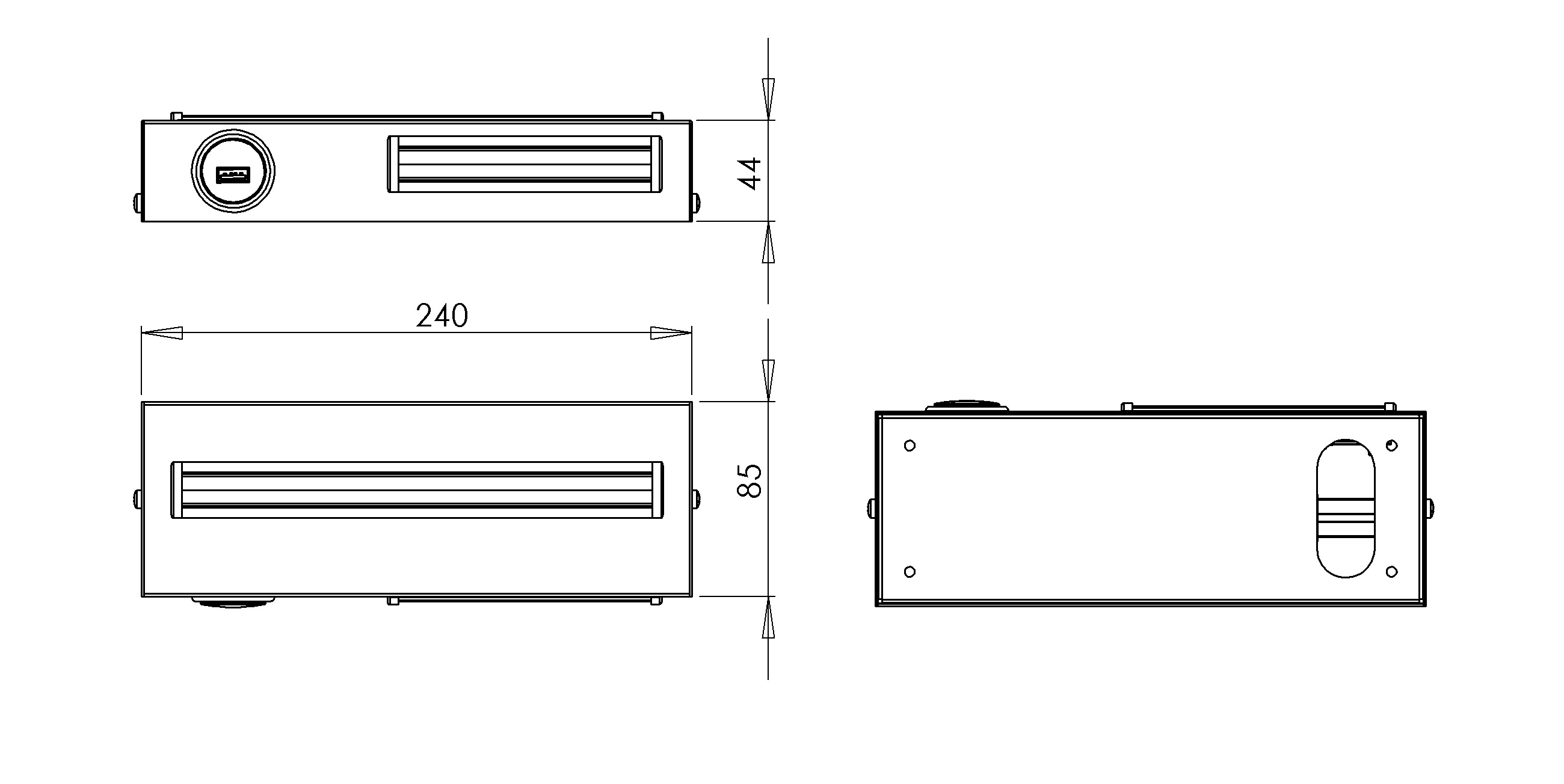

| Item Dimensions | 240x44x85mm - 0,4kg |
Others
| Luminous Flux Maintenance | L70 B50 80000 |
| Packaging Dimensions | 0.5kg |
| International standard compliance | EN 60598-1; EN60598-2-1; EN62471 + IEC TR 62778; EN 55015; EN 61547; EN61000-3-2; EN 61000-3-3; EN IEC 63000; |
| Eancode | 8019282560173 |
| Made In | Italy |
| Insulation Class |
|
