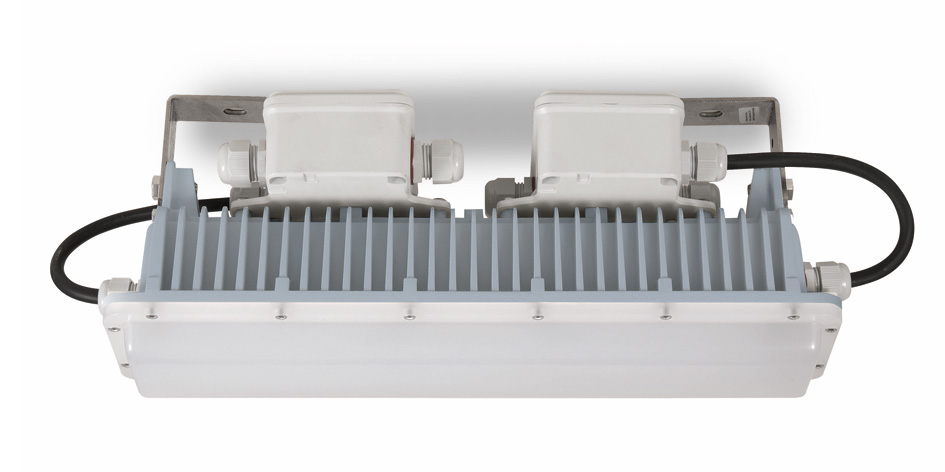

TVE VNVG+RED DALI 28V
6868-94-769
VG COMPATIBLE GREEN LED light fixture indoor and open decks - DALI Compliant to "Stage 3 NVD compatible" of “NATO standard MPP-02 - NVG / NVD - Night Vision Goggles / Device” + ON/OFF red light

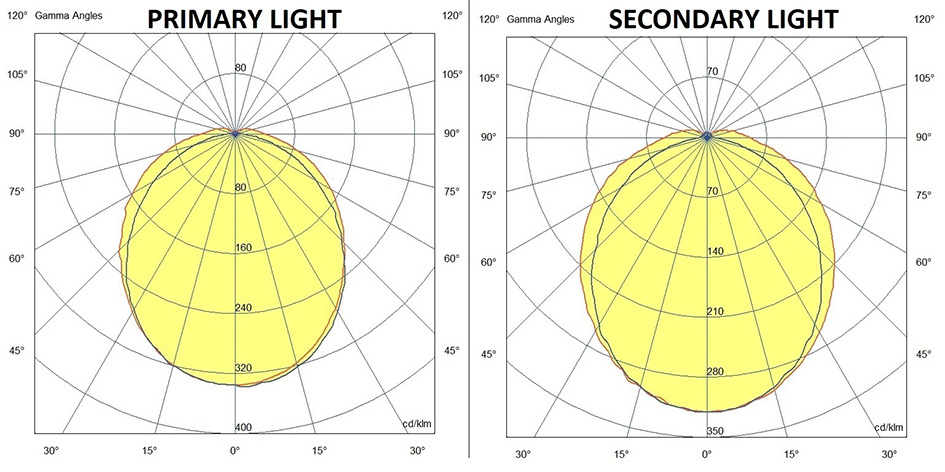

Lighting features
| Light Source 1 | Light Source 2 | |
| LED Characteristics | Power LED | SMD |
| Number of LEDs | 6 | 48 |
| Item Lumen | 535 lm | 110 lm |
| Item Efficiency | 45 lm/W @85°C | 22 lm/W @85°C |
| Color Temperature | Green NVG Dominant Wavelength: >525nm <537nm | Red Dominant Wavelength: >619nm <625nm |
| Optics | 180° | 120° |
| Photobiological Risk | RG0 | RG0 |
Electrical features
| Electrical specifications 1 | Electrical specifications 2 | |
| Input Voltage | 28V DC | 28V DC |
| Total Absorbed Power | 12W | 5W |
| Control System | DALI | On/Off |
| Driver | Included | Included |
| Power Supply Type | Costant Current | Costant Voltage |
| Driver Output | 500mA | 24V DC |
| Driver Input | 24V DC (min. 18V DC - max 36V DC) | 24V DC (min. 18V DC - max 36V DC) |
| Through-Wiring | Yes, in the junction box | Yes, in the junction box |
Mechanical features
| Housing material | Die-cast aluminum copper free EN AB 44100 |
| Surface treatment | Polyester Painting |
| Housing color | Grey RAL 7040 |
| IP | IP66 |
| IK | 10 |
| Diffuser / Protective shield | Opal policarbonate flame rating V0 (UL94), UV resistent |
| Cable gland, cable Ø min-max | N°4 PG M20x1.5, Øext. cable: min 6mm - max 12mm |
| Mounting | With stainless steel brackets AISI 316L; fixing with M8 screws |
| Corrosion category | Salt Spray Resistance ASTM B117 >1500 hours |
| Operating ambient temperature | -25°C / +55°C |
| Storage ambient temperature | -25°C / +85°C |

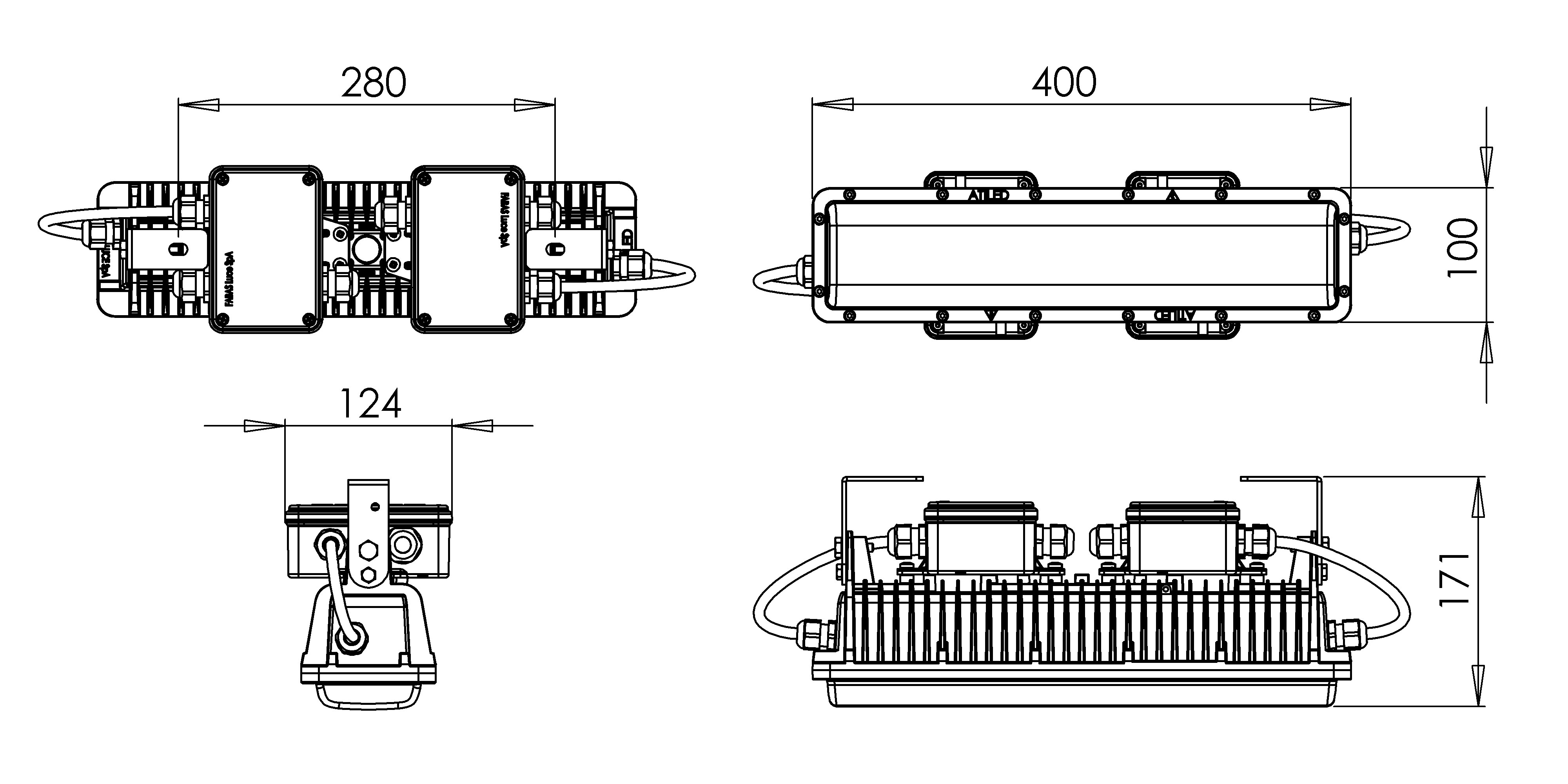

| Item Dimensions | 400x100x170mm - 2,40kg |
Others
| Packaging Dimensions | 490x130x190mm - 2.5kg |
| International standard compliance | EN 60598-1; EN 60598-2-1; EN 62471 + TR62778; EN55011; EN61000-4-2, 3, 4, 5, 6; |
| Eancode | 8019282575016 |
| Made In | Italy |
| Insulation Class |
|
