TVE-FL 5W NW RAL9010 EM 1.5H 120V
6868-54-671

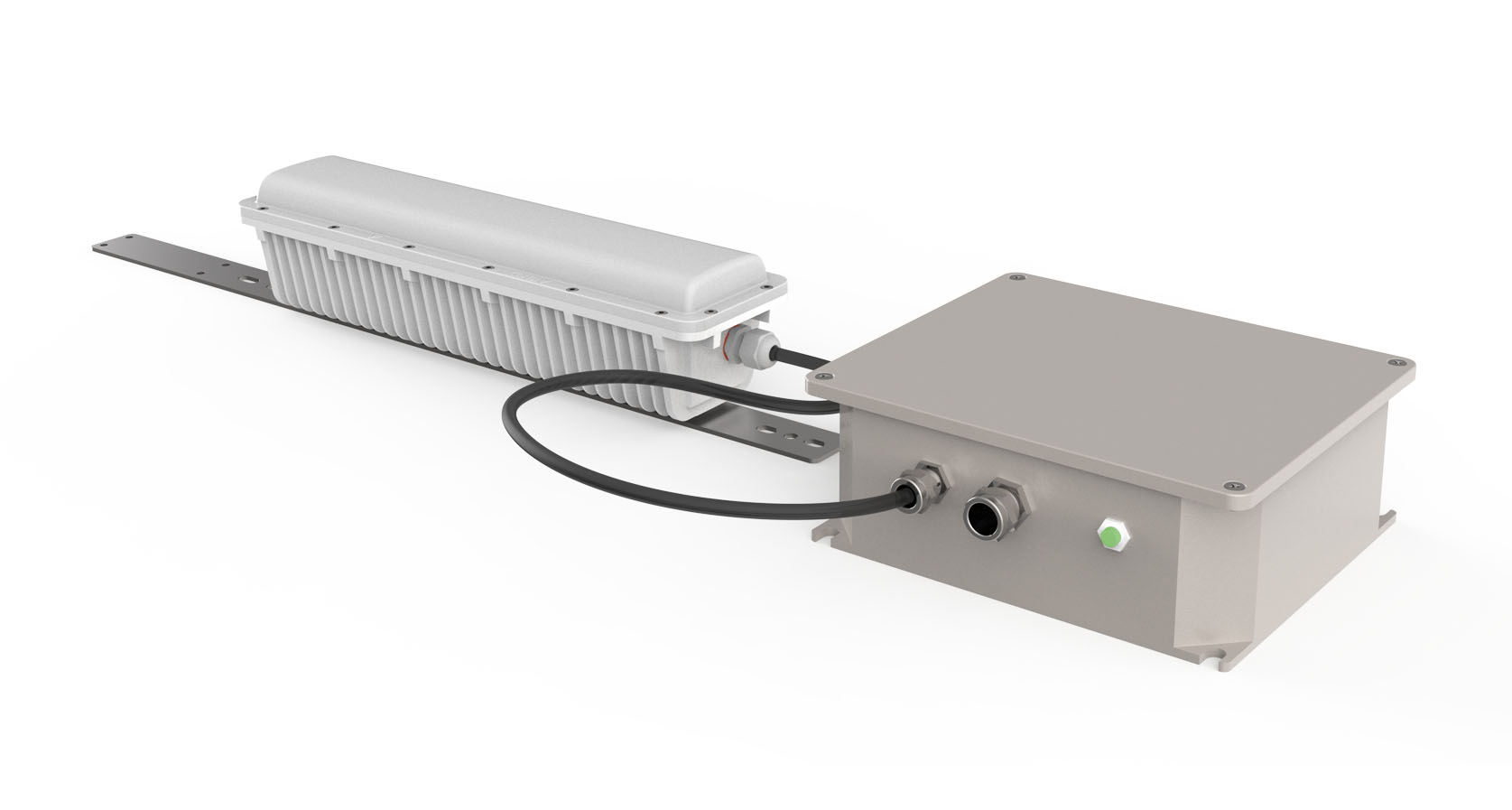

Multipurpose white LED light fixture for inside and outside technical areas. Housing white RAL9010 - Emergency kit 1.5 hours in external box RAL7042

Lighting features

LED Characteristics SMD
Number of LEDs 60
Light Source Efficiency 185 lm/W @85°C
Color Temperature White 4000K

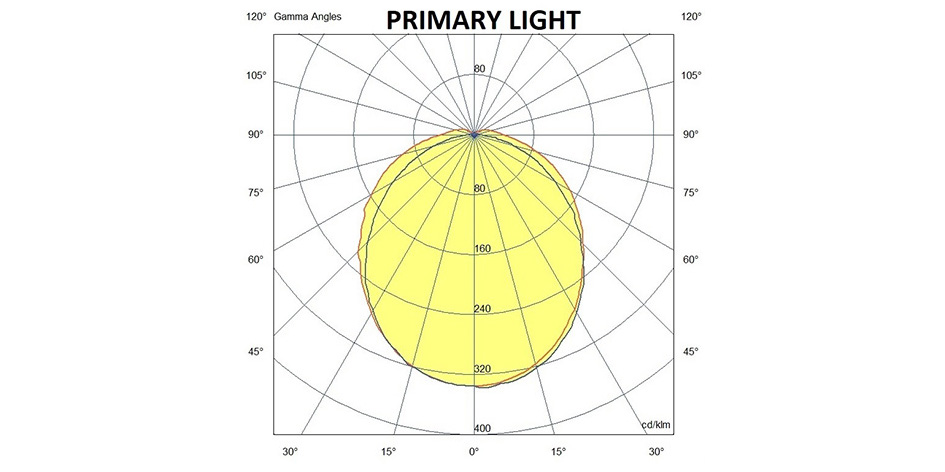

Optics 180°
Typical CRI 85
Minimum CRI 80
SDCM 3 STEP
Photobiological Risk RG0
Emergency Function Yes, 1.5 hours of battery life
Emergency Lumen 25% - 660lm
Energy Efficiency Class

Electrical features

Input Voltage 120/277V AC 50/60Hz
Total Absorbed Power 3,5W
Power Factor > 0,9
Control System On/Off
Driver Included
Power Supply Type Costant Current
Driver Output 300mA
Driver Input 115/277V~ 50/60Hz
Driver Protection Mains surge 1kV
Through-Wiring No

Mechanical features

Housing material Die-cast aluminum copper free EN AB 44100
Surface treatment Polyester Painting
Housing color White RAL 9010
IP IP67
IK 10
MIL-S 9001D Grade A- Class I – Type A NO
Diffuser / Protective shield Opal policarbonate flame rating V0 (UL94), UV resistent
Cable gland, cable Ø min-max N°1 PG M20x1.5, Øext. cable: min 8mm - max 15mm
Mounting With stainless steel brackets AISI 316L; fixing with M8 screws
Corrosion category Salt Spray Resistance ASTM B117 >1500 hours
Cable 1m cable H05RN-F 3x1.0mmq (between box and lamp)
Operating ambient temperature -25°C / +55°C
Storage ambient temperature -25°C / +85°C

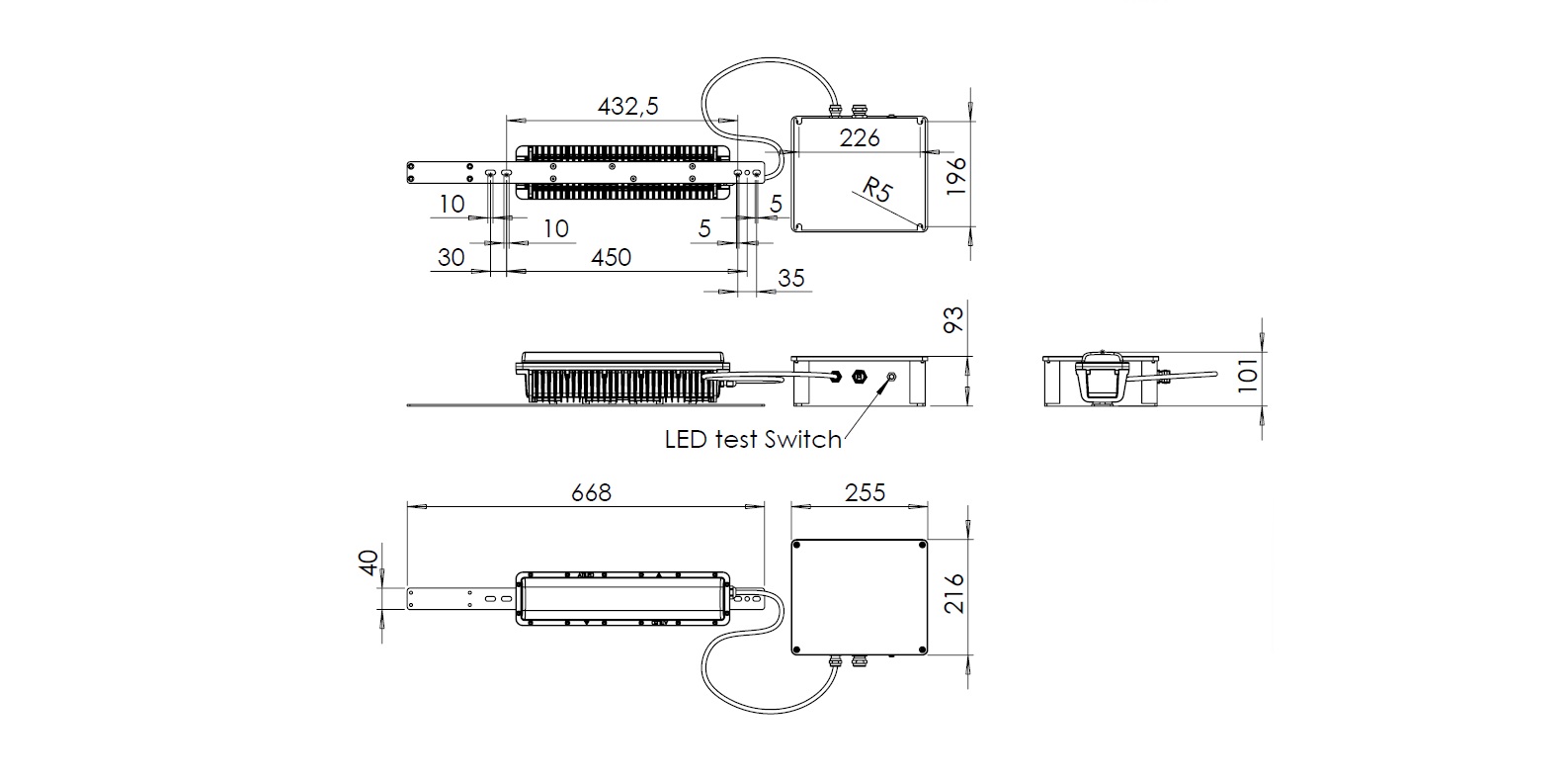

Item Dimensions 400x100x101mm - 5,0kg

Others

Luminous Flux Maintenance L80 100000h
Driver Lifespan 50000h
Packaging Dimensions 5.4kg
International standard compliance EN 60598-1; EN 60598-2-1; EN 62471 + IEC TR62778
Eancode 8019282579199
Made In Italy
Insulation Class
