TVE-FL R 7W ROSSO RAL9010
6868-54-617

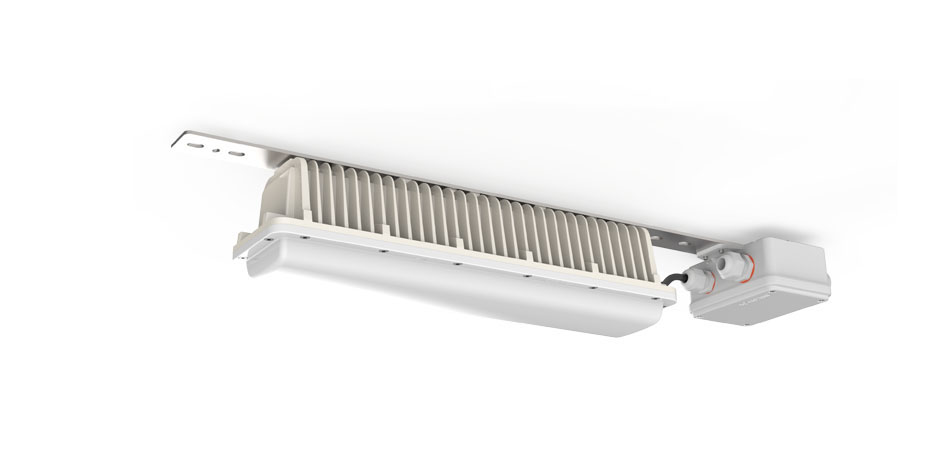

Multipurpose LED RED light fixture for inside and outside areas. Housing white RAL 9010
Lighting features
| LED Characteristics | SMD |
| Number of LEDs | 60 |
| Light Source Lumen | 300 lm |
| Item Lumen | 251 lm |
| Light Source Efficiency | 62 lm/W @85°C |
| Item Efficiency | 36 lm/W @85°C |
| Color Temperature | Red Dominant Wavelength: >619nm <625nm |

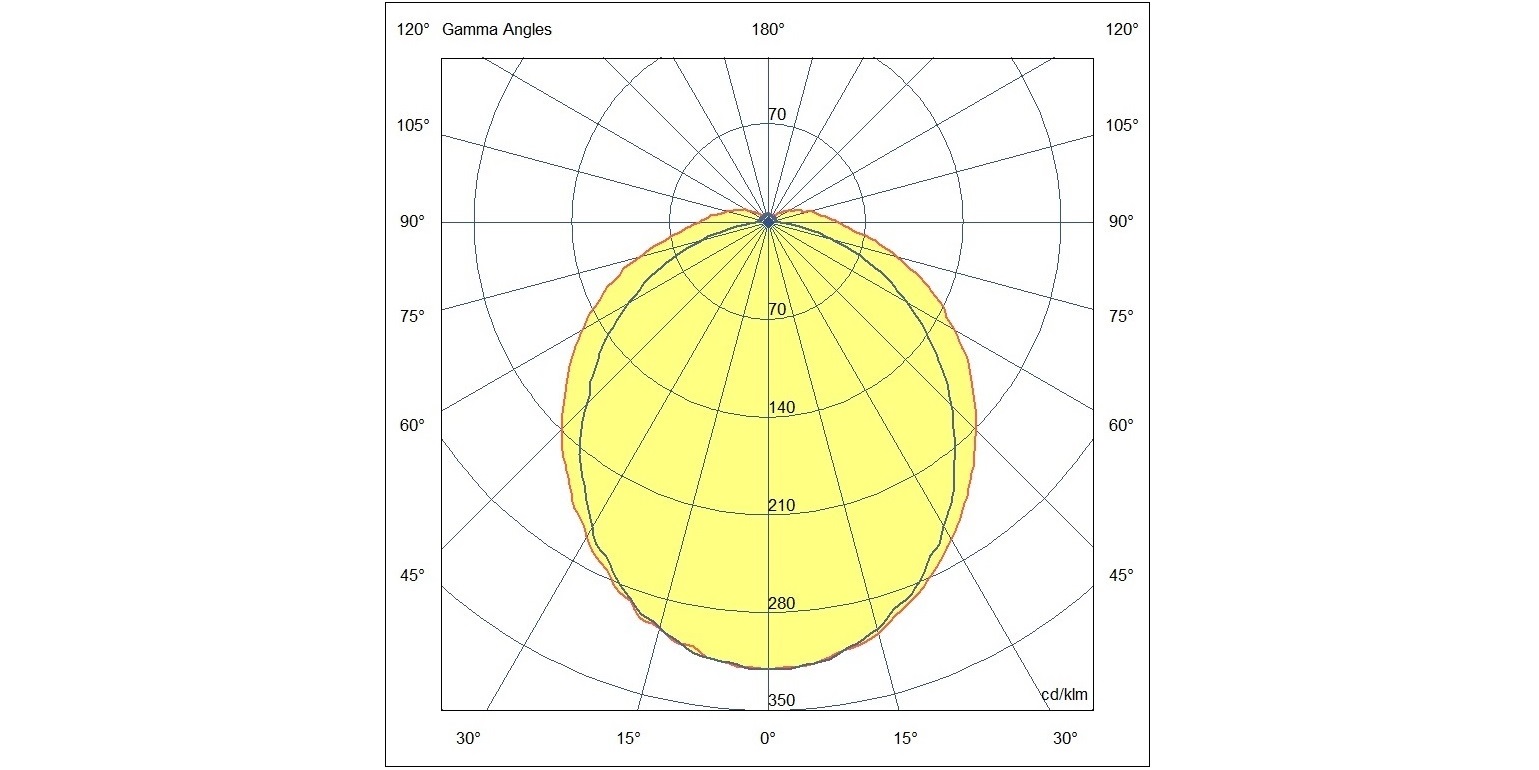

| Optics | 180° |
| Photobiological Risk | RG0 |
Electrical features
| Input Voltage | 100/240V AC 50/60Hz |
| Total Absorbed Power | 7W |
| Power Factor | > 0,7c |
| Control System | On/Off |
| Driver | Included |
| Power Supply Type | Costant Current |
| Driver Output | 350mA |
| Driver Input | 100/240V~ 50/60Hz |
| Driver Protection | Mains surge 500V |
| Through-Wiring | Yes, in the junction box |
Mechanical features
| Housing material | Die-cast aluminum copper free EN AB 44100 |
| Surface treatment | Polyester Painting |
| Housing color | White RAL 9010 |
| IP | IP66 / IP67 |
| IK | 10 |
| Diffuser / Protective shield | Opal policarbonate flame rating V0 (UL94), UV resistent |
| Cable gland, cable Ø min-max | N°2 PG M20x1.5, Øext. cable: min 6mm - max 12mm |
| Mounting | With stainless steel brackets AISI 316L; fixing with M8 screws |
| Corrosion category | Salt Spray Resistance ASTM B117 >1500 hours |
| Operating ambient temperature | -25°C / +55°C |
| Storage ambient temperature | -25°C / +85°C |

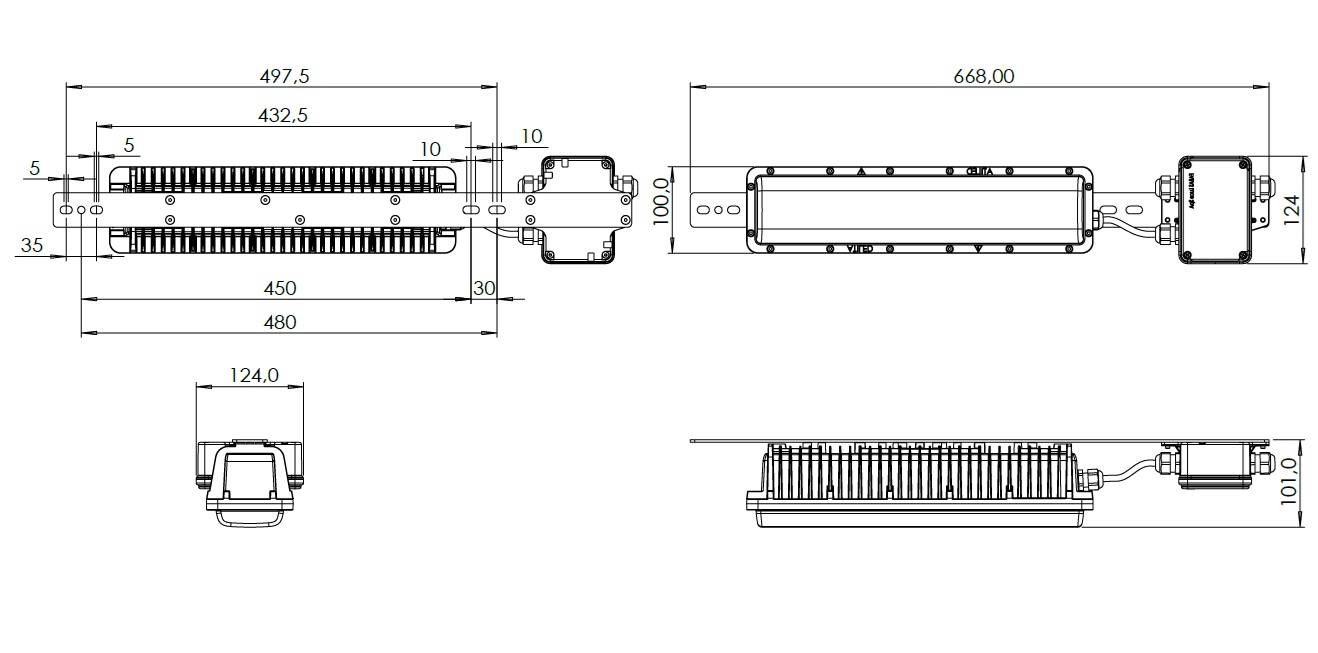

| Item Dimensions | 668x100x101mm - 3,2kg |
Others
| Driver Lifespan | 50000h |
| Packaging Dimensions | 830x140x135mm - 3.5kg |
| International standard compliance | EN 60598-1; EN 60598-2-1; IEC 60092-306; IEC 60533 ; EN55015; EN 61547-1; EN61000-3-2; EN61000-3-3 |
| Eancode | 8019282579724 |
| Made In | Italy |
| Insulation Class |
|
