TVE-I DALI
6868-54-037

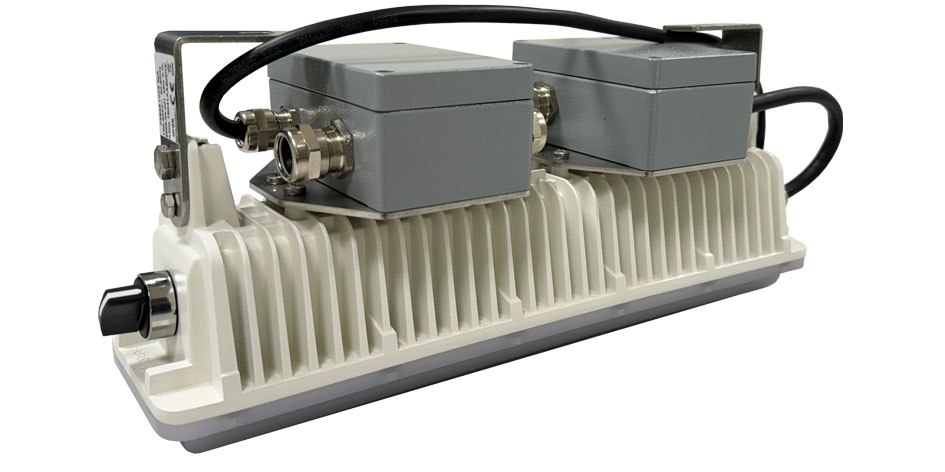

Multipurpose white LED light fixture DALI DIMMABLE for inside and outside technical areas on-off Switch on the fixture. Housing white RAL 9010
Lighting features
| Light Source 1 | Light Source 2 | |
| LED Characteristics | SMD | |
| Number of LEDs | 60 | |
| Light Source Lumen | 3100 lm | |
| Item Lumen | 2520 lm | |
| Light Source Efficiency | 185 lm/W @85°C | |
| Item Efficiency | 115 lm/W @85°C | |
| Color Temperature | White 4000K | |

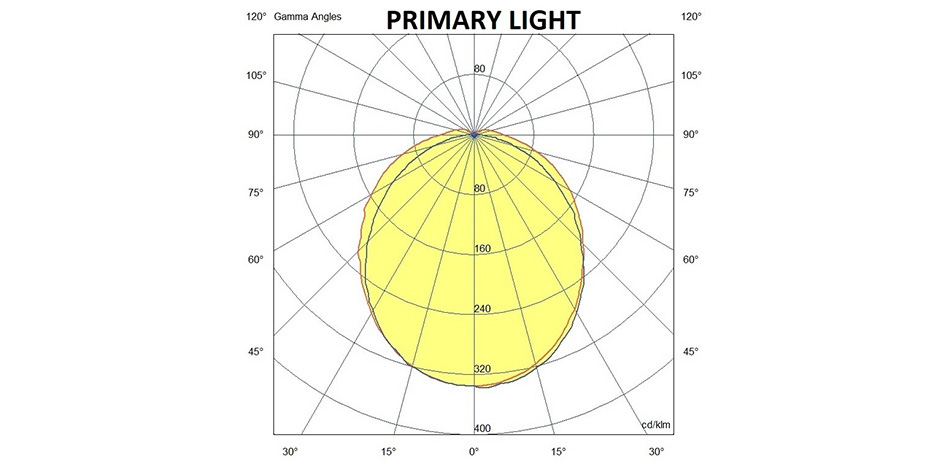

| Optics | 180° | |
| Typical CRI | 85 | |
| Minimum CRI | 80 | |
| SDCM | 3 STEP | |
| Photobiological Risk | RG0 | |
| Luminous Flux Maintenance | L70 B50 80000 | |
| Energy Efficiency Class |
|
Electrical features
| Electrical specifications 1 | Electrical specifications 2 | |
| Input Voltage | 220/240V 0-50/60Hz | |
| Total Absorbed Power | 22W | |
| Power Factor | > 0,9 | |
| Control System | DALI | |
| Driver Lifespan | 100000h | |
| Driver | Included | |
| Power Supply Type | Costant Current | |
| Driver Output | 1050mA | |
| Driver Input | 220-240V~ 0-50/60Hz | |
| Driver Protection | Mains surge 1kV | |
| Through-Wiring | Yes, in the junction box |
Mechanical features
| Housing material | Die-cast aluminum copper free EN AB 44100 |
| Surface treatment | Polyester Painting |
| Housing color | White RAL 9010 |
| IP | IP66 |
| IK | 10 |
| Diffuser / Protective shield | Opal policarbonate flame rating V0 (UL94), UV resistent |
| Cable gland, cable Ø min-max | N°4 PG nickel-plate brass M20x1.5 EMC Øext. cable: min 9mm - max 16mm |
| Mounting | With stainless steel brackets AISI 316L; fixing with M8 screws |
| Corrosion category | Salt Spray Resistance ASTM B117 >1500 hours |
| Operating ambient temperature | -25°C / +45°C |
| Storage ambient temperature | -25°C / +85°C |

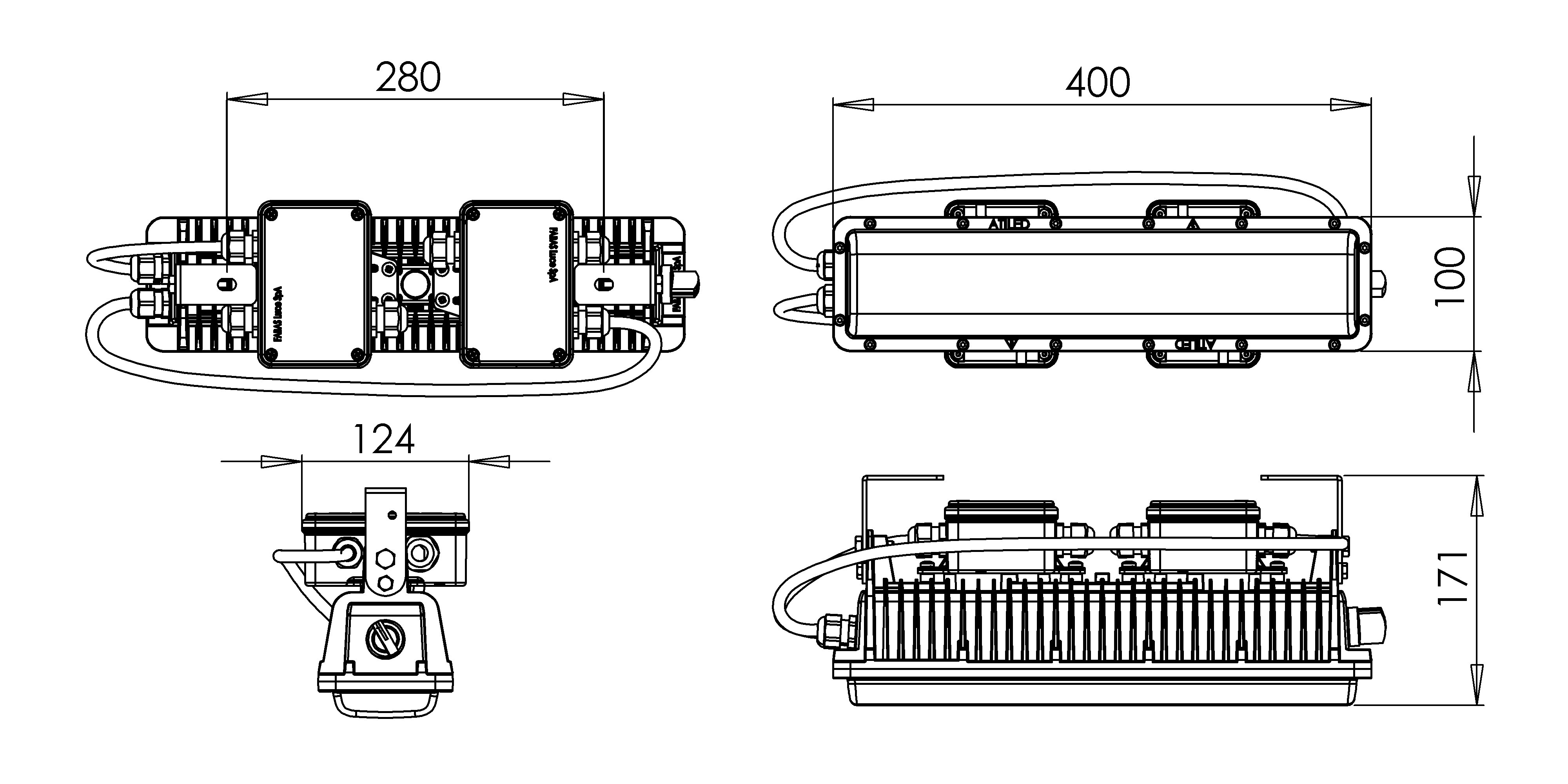

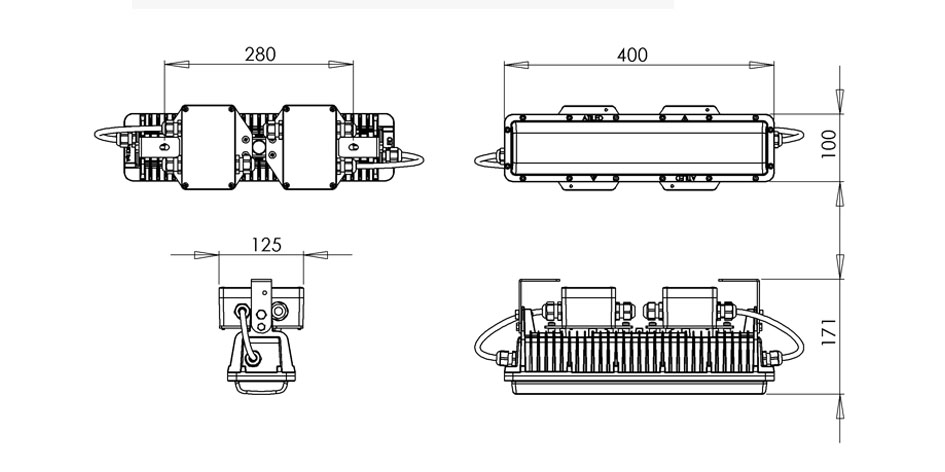

| Item Dimensions | 400x100x171mm - 2,40kg |
Others
| Packaging Dimensions | 490x130x190mm - 2.5kg |
| International standard compliance | EN 60598-1; EN 60598-2-1; IEC 60092-306; IEC 60533; EN 62471 + TR62778; EN55015; EN 61547-1; EN61000-3-2; EN61000-3-3 |
| Eancode | 8019282541363 |
| Made In | Italy |
| Insulation Class |
|
