TVE-CDB
6868-52-049
Lighting features
| Light Source 1 | Light Source 2 | |
| LED Characteristics | SMD | SMD |
| Number of LEDs | 60 | 60 |
| Light Source Lumen | 3000 lm | 300 lm |
| Item Lumen | 2430 lm | 250 lm |
| Light Source Efficiency | 171 lm/W @85°C | 62 lm/W @85°C |
| Item Efficiency | 110 lm/W @85°C | 36 lm/W @85°C |
| Color Temperature | White 3000K | Blue Dominant Wavelength: >465nm <471nm |

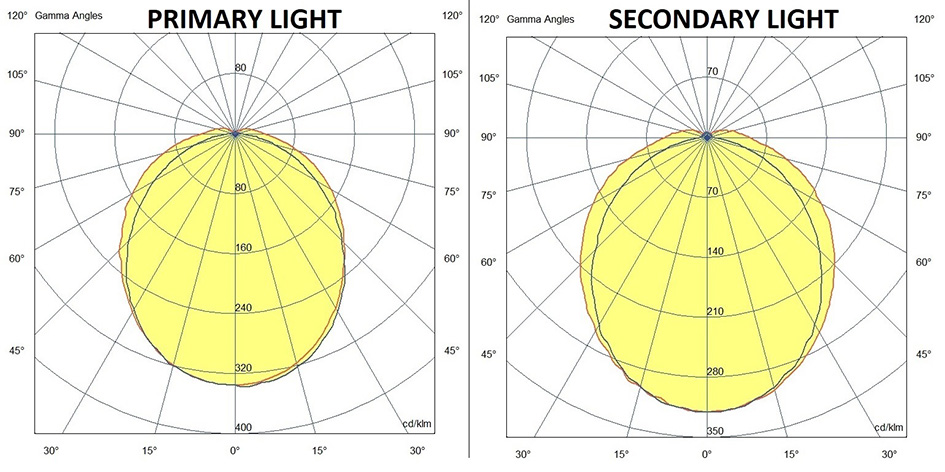

| Optics | 180° | 180° |
| Typical CRI | 85 | |
| Minimum CRI | 80 | |
| SDCM | 3 STEP | |
| Photobiological Risk | RG0 | RG0 |
| Luminous Flux Maintenance | L70 B50 80000 | L70 B50 36000 |
| Energy Efficiency Class |
|
Electrical features
| Electrical specifications 1 | Electrical specifications 2 | |
| Input Voltage | 108/304V ~ 50/60Hz | 108/304V ~ 50/60Hz |
| Total Absorbed Power | 22W | 7W |
| Power Factor | > 0,9 | > 0,9 |
| Control System | With potentiometer on fixture 0-100% | With potentiometer on fixture 0-100% |
| Driver Lifespan | 96000h | 36000h |
| Driver | Included | Included |
| Power Supply Type | Costant Current | Costant Current |
| Driver Output | 1050mA | 250mA |
| Driver Input | 120/277V~ 50/60Hz | 120/277V~ 50/60Hz |
| Driver Protection | Mains surge 2Kv | Mains surge 2Kv |
| Through-Wiring | Yes, in the junction box | Yes, in the junction box |
Mechanical features
| Housing material | Die-cast aluminum copper free EN AB 44100 |
| Surface treatment | Polyester Painting |
| Housing color | White RAL 9010 |
| IP | IP66 |
| IK | 10 |
| Shock proof MIL-S 901D | SI |
| Diffuser / Protective shield | Opal policarbonate flame rating V0 (UL94), UV resistent |
| Cable gland, cable Ø min-max | N°4 PG M20x1.5 EMC, Øext. cable: min 9mm - max 16mm |

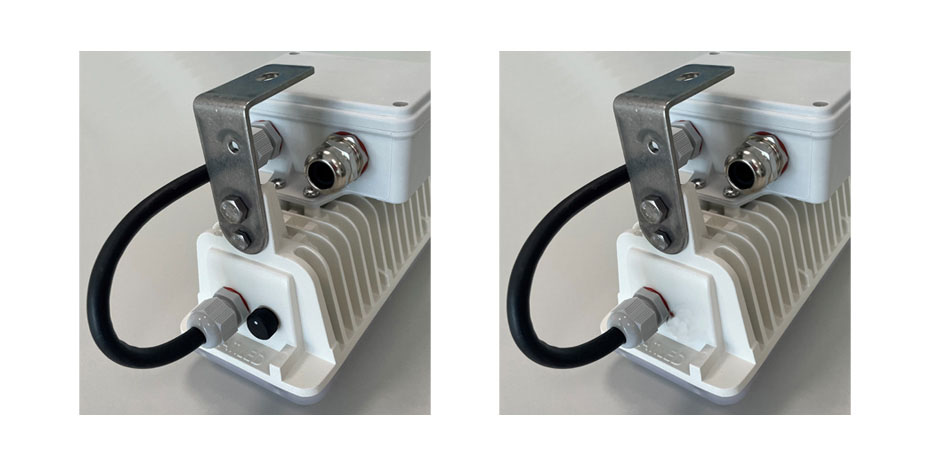

| Mounting | With stainless steel brackets AISI 316L; fixing with M8 screws |
| Corrosion category | Salt Spray Resistance ASTM B117 >1500 hours |
| Operating ambient temperature | -10°C / +45°C |
| Storage ambient temperature | -25°C / +80°C |

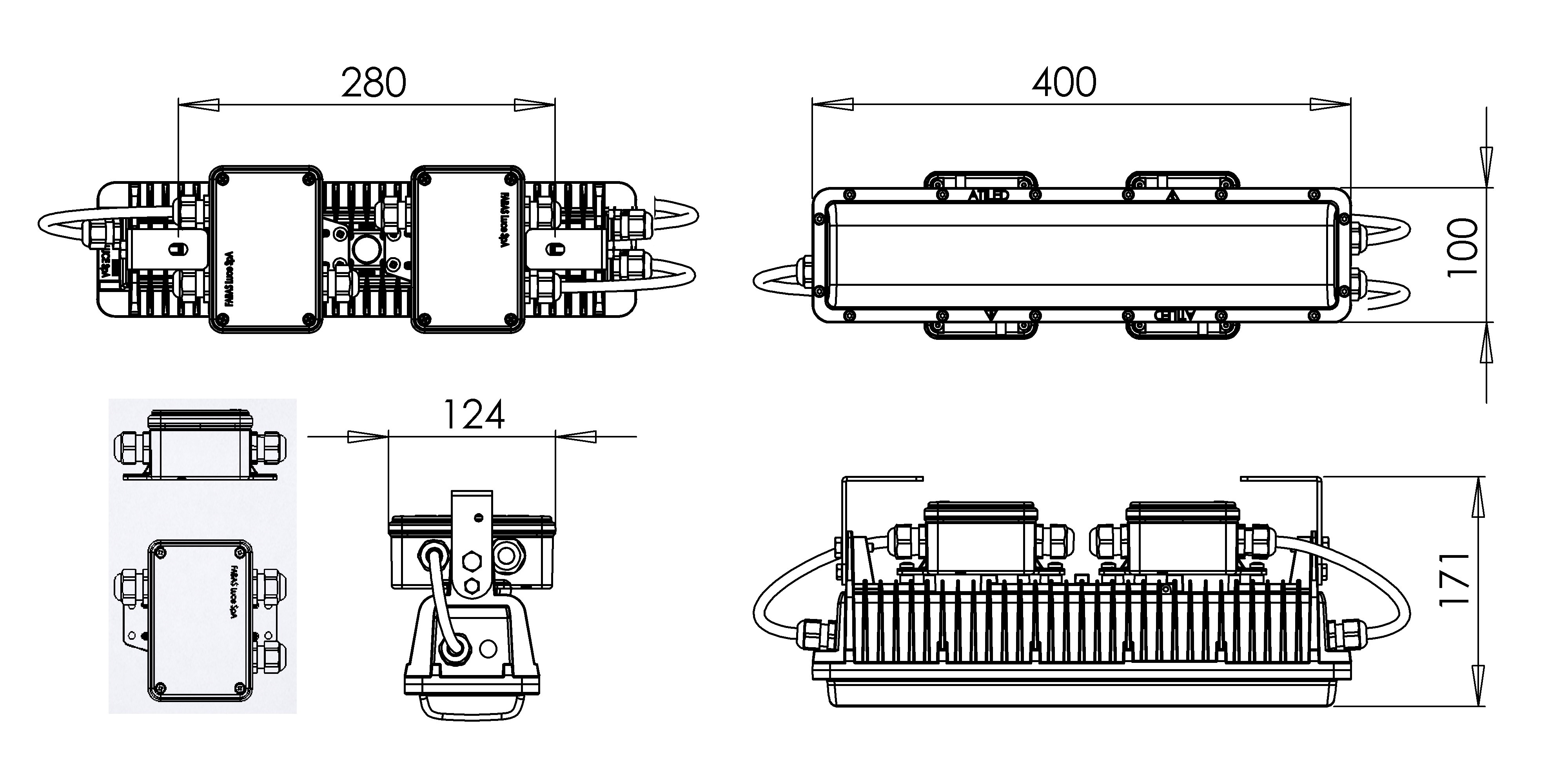

| Item Dimensions | 400x100x171mm - 2,40kg |
Others
| Packaging Dimensions | 490x130x190mm - 2.5kg |
| International standard compliance | EN60598-1; EN60598-2-1; EN62471 + TR62778; VG95373 ed. 2021 and BV120; BV 3000-1; BV 3000-2; U212NFS programme Annex 2 to PTS n° GF333AQ001 Rev.2 |
| Eancode | 8019282557661 |
| Made In | Italy |
| Insulation Class |
|
