TVE WW
6868-52-001
Multipurpose lamp for living rooms
Lighting features
| LED Characteristics | SMD |
| Number of LEDs | 60 |
| Light Source Lumen | 3000 lm |
| Item Lumen | 2430 lm |
| Light Source Efficiency | 171 lm/W @85°C |
| Item Efficiency | 110 lm/W @85°C |
| Color Temperature | White 3000K |
| Optics | 180° |
| Typical CRI | 85 |
| Minimum CRI | 80 |
| SDCM | 3 STEP |
| Photobiological Risk | RG0 |
| Luminous Flux Maintenance | L70 B50 80000 |
| Energy Efficiency Class |
|
Electrical features
| Input Voltage | 100/240V AC 50/60Hz |
| Total Absorbed Power | 22W |
| Power Factor | > 0,9 |
| Control System | On/Off |
| Driver Lifespan | 100000 h |
| Driver | Included |
| Power Supply Type | Costant Current |
| Driver Output | 1050mA |
| Driver Input | 100/240V~ 50/60Hz |
| Driver Protection | Mains surge 1kV |
| Through-Wiring | Yes, in the junction box |
Mechanical features
| Housing material | Die-cast aluminum copper free EN AB 44100 |
| Surface treatment | Polyester Painting |
| Housing color | White RAL 9010 |
| IP | IP66 |
| IK | 10 |
| Shock proof MIL-S 901D | SI |
| Diffuser / Protective shield | Opal policarbonate flame rating V0 (UL94), UV resistent |
| Cable gland, cable Ø min-max | N°2 PG M20x1.5, Øext. cable: min 6mm - max 12mm |
| Mounting | With stainless steel brackets AISI 316L; fixing with M8 screws |
| Corrosion category | Salt Spray Resistance ASTM B117 >1500 hours |
| Operating ambient temperature | -25°C / +55°C |
| Storage ambient temperature | -25°C / +85°C |

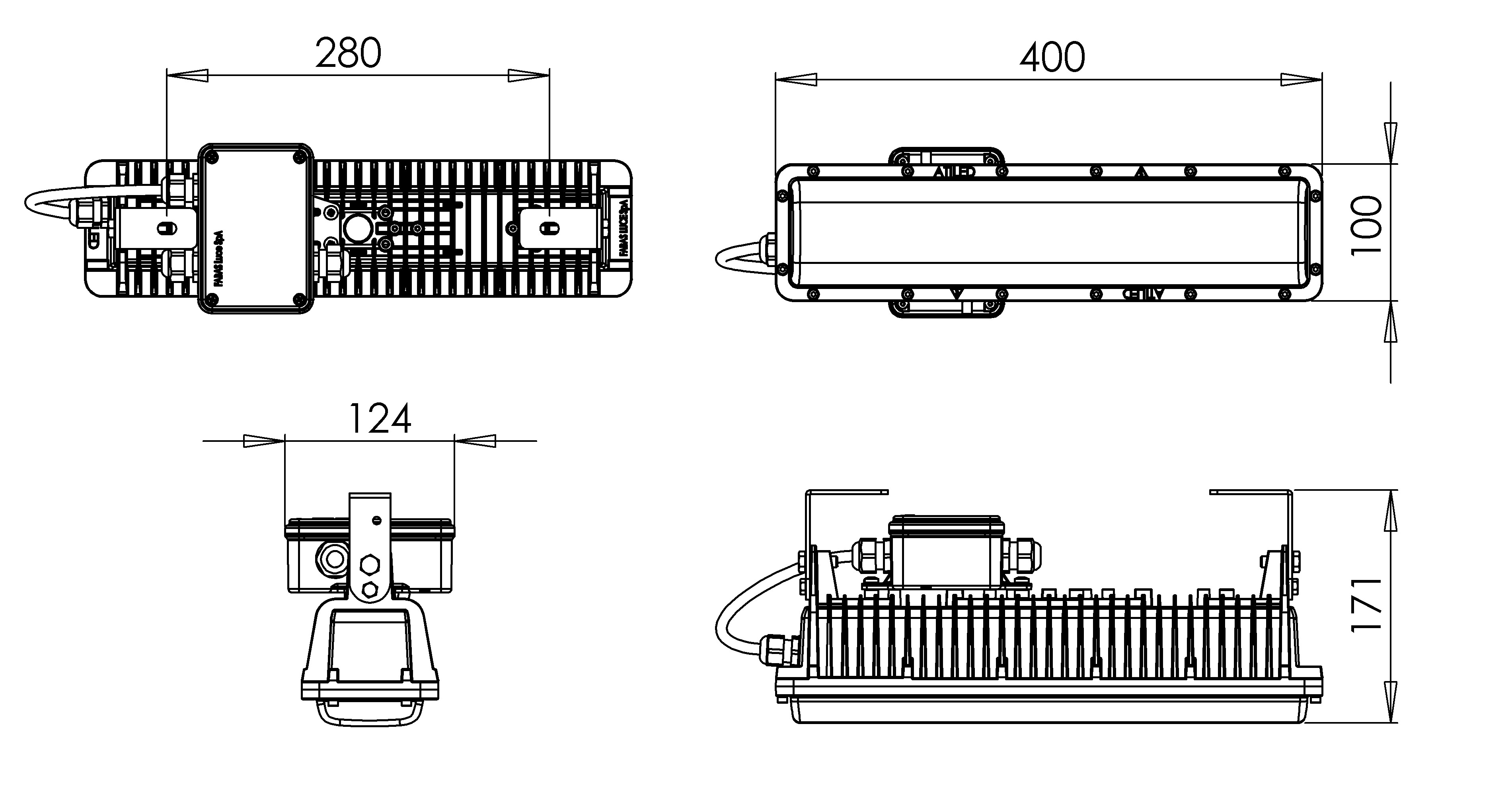

| Item Dimensions | 400x100x171mm - 2,40kg |
Others
| Packaging Dimensions | 490x130x190mm - 2.5kg |
| International standard compliance | EN 60598-1; EN 60598-2-1; IEC 60092-306; IEC 60533; EN 62471 + TR62778; EN55015; EN 61547-1; EN61000-3-2; EN61000-3-3 |
| Eancode | 8019282101475 |
| Made In | Italy |
| Insulation Class |
|
