RSH
6822-07-002

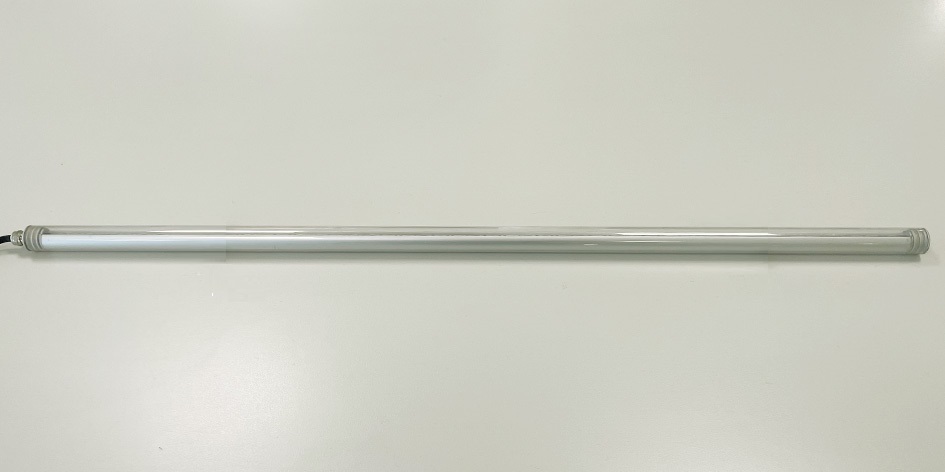

tubular orientable RED LED light for ceiling or wall
Lighting features
| LED Characteristics | SMD |
| Number of LEDs | 42 |
| Item Lumen | 130 lm |
| Color Temperature | Red Dominant Wavelength: >619nm <625nm |
| Optics | 180° |
| Photobiological Risk | RG0 |
Electrical features
| Input Voltage | 24V DC |
| Total Absorbed Power | 3W |
Mechanical features
| Housing material | Aluminum frame and polycarbonate |
| IP | IP65 |
| Diffuser / Protective shield | Transparent self-extinguishing polycarbonate |
| Mounting | With supports not included (see items: 6404-50-019, 020 or 021) |
| Cable | 1m, H07RN-F 2x1 |
| Operating ambient temperature | -25°C / +45°C |
| Storage ambient temperature | -20°C / +60°C |

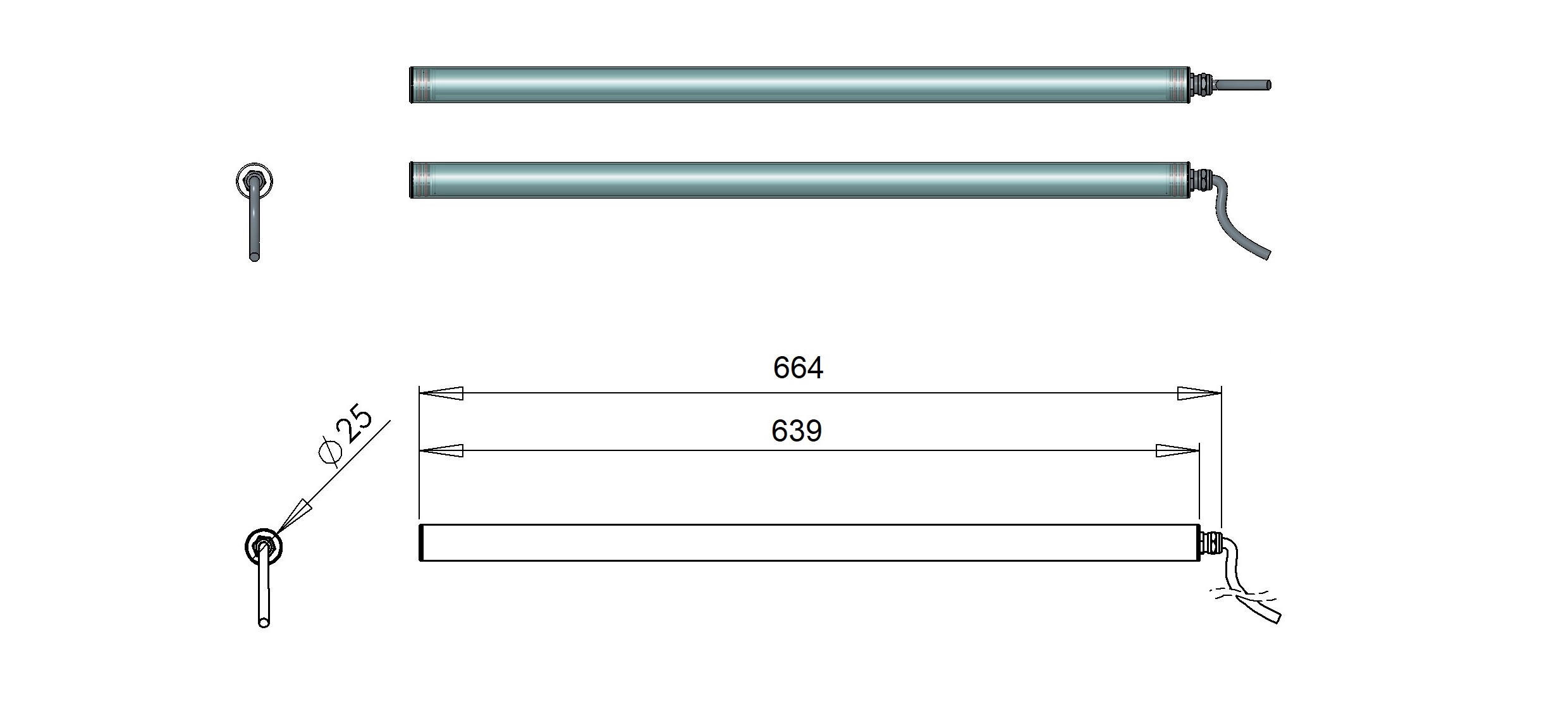

| Item Dimensions | 639mm Ø25mm - 0,75kg |
Others
| Luminous Flux Maintenance | L70 B50 36000 |
| Packaging Dimensions | 0.8kg |
| International standard compliance | EN 60598-1; EN60598-2-1; EN62471 + IEC TR 62778; EN55015; EN61547; EN IEC 63000 |
| Eancode | 8019282557722 |
| Made In | Italy |
| Insulation Class |
|
