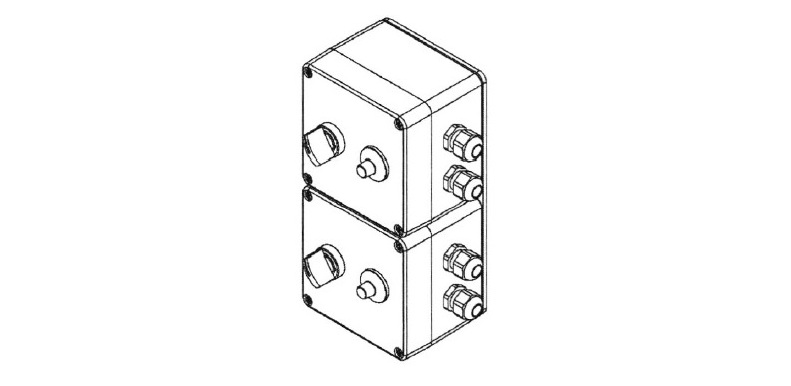

MASTER DIMMER 0-10V CON SELETTORE
6868-50-092
Electrical features
| Input Voltage | 100/240V AC 50/60Hz |
| Total Absorbed Power | 5W |
| Power Factor | > 0,9 |
| Control System | 0-10V |
| Through-Wiring | No |
Mechanical features
| Housing material | Aluminum frame |
| Surface treatment | Fluorozirconium passivation |
| Housing color | GREY RAL7035 |
| IP | IP56 |
| IK | 08 |
| MIL-S 9001D Grade A- Class I – Type A | SI |
| Cable gland, cable Ø min-max | n°2 PG EMC M20x1.5, Øext. cable: min 9mm - max 16mm |
| Mounting | With 4 M6 cylindrical head screws, hexagon socket |
| Operating ambient temperature | -20°C / +45°C |
| Storage ambient temperature | -20°C / +60°C |
| Item Dimensions | 160x90x160mm - 2kg |
Others
| Packaging Dimensions | 2.5kg |
| International standard compliance | EN 62368-1; BV 3000-1; BV 3000-2; MIL STD-901D; VG 95373 |
| Eancode | 8019282564089 |
| Made In | Italy |
| Insulation Class |
|
