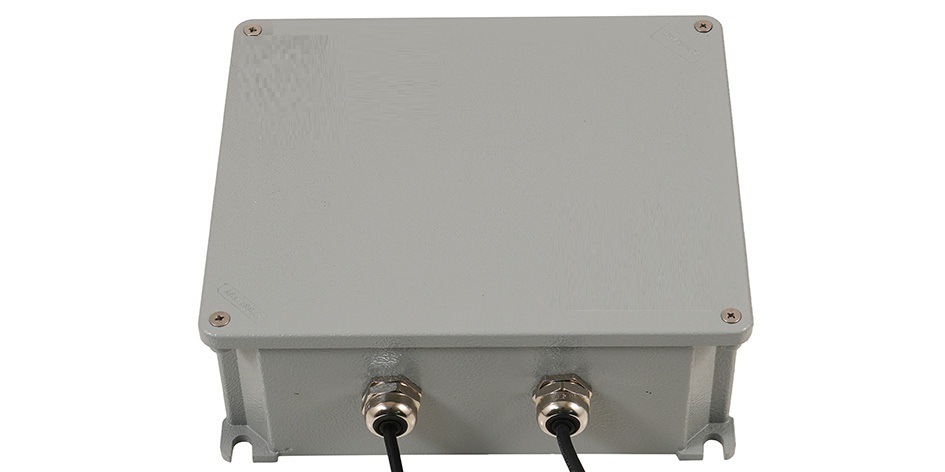

Stabilizzatore tensione 24VDC 30W - IP66
6101-50-108
24V DC - DC converter 30W
Electrical features
| Input Voltage |
18/72V DC |
| Total Absorbed Power |
30W |
| Control System |
On/Off |
| Driver |
Included |
| Power Supply Type |
Costant Voltage |
| Driver Output |
24VDC |
| Driver Input |
18-72VDC |
| Driver Protection |
Mains surge 1kV; (L/N - PE) 2kV |
| Through-Wiring |
No |
Mechanical features
| Housing color |
Grey RAL 7040
|
| IP |
IP66 / IP67
|
| IK |
08
|

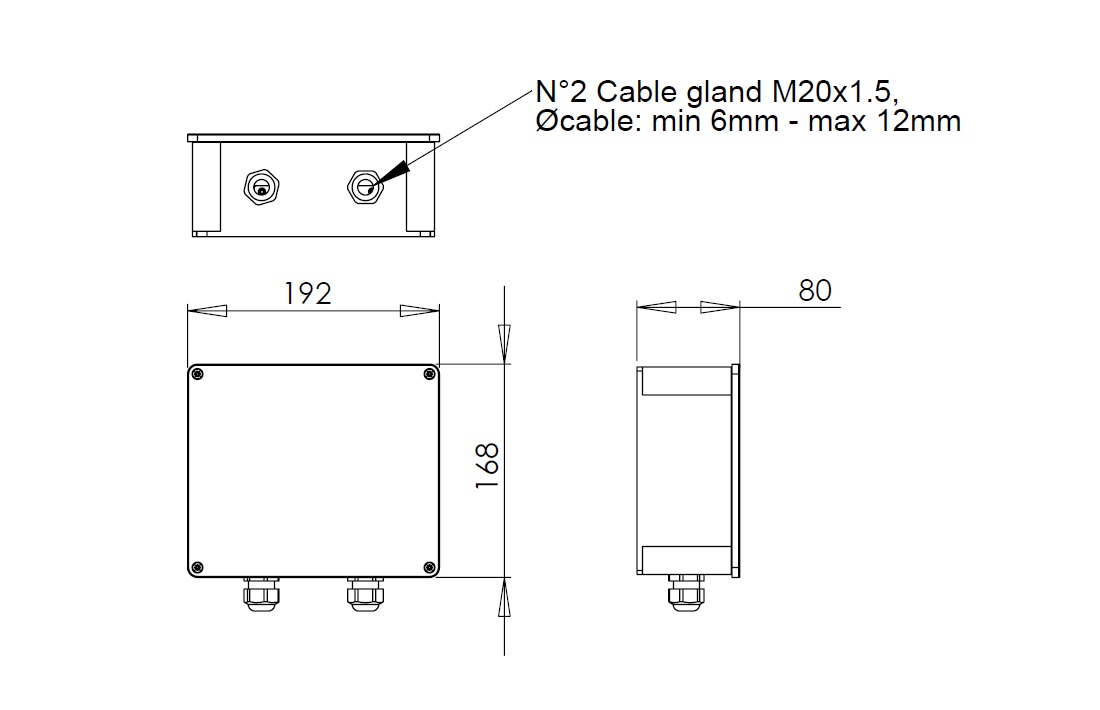

| Cable gland, cable Ø min-max |
N°2 PG M20x1.5, Øext. cable: min 6mm - max 12mm
|
| Operating ambient temperature |
-40°C / +50°C
|
| Storage ambient temperature |
-40°C / +70°C
|
| Item Dimensions |
168x80x192mm - 1kg
|
Others
| Driver Lifespan |
50000
|
| Packaging Dimensions |
1.2kg
|
| International standard compliance |
IEC 62368-1; EN55032; EN61000-3-2; EN61000-3-3; EN61000-4-2; EN61000-4-3; EN61000-4-4; EN61000-4-5; EN61000-4-6
|
| Eancode |
8019282556305
|
| Made In |
Italy
|
| Insulation Class |
|
