PSAR B 24 VDC
6823-89-254

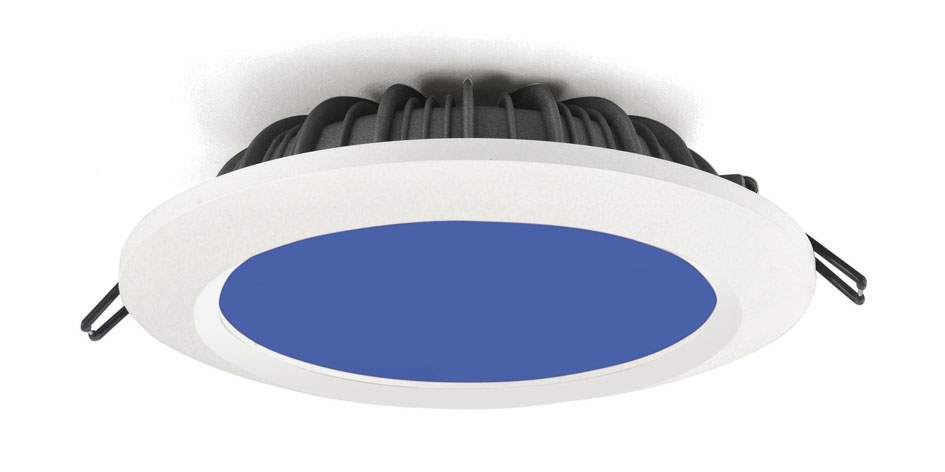

Blue Light - Recessed fixture for living rooms
Lighting features
| LED Characteristics |
SMD
|
| Number of LEDs |
6
|
| Item Lumen |
7 lm
|
| Item Efficiency |
12 lm/W @85°C
|
| Color Temperature |
Blue Dominant Wavelength: >465nm <471nm
|
| Optics |
Opal
|
| Photobiological Risk |
RG0
|
| Luminous Flux Maintenance |
L70 B50 36000
|
Electrical features
| Input Voltage |
24V DC (min.22V / max.28V) |
| Total Absorbed Power |
0W |
| Control System |
On/Off |
| Power Supply Type |
Costant Voltage |
Mechanical features
| Housing material |
Aluminum frame
|
| Housing color |
White RAL 9010
|
| IP |
IP44 Front side
|
| Diffuser / Protective shield |
Opal acrylic
|
| Mounting |
Recessed
|
| Hole dimension |
125
|
| Cable |
Cm.20
|
| Operating ambient temperature |
-20°C / +45°C
|
| Storage ambient temperature |
-20°C / +60°C
|

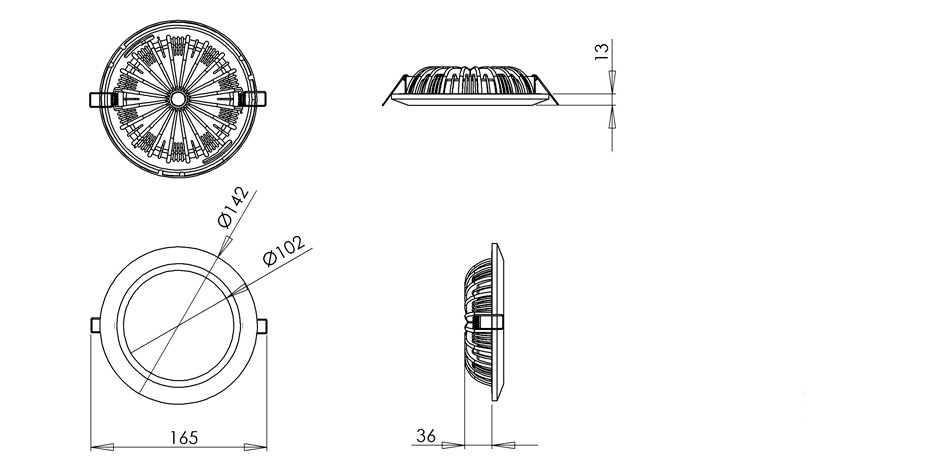

| Item Dimensions |
49mm Ø142mm - 0,7kg
|
Others
| Packaging Dimensions |
150x100x150mm - 0.35kg
|
| International standard compliance |
EN 60598-1; EN60598-2-2; EN62471 + IEC TR 62778; EN55015; EN61547; EN 50581;
|
| Eancode |
8019282513087
|
| Insulation Class |
|
