PSAR2 20W NW DALI - 110V -
6823-04-296

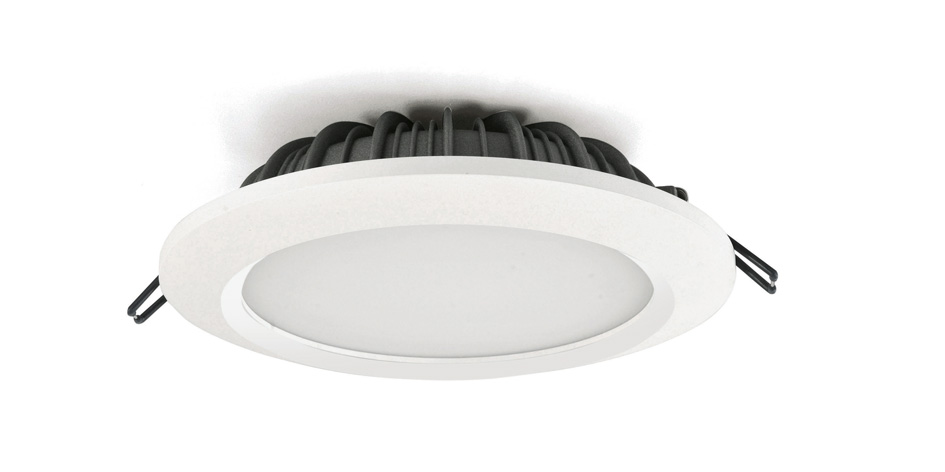

Recessed fixture for living rooms
Lighting features
| LED Characteristics | SMD |
| Number of LEDs | 48 |
| Light Source Lumen | 2780 lm |
| Item Lumen | 2021 lm |
| Light Source Efficiency | 154 lm/W @85°C |
| Item Efficiency | 101 lm/W @85°C |
| Color Temperature | White 4000K |
| Optics | Opal |
| Minimum CRI | 80 |
| SDCM | 3 STEP |
| Photobiological Risk | RG0 |
| Luminous Flux Maintenance | L70 B50 50000 |
| Energy Efficiency Class |
|
Electrical features
| Input Voltage | 110/127V AC - 220/240V AC 50/60Hz |
| Total Absorbed Power | 20W |
| Power Factor | > 0,9 |
| Control System | DALI |
| Driver Lifespan | 10 Years warranty |
| Driver | Included |
| Power Supply Type | Costant Current |
| Driver Output | 500mA |
| Driver Input | 99-264V~ 50/60Hz |
| Driver Protection | Mains surge 8kV |
Mechanical features
| Housing material | Aluminum frame |
| Housing color | White RAL 9010 |
| IP | IP44 Front side |
| Diffuser / Protective shield | Opal policarbonate |
| Mounting | Recessed |

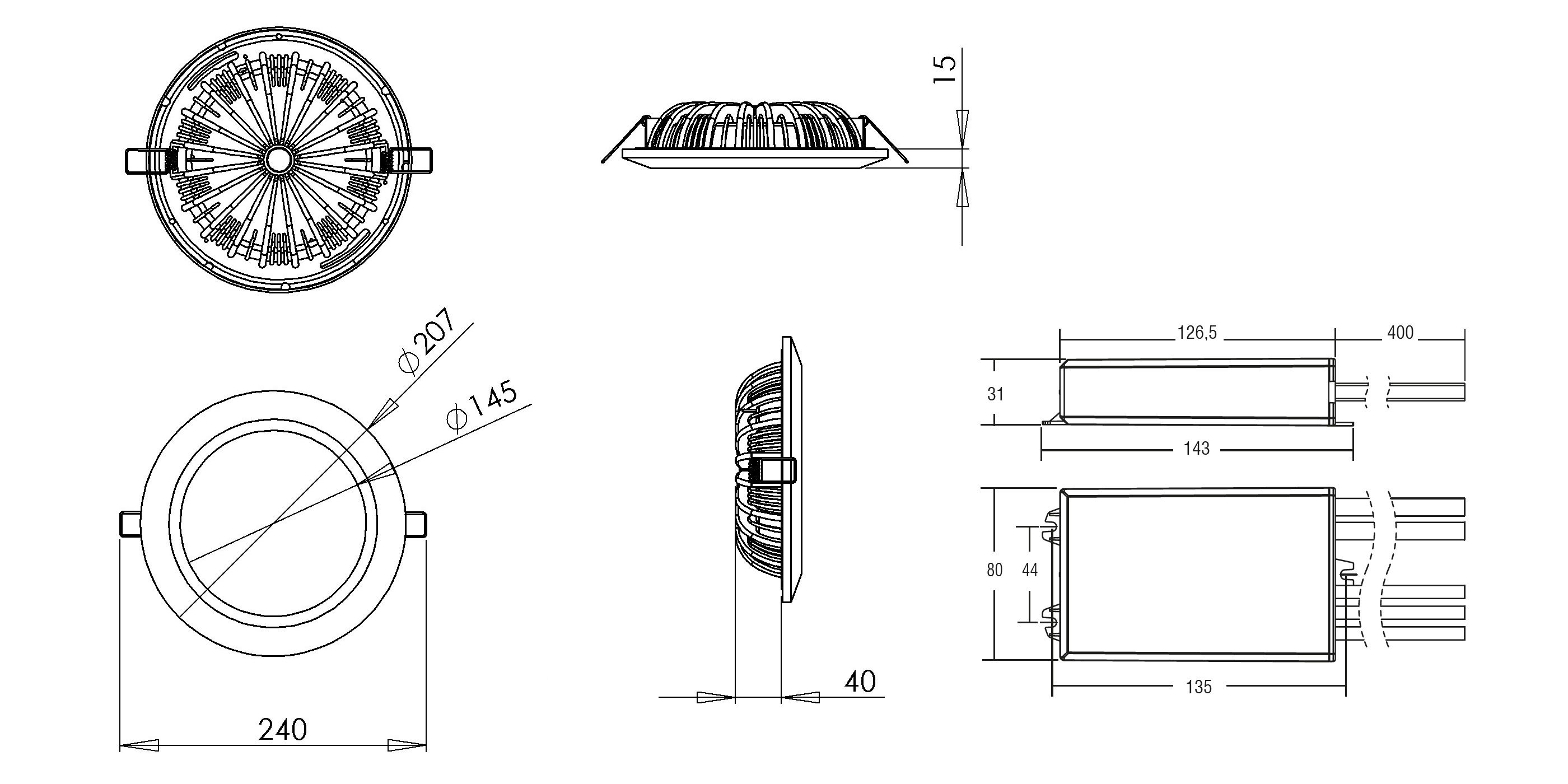

| Hole dimension |
180
|
| Cable | Cm.35 - H05RN-F 2x1 |
| Operating ambient temperature | -20°C / +45°C |
| Storage ambient temperature | -20°C / +60°C |
| Item Dimensions | 55mm Ø207mm - 1.4kg |
Others
| Packaging Dimensions | 340x220x70mm - 1.62kg |
| International standard compliance | EN 60598-1; EN60598-2-2; EN62471 + IEC TR 62778; EN55015; EN61000-3-2; EN61000-3-3; EN 50581; |
| Eancode | 8019282554592 |
| Insulation Class |
|
