ELMA 1000
6512-54-003
Lighting features
| LED Characteristics | SMD |
| Number of LEDs | 80 LED |
| Light Source Lumen | 3580 lm |
| Item Lumen | 2242 lm |
| Light Source Efficiency | 180 lm/W @85°C |
| Color Temperature | White 4000K |
| Optics | Opal |
| Typical CRI | TYP 85 |
| Luminous Flux Maintenance | >100.000 h. L80 B10 |
| Energy Efficiency Class |
|
Electrical features
| Input Voltage | 220/240V AC 50/60Hz |
| Total Absorbed Power | 23W |
| Control System | On/Off |
| Driver | Included |
Mechanical features
| Housing material | Aluminum frame and polycarbonate |
| Housing color | White |
| IP | IP40 |
| IK | 08 |
| Operating ambient temperature | -25°C / +45°C |

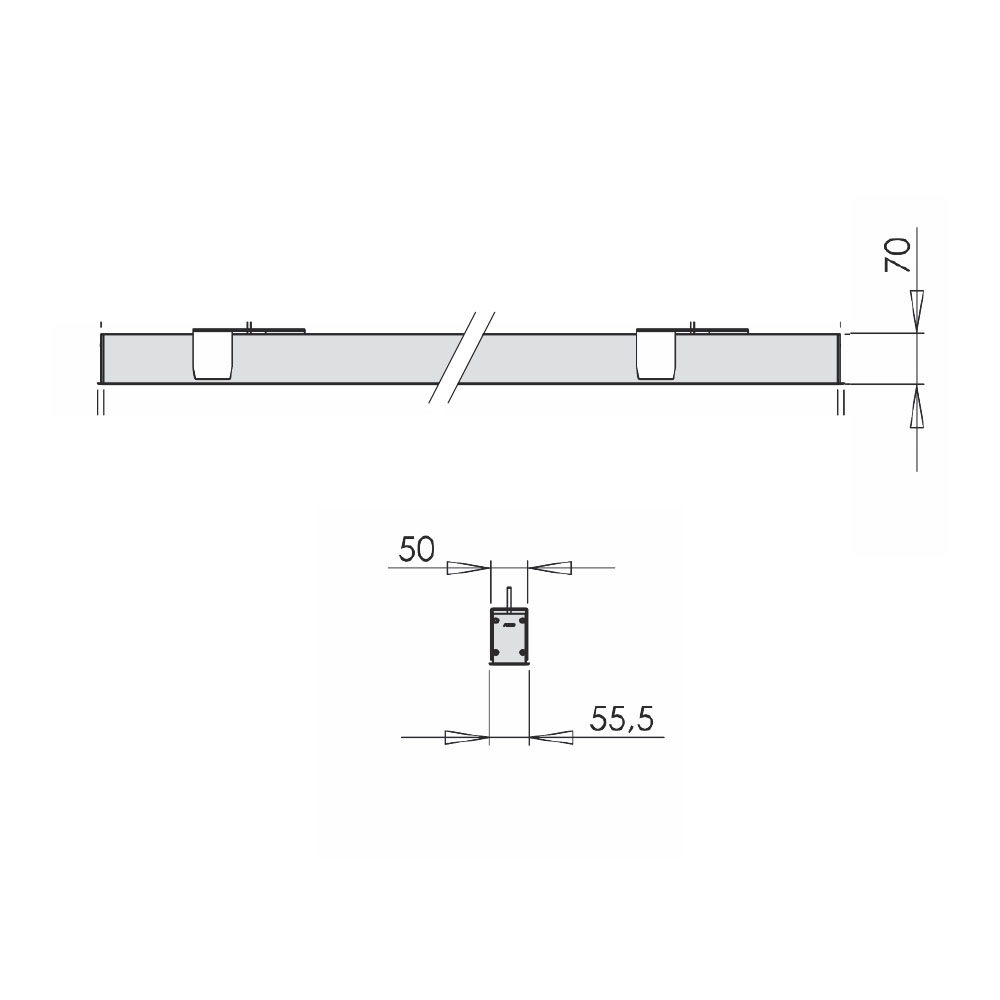

| Item Dimensions | 55.5x1000x70mm - 2,20kg |
Others
| Eancode | 8019282536772 |
| Made In | Italy |
| Insulation Class |
|
