GALCOR 32W
6953-04-154

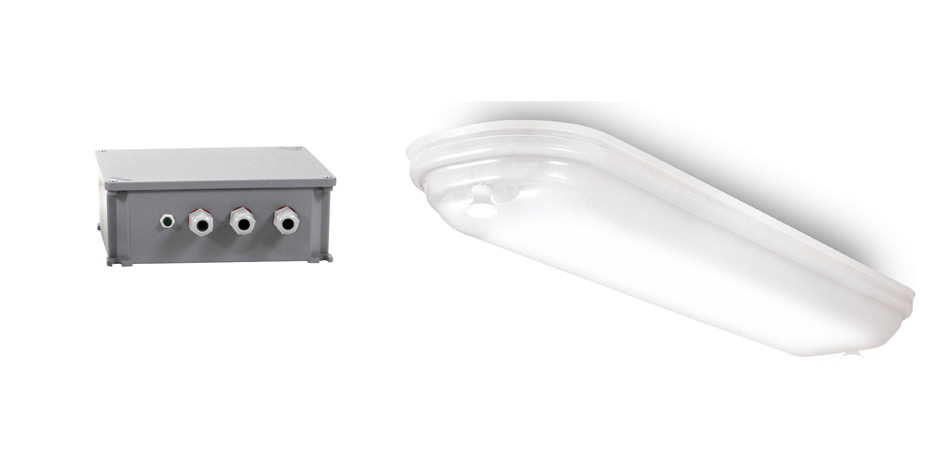

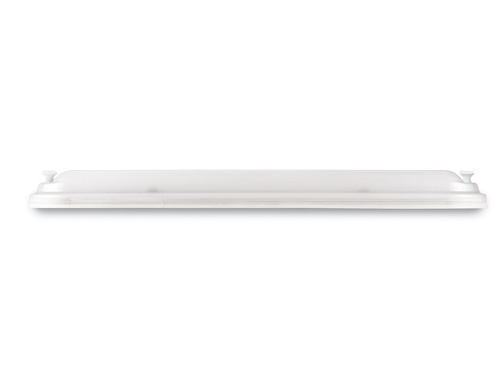

LED Light fixture USPHS compliant for galley, laundry, NBCR decontamination station- With emergency battery.
Lighting features
| LED Characteristics |
SMD
|
| Number of LEDs |
96
|
| Light Source Lumen |
4992 lm
|
| Item Lumen |
3428 lm
|
| Light Source Efficiency |
167 lm/W @85°C
|
| Item Efficiency |
107 lm/W @85°C
|
| Color Temperature |
White 4000K
|

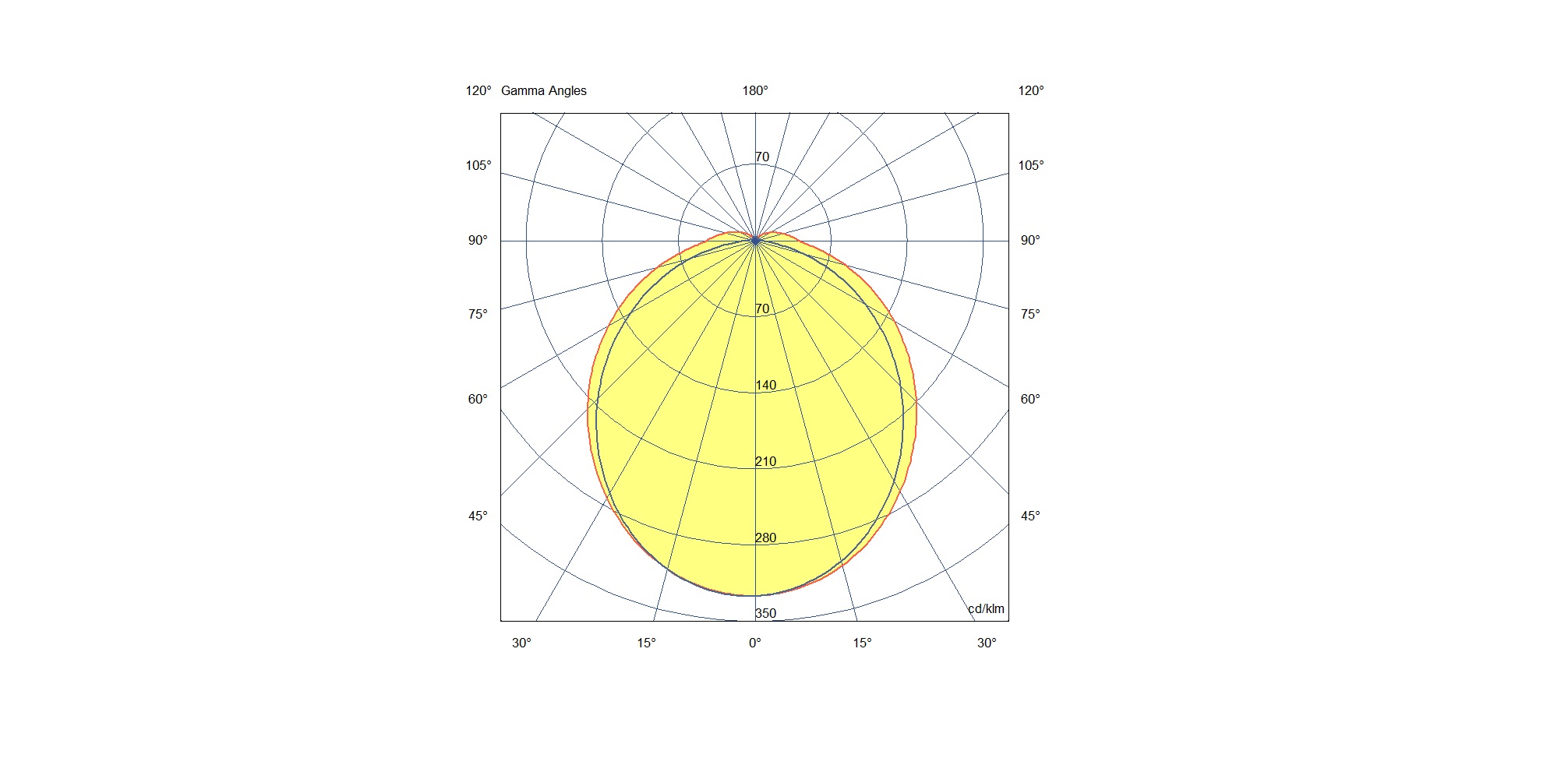

| Optics |
180°
|
| Typical CRI |
85
|
| Minimum CRI |
80
|
| SDCM |
3 STEP
|
| Photobiological Risk |
RG0
|
| Luminous Flux Maintenance |
L70 B50 80.000
|
| Emergency Function |
YES - NiMH batteries
|
| Emergency Lumen |
650lm for 1,5 hours (a 5 hours version is planned)
|
| Energy Efficiency Class |
|
Electrical features
| Input Voltage |
120/277V AC 50/60Hz |
| Total Absorbed Power |
32W |
| Power Factor |
> 0,95 |
| Control System |
On/Off |
| Driver Lifespan |
100000h 50000 Inverter |
| Driver |
Included |
| Power Supply Type |
Costant Current |
| Driver Output |
850mA |
| Driver Input |
220/240V 0-50/60Hz |
| Driver Protection |
Mains surge 1kV; (L/N - PE) 2kV |
| Through-Wiring |

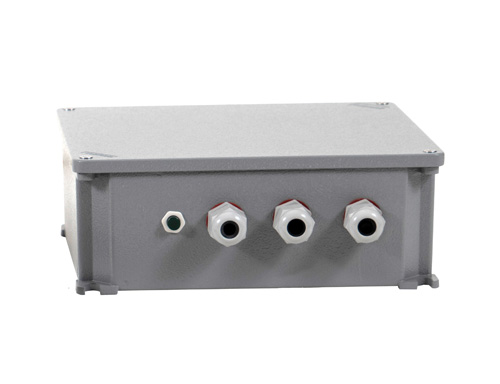

Yes, in the external emergency box |
Mechanical features
| Housing material |
Stainless steel AISI 316
|
| IP |
IP66 / IP67
|
| Shock proof MIL-S 901D |
SI
|
| Diffuser / Protective shield |
Opal policarbonate flame rating V0 (UL94), UV resistent
|

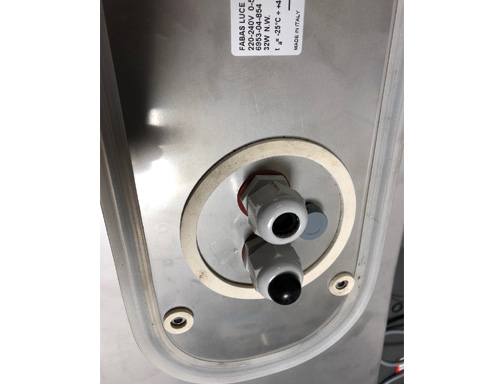

| Cable gland, cable Ø min-max |
N°2 PG M20x1.5, Øext. cable: min 6mm - max 12mm
|
| Mounting |
With 6 screws 4,2x12mm
|
| Operating ambient temperature |
-0°C / +45°C
|
| Storage ambient temperature |
-0°C / +50°C
|

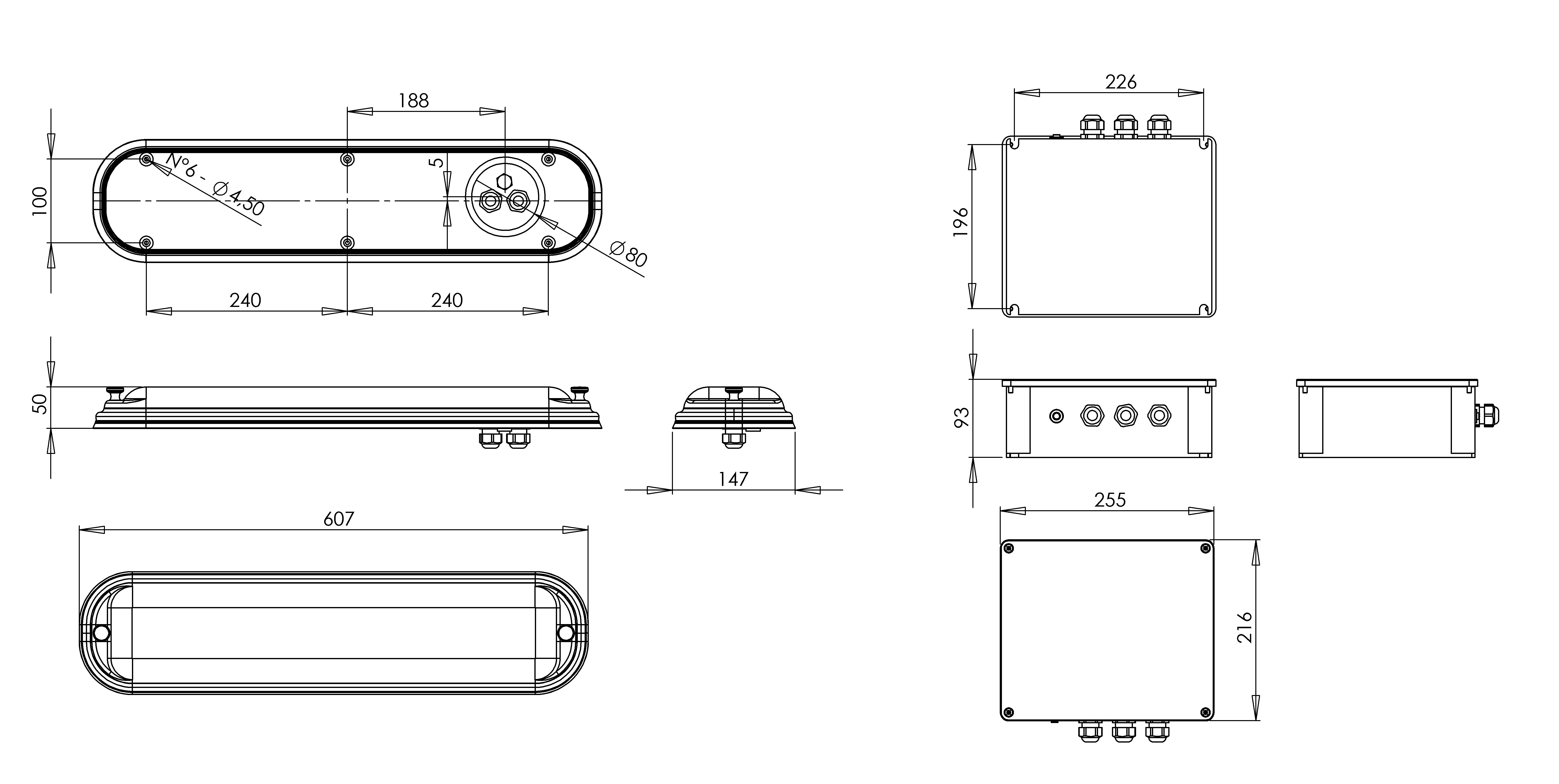

| Item Dimensions |
147x607x50mm - 5,4kg
|
Others
| Packaging Dimensions |
170x660x105mm - 5.5kg
|
| International standard compliance |
PENDING.... EN60598-1; EN60598-2-1; EN60598-2-22; IEC60092-306; IEC60533; EN62471 + TR62778; EN62493
|
| Made In |
Italy
|
| Insulation Class |
|
