FGL40-NW-115V
6517-04-014

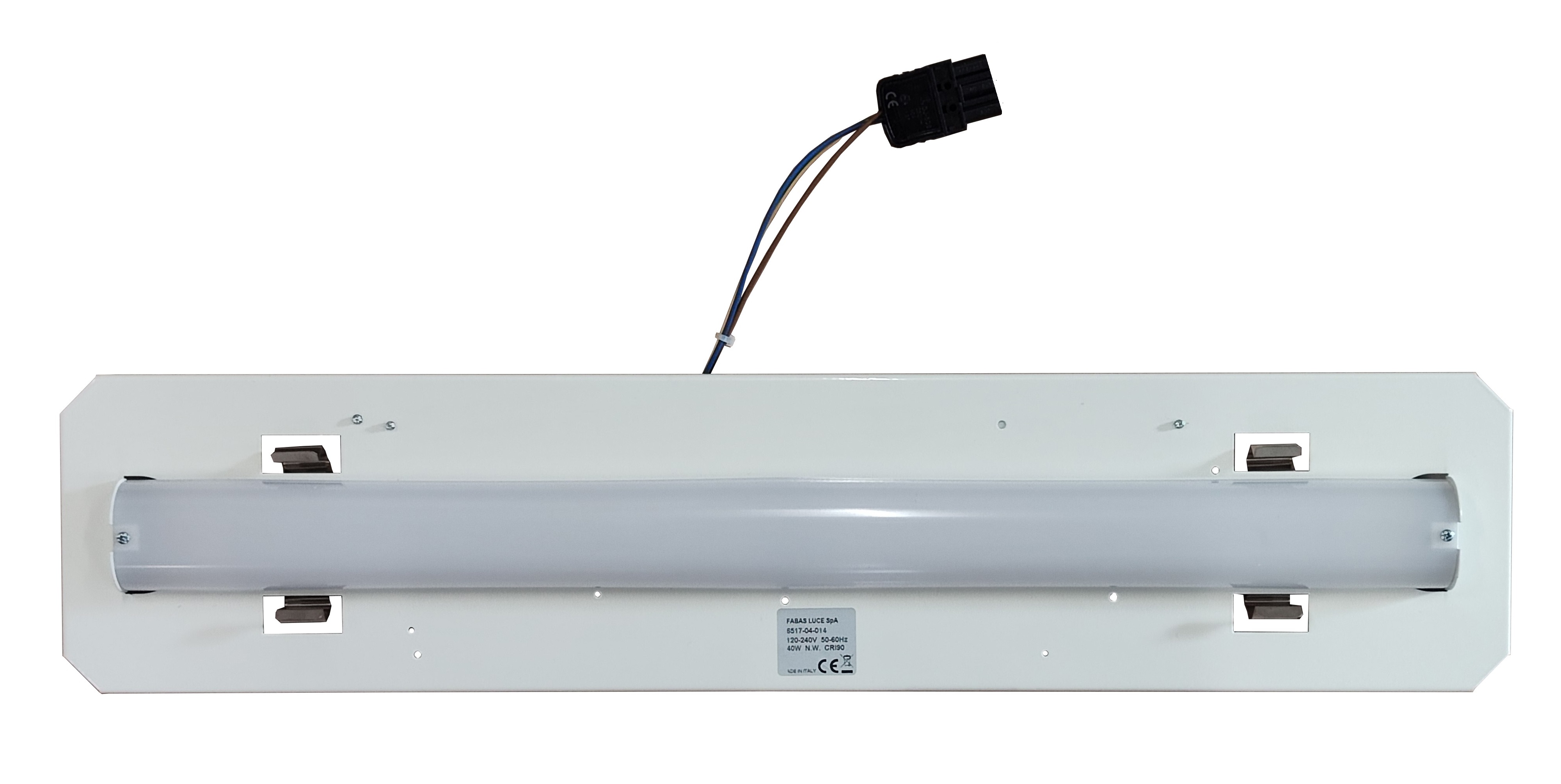

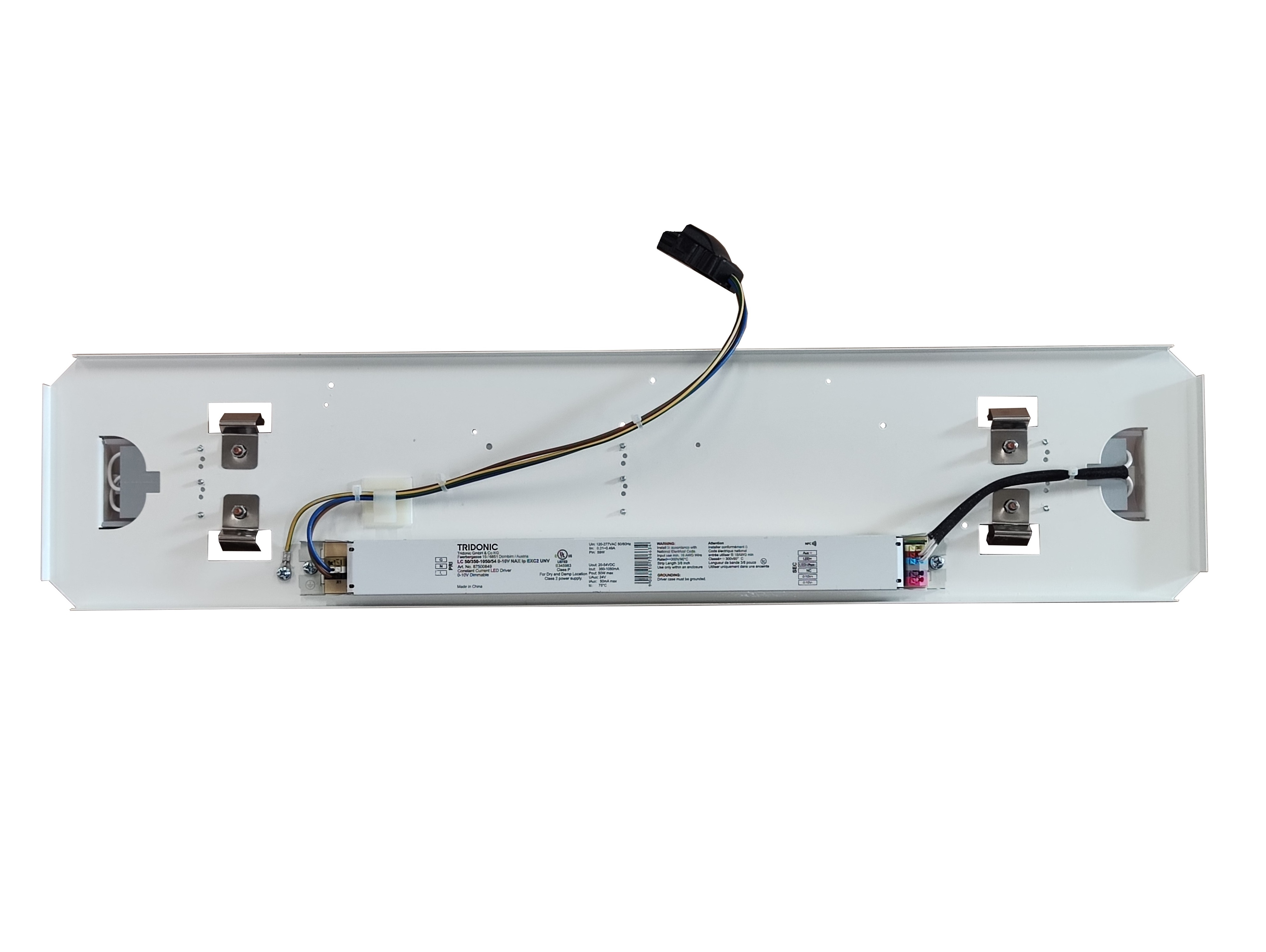

High efficiency LED retrofit kit for existing light fixtures equipped with T8 or T5 fluorescent linear tubes. LED boards and connectorized power supply already mounted on new internal gear tray. Quick and simple to install: no electric or mechanical modification, no use of special tools.
Lighting features
| LED Characteristics | SMD |
| Number of LEDs | 224 |
| Light Source Lumen | 5662 lm |
| Light Source Efficiency | 163 lm/W @85°C |
| Color Temperature | White 4000K |

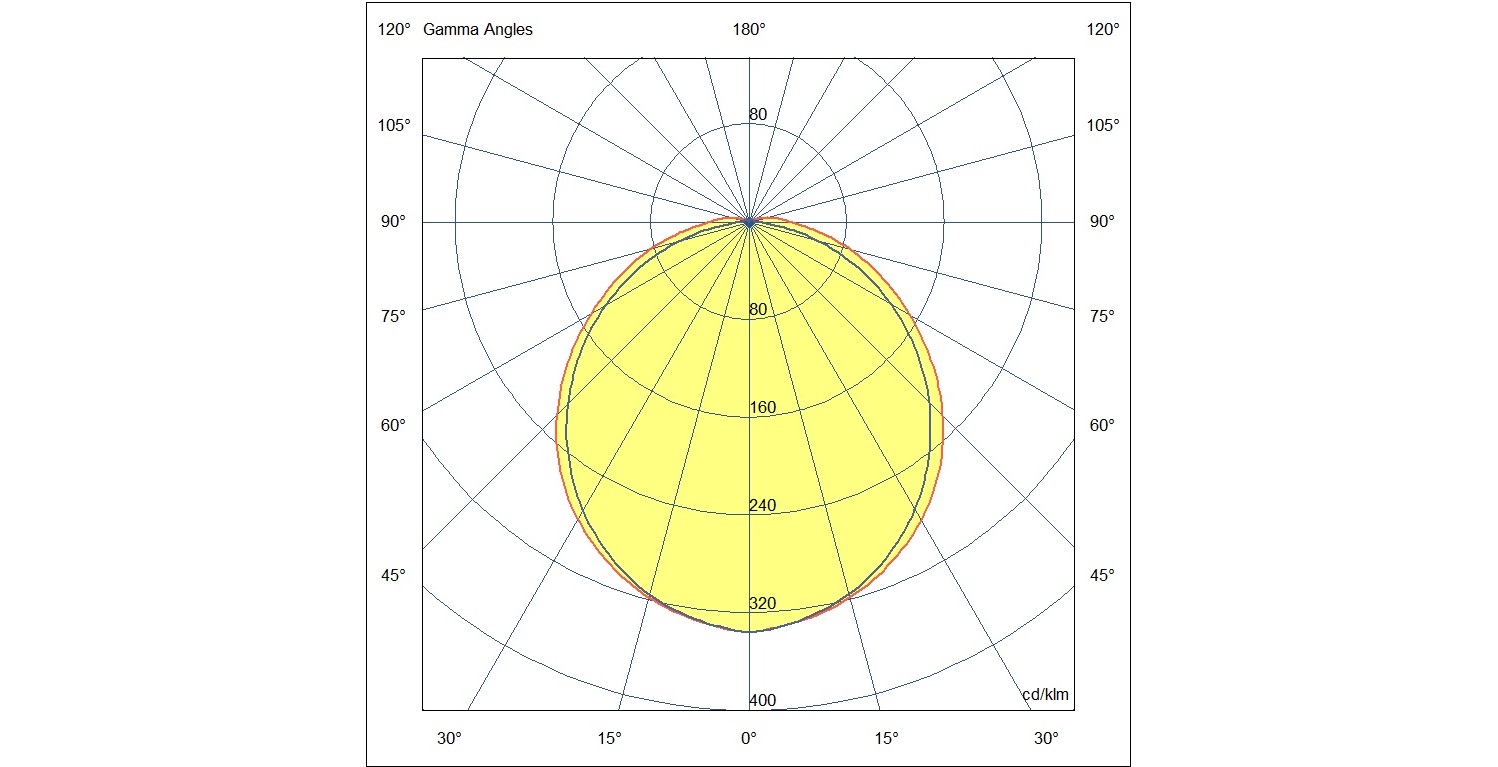

| Optics | 180° |
| Typical CRI | 92 |
| Minimum CRI | 90 |
| SDCM | 3 STEP |
| Photobiological Risk | RG0 |
| Luminous Flux Maintenance | L80 B10 >75.000 |
| Energy Efficiency Class |
|
Electrical features
| Input Voltage | 120/277V AC 50/60Hz |
| Total Absorbed Power | 40W |
| Power Factor | >0,95 |
| Control System | No |
| Driver Lifespan | 100.000 h with failure rate less than 10% |
| Driver | Included |
| Power Supply Type | Costant Current |
| Driver Output | 800mA |
| Driver Input | 108–305 VAC 50/60Hz |
| Driver Protection | Mains surge 2Kv |
| Through-Wiring | Yes, in the lamp |
Mechanical features
| Housing material | Metal frame |
| Surface treatment | Painting |
| Housing color | White RAL 9016 |
| IP | IP20 |
| Diffuser / Protective shield | Opal policarbonate |
| Operating ambient temperature | -25°C / +55°C |
| Storage ambient temperature | -25°C / +70°C |

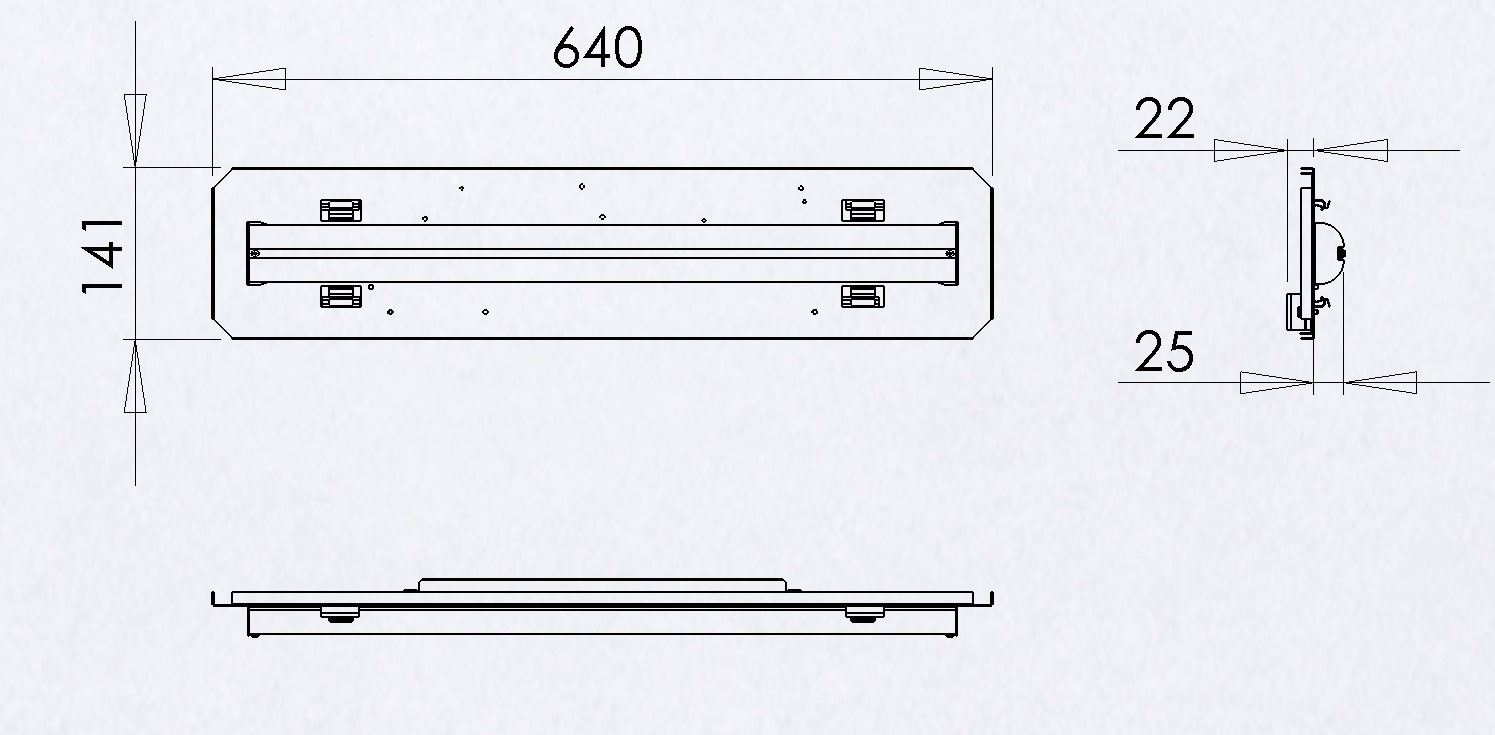

| Item Dimensions | 141x 47x 640mm - 1,2kg |
Others
| International standard compliance | EN 60598-1; EN 60598-2-1; IEC 60533; EN 62471 + TR62778; EN50581 |
| Eancode | 8019282557937 |
| Made In | Italy |
| Insulation Class |
|
