FGL20-NW-115V
6517-04-013

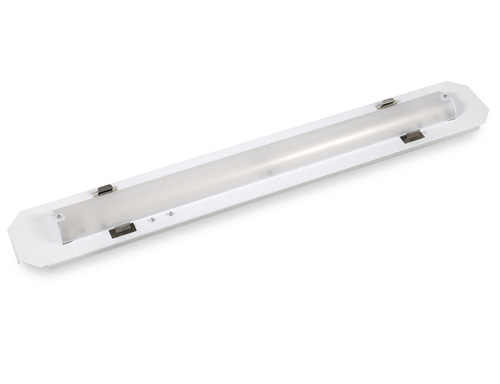

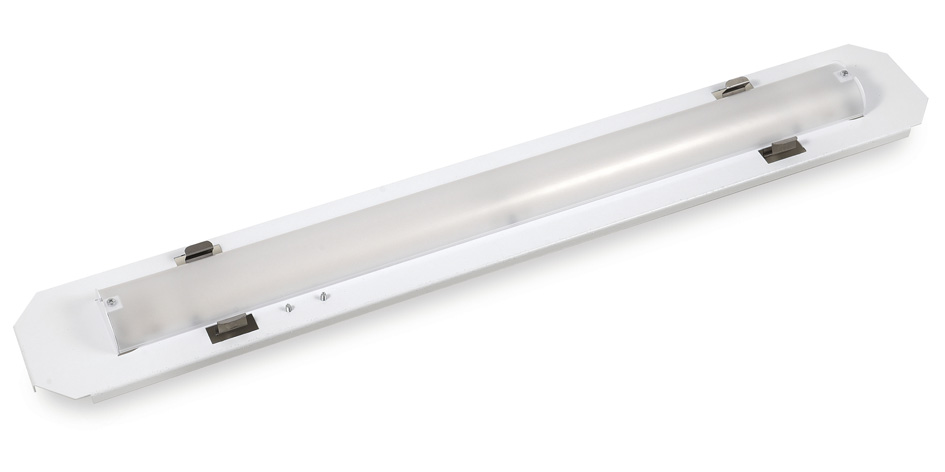

High efficiency LED retrofit kit for existing light fixtures equipped with T8 or T5 fluorescent linear tubes. LED boards and connectorized power supply already mounted on new internal gear tray. Quick and simple to install: no electric or mechanical modification, no use of special tools.
Lighting features
| LED Characteristics | SMD |
| Number of LEDs | 112 |
| Light Source Lumen | 3150 lm |
| Item Lumen | 2537 lm |
| Light Source Efficiency | 160 lm/W @85°C |
| Item Efficiency | 110 lm/W @85°C |
| Color Temperature | White 4000K |

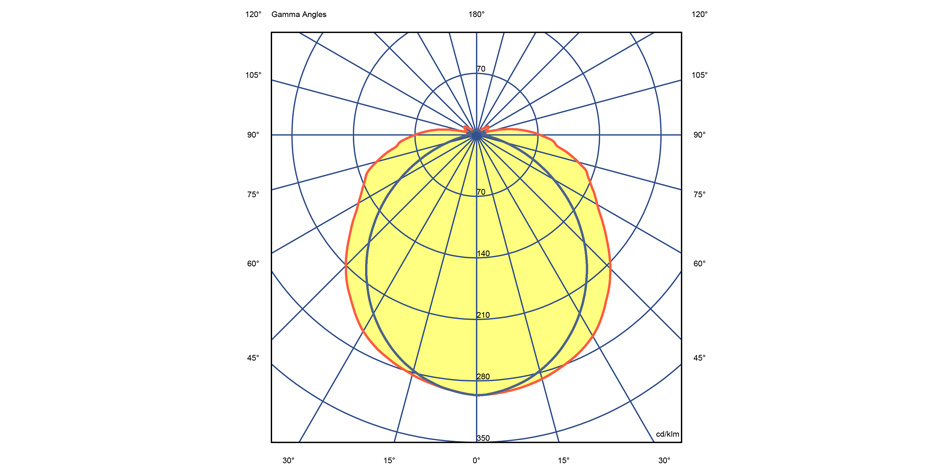

| Optics | 180° |
| Typical CRI | 92 |
| Minimum CRI | 90 |
| SDCM | 3 STEP |
| Photobiological Risk | RG0 |
| Luminous Flux Maintenance | L80 B10 >75.000 |
| Energy Efficiency Class |
|
Electrical features
| Input Voltage | 120/277V AC 50/60Hz |
| Total Absorbed Power | 23W |
| Power Factor | >0,95 |
| Control System | No |
| Driver Lifespan | 100.000 h with failure rate less than 10% |
| Driver | Included |
| Power Supply Type | Costant Current |
| Driver Output | 450mA |
| Driver Input | 108–305VAC 50/60Hz |
| Driver Protection | Mains surge 1kV; (L/N - PE) 2kV |
| Through-Wiring | Yes, in the lamp |
Mechanical features
| Housing material | Metal frame |
| Surface treatment | Painting |
| Housing color | White RAL 9016 |
| IP | IP20 |
| Operating ambient temperature | -25°C / +55°C |
| Storage ambient temperature | -25°C / +70°C |

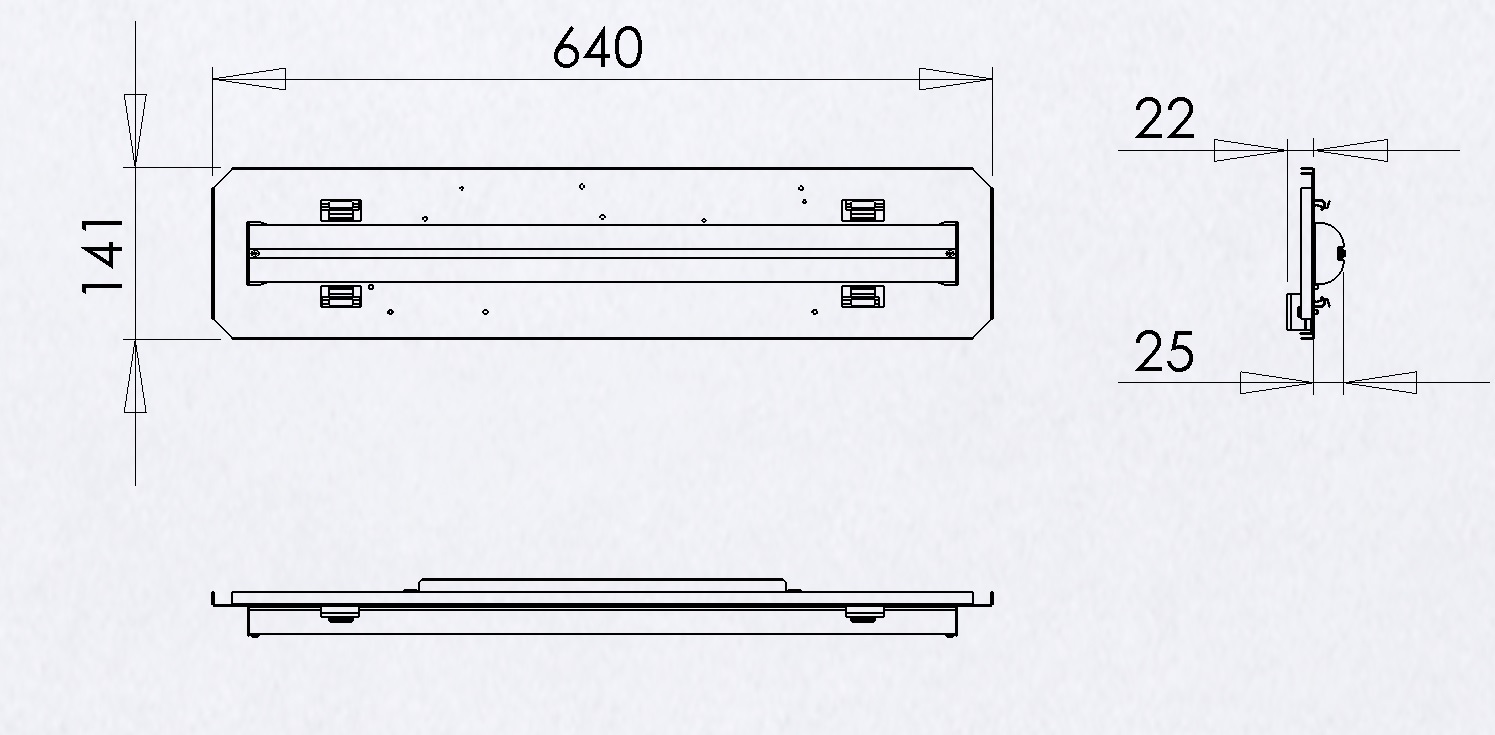

| Item Dimensions | 141x47x 640mm - 1,0kg |
Others
| International standard compliance | EN 60598-1; EN 60598-2-1; IEC 60092-306; IEC 60533; EN 62471 + TR62778; EN50581 |
| Eancode | 8019282557944 |
| Made In | Italy |
| Insulation Class |
|
