PEX
6807-54-812

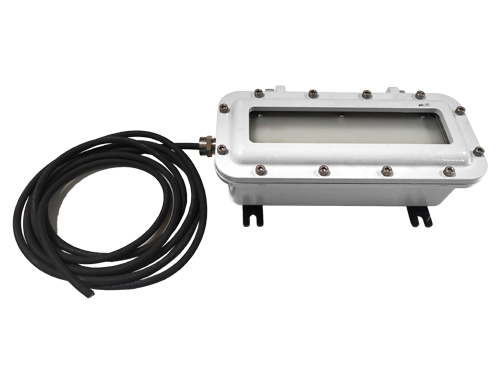

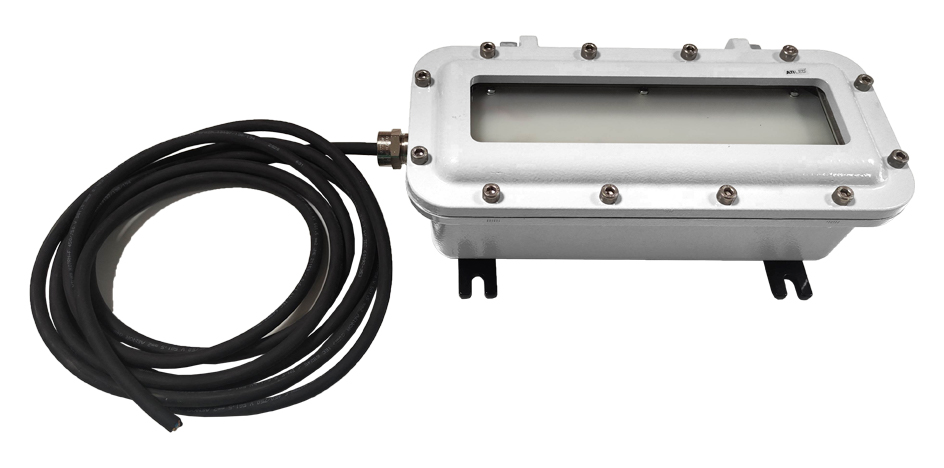

EX LED light fixture in Explosion proof housing
Installation hazardous areas: Zone 1/2 (Gases) - Zone 21/22 (Dusts)
Classifications GROUP II - Category 2G/2D
II 2 G Ex db IIB+H2 T5 Gb - II 2 D Ex tb IIIC T100°C Db
Lighting features
| LED Characteristics |
SMD
|
| Number of LEDs |
6
|
| Item Lumen |
422 lm
|
| Item Efficiency |
35 lm/W @85°C
|
| Color Temperature |
Green NVG Dominant Wavelength: >525nm <537nm
|

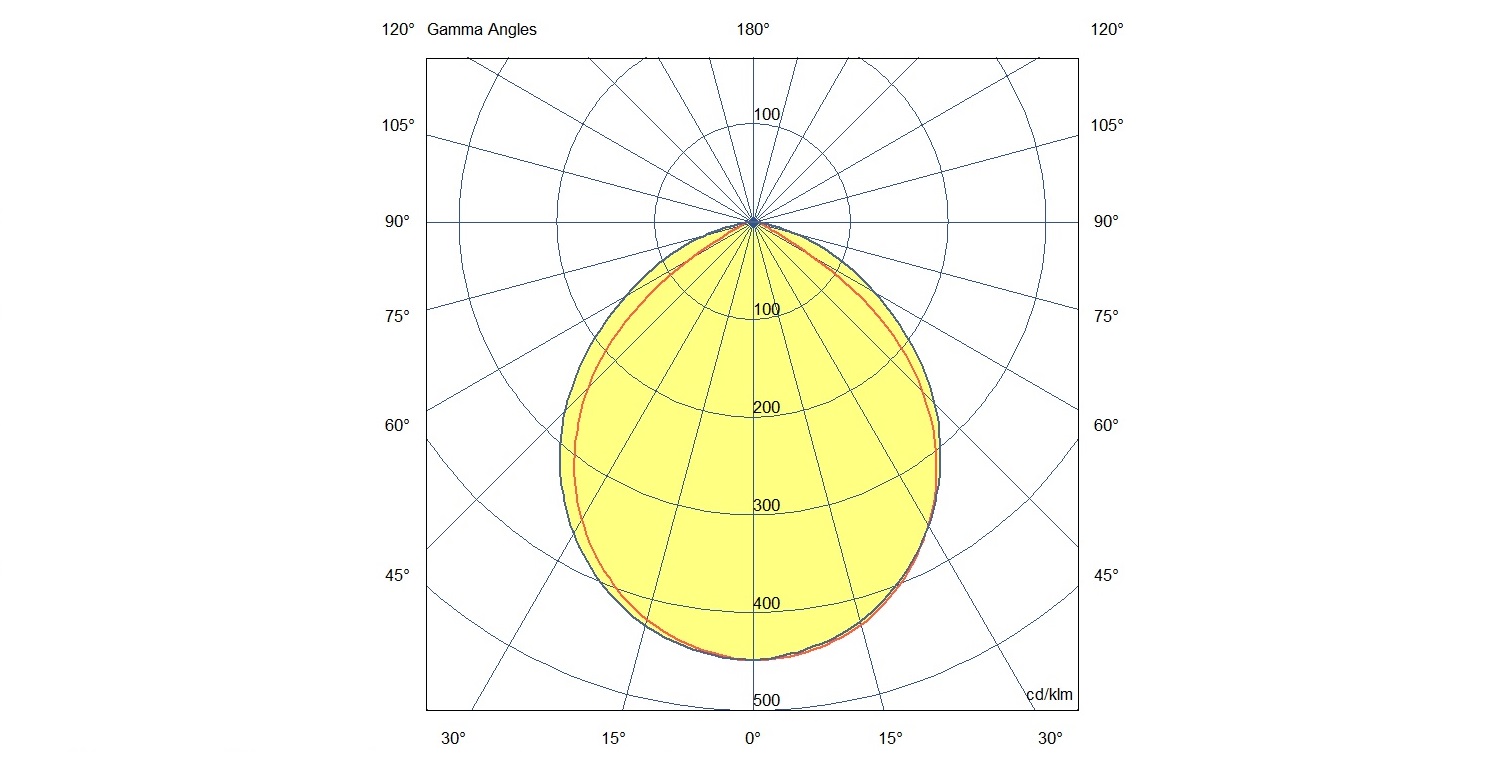

| Optics |
120°
|
| Luminous Flux Maintenance |
L70 B50 >80000
|
Electrical features
| Input Voltage |
100/240V AC 50/60Hz |
| Total Absorbed Power |
12W |
| Power Factor |
> 0,9 |
| Control System |
DALI |
| Driver Lifespan |
50000h |
| Driver |
Included |
| Power Supply Type |
Costant Voltage |
| Driver Output |
500mA |
| Driver Input |
90-305V~ 50/60Hz |
| Driver Protection |
Mains surge 2Kv |
| Through-Wiring |
No |
Mechanical features
| Housing material |
Marine grade copper free alluminium
|
| Surface treatment |
External epoxy powders
|
| Housing color |
White RAL 9010
|
| IP |
IP66
|
| Diffuser / Protective shield |
Hight temperature resistant borosylicate glass
|
| Mounting |
With painted aluminum brackets; fixing with 4 M10 screws
|
| Cable |
5m cable H07RN-F 5G1.5
|
| Operating ambient temperature |
-40°C / +55°C
|
| Storage ambient temperature |
-40°C / +85°C
|

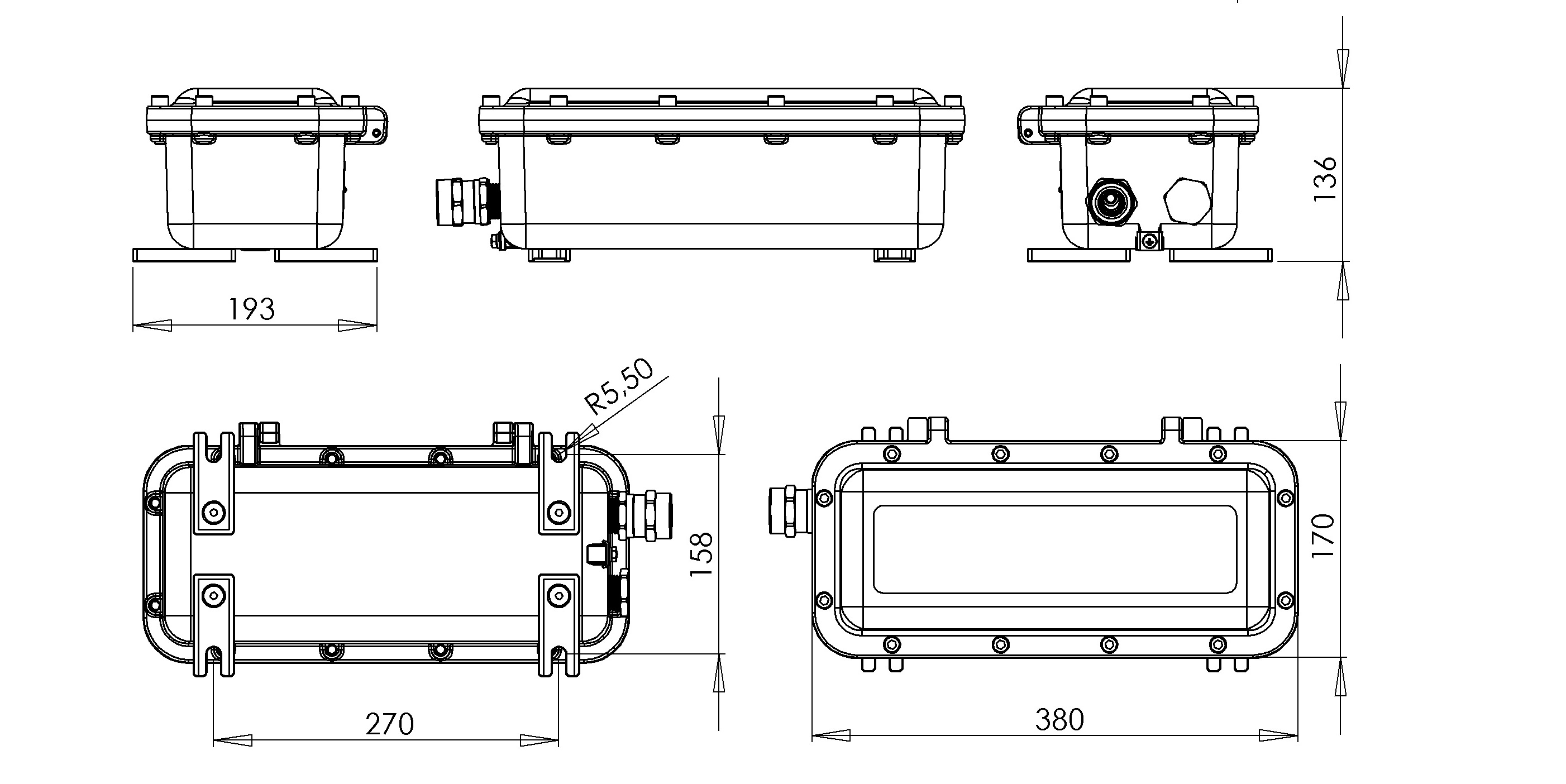

| Item Dimensions |
198x136x380mm - 8,6kg
|
Others
| Packaging Dimensions |
9.2kg
|
| International standard compliance |
EN 60598-1; EN 60598-2-1; IEC 60092-306; IEC 60533; EN 62471 + TR62778; EN50581; EN 60079-0; EN60079-1; EN60079-7; EN60079-28; EN60079-31
|
| Eancode |
8019282558866
|
| Made In |
Italy
|
| Insulation Class |
|
