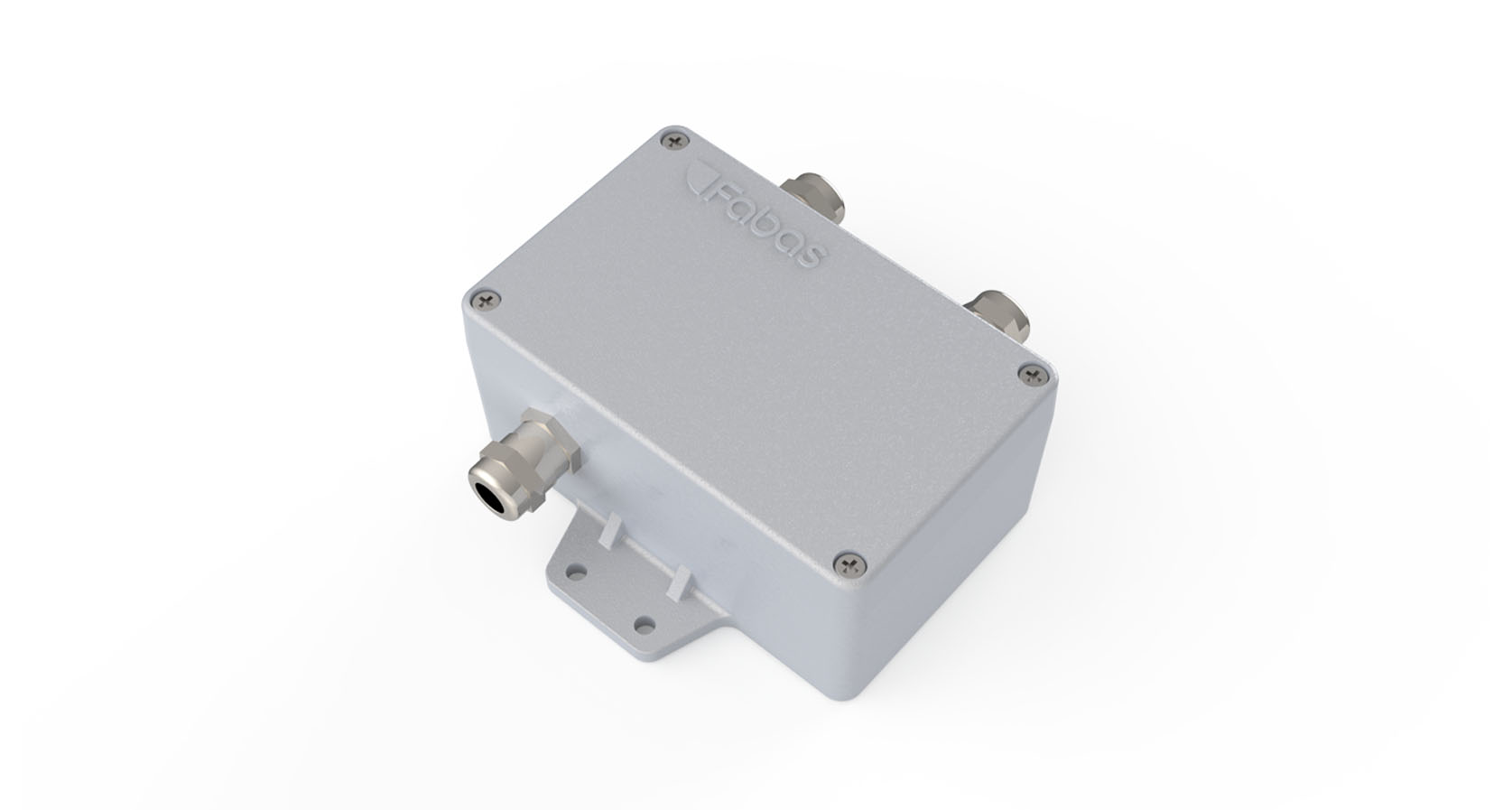

EBLAN NET JUNCTION BOX
6923-04-009
Electrical features
| Input Voltage | 15V DC |
| Total Absorbed Power | 1W |
| Through-Wiring | Yes, in the junction box |
Mechanical features
| Housing material | Die-cast aluminum copper free EN AB 44100 |
| Surface treatment | Polyester Painting |
| Housing color | Grey RAL 7040 |
| IP | IP66 |
| IK | 10 |
| Cable gland, cable Ø min-max | n°3 PG M16x1.5 Øcable min 5mm - max 10mm |
| Operating ambient temperature | -40°C / +85°C |
| Storage ambient temperature | -40°C / +85°C |

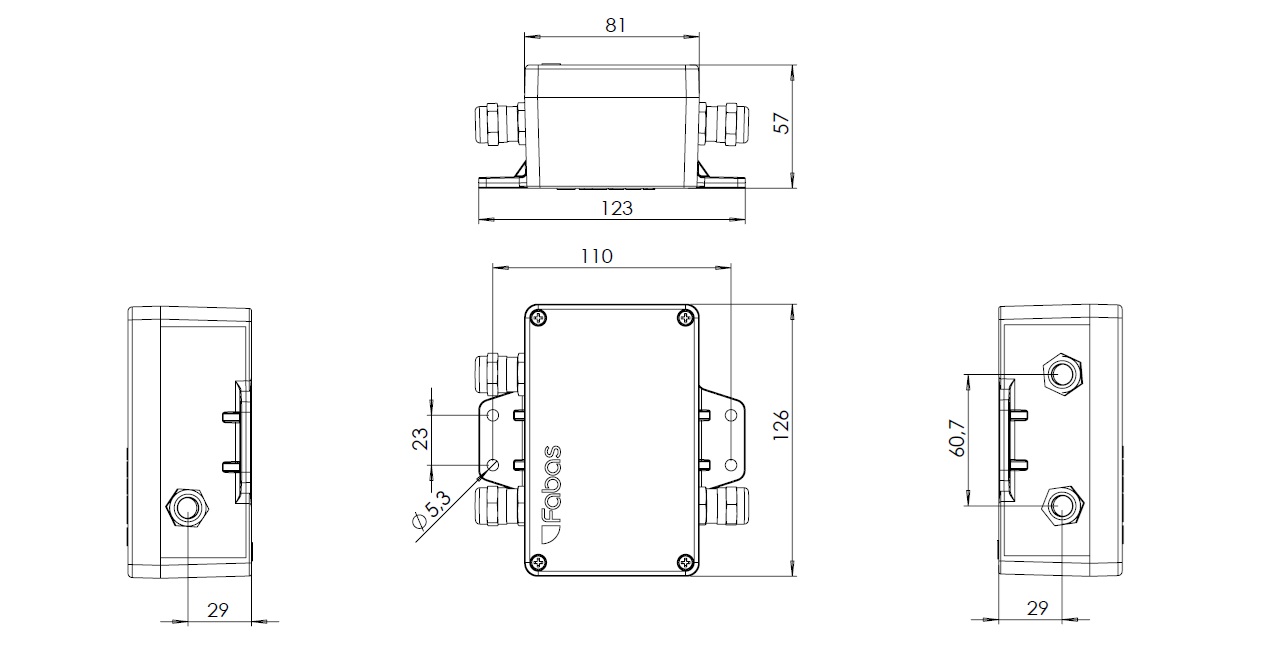

| Item Dimensions | 126x123x81mm - 0,8kg |
Others
| Packaging Dimensions | 0.8kg |
| Eancode | 8019282572619 |
| Made In | Italy |
| Insulation Class |
|
