EBLAN
6923-04-002

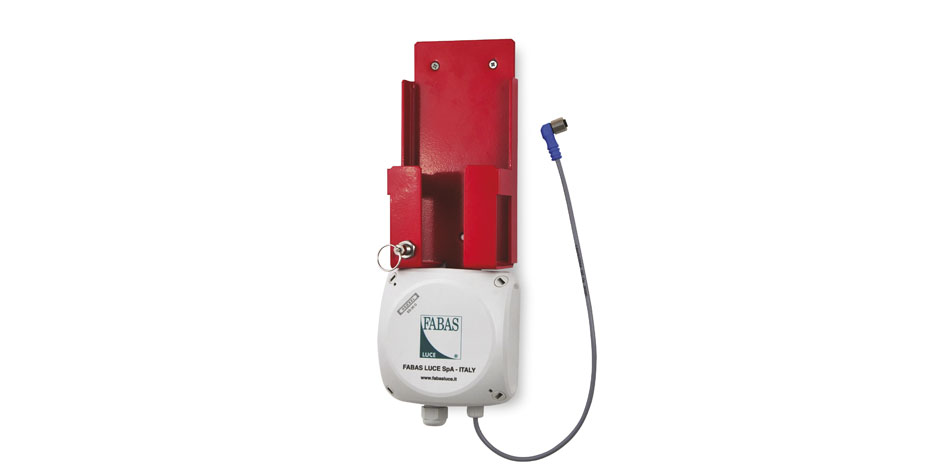

Wall mounting bracket with electronic power unit box and connectorized cord for lantern recharge.
NATO Stock Number - NSN 6130-15-031-9959
Electrical features
| Input Voltage |
100/240V AC 50/60Hz |
| Total Absorbed Power |
15W |
| Power Supply Type |
Costant Voltage |
| Driver Output |
15VDC |
| Driver Protection |
Mains surge 1kV |
| Through-Wiring |
No |
Mechanical features
| Housing material |
Metal frame
|
| Surface treatment |
Polyester Painting
|
| Housing color |
Red RAL 3001
|
| IP |
IP66
|
| IK |
09
|
| Shock proof MIL-S 901D |
SI
|
| Cable gland, cable Ø min-max |
n°1 PG M20x1.5, Øcable min 6mm - max 12mm
|
| Operating ambient temperature |
-20°C / +55°C
|
| Storage ambient temperature |
-40°C / +80°C
|

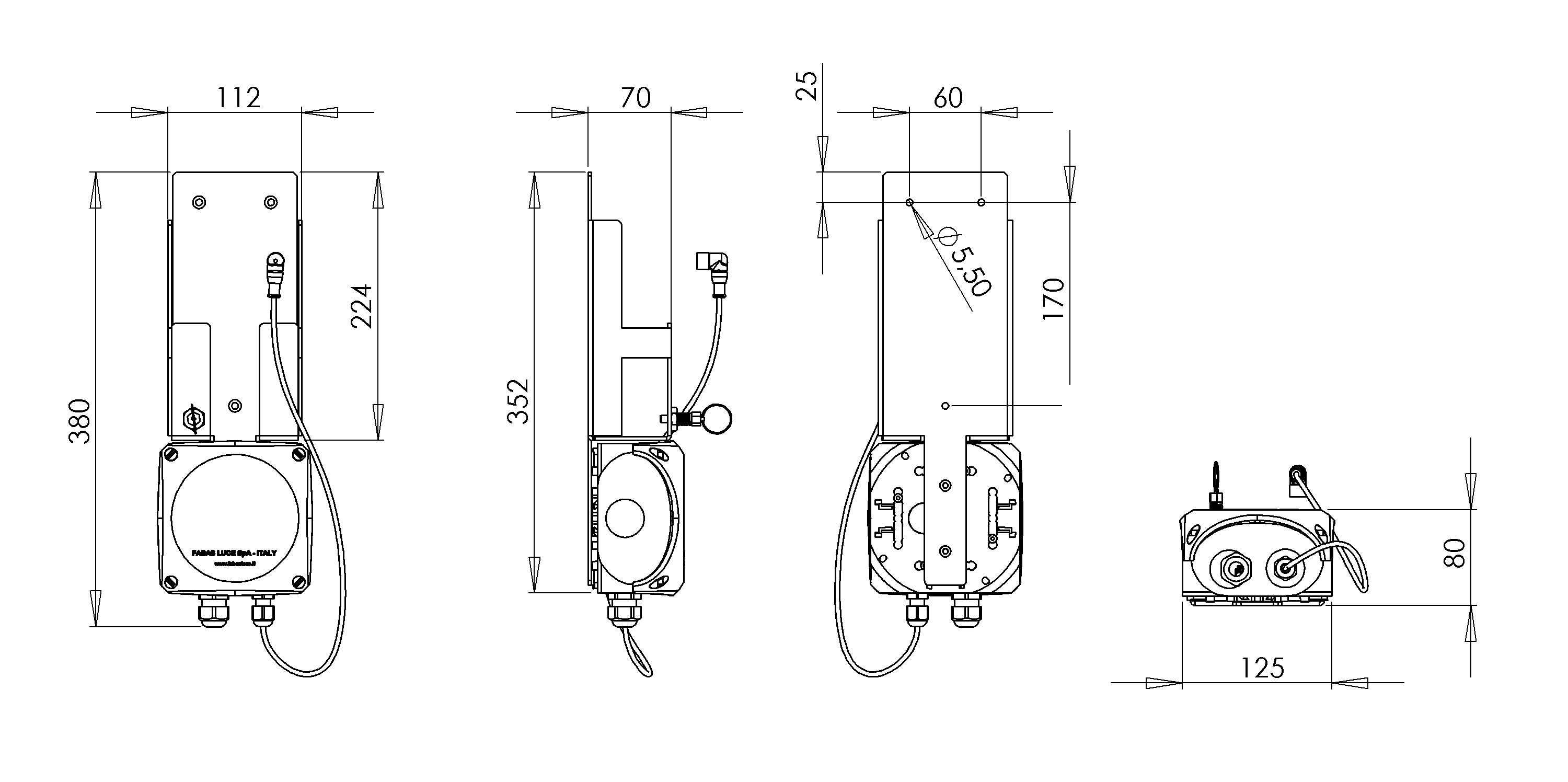

| Item Dimensions |
125x80x380mm - 1,5kg
|
Others
| Packaging Dimensions |
170x130x400mm - 2kg
|
| International standard compliance |
IEC 60533; IEC60092-306
|
| Eancode |
8019282519355
|
| Made In |
Italy
|
| Insulation Class |
|
